Inspection Procedure 13

PROBABLE CAUSE CHART

No diagnostic trouble codes (Does not shift) Probable cause
If shifting does not occur while driving and no diagnostic trouble codes are output, the cause is probably a malfunction of the inhibitor position switch, or ECM.
  • Malfunction of the inhibitor switch
  • Malfunction of the ECM

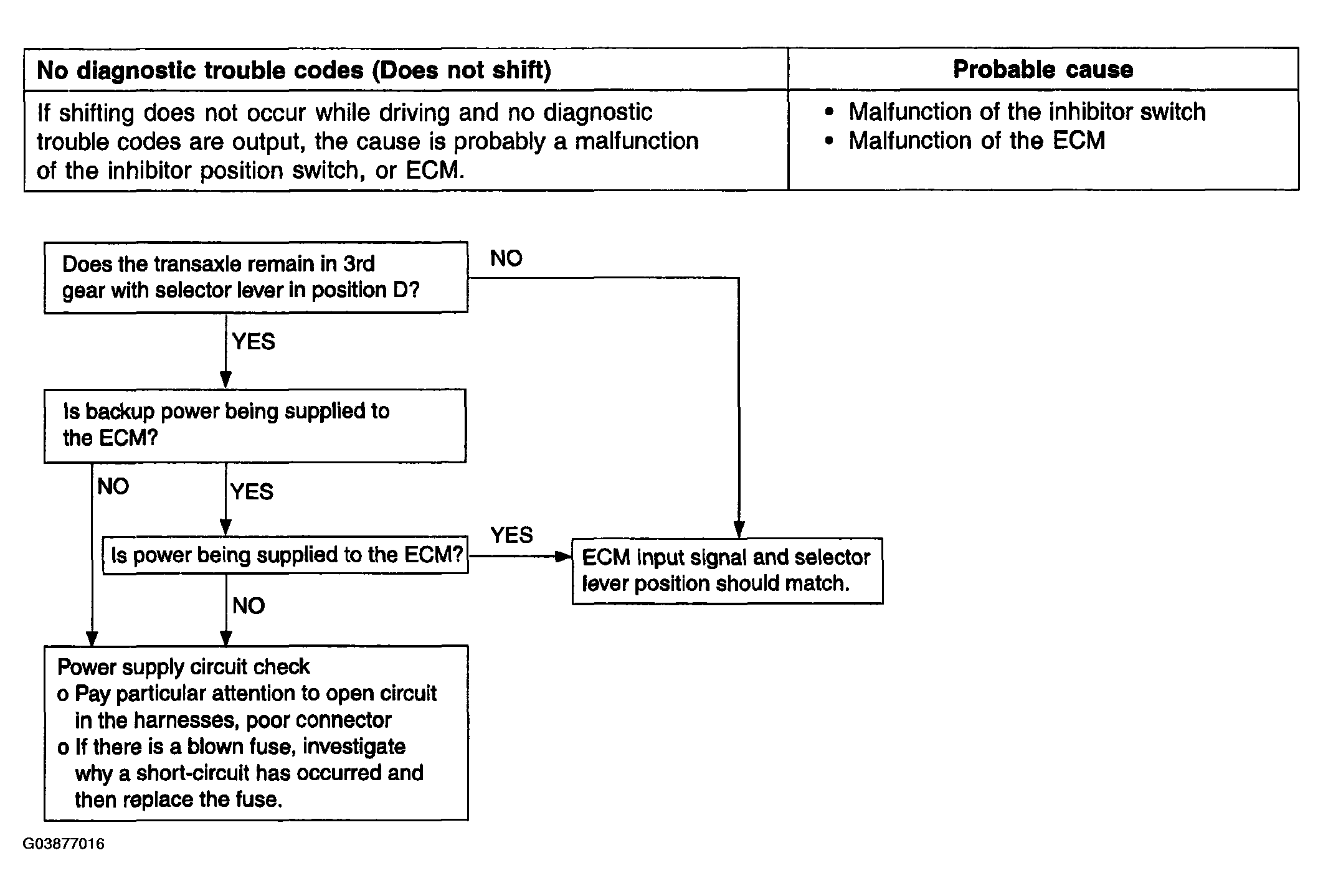

Fig 1: Inspecting Trouble Codes Flow Chart
G03877016Courtesy of KIA MOTORS AMERICA, INC.
