Inspection Procedure 12

PROBABLE CAUSE CHART

Some points (Displaced shifting points)	Probable cause
If some of the shift points are displaced while driving, the cause is probably a malfunction of the valve body, or it is related to control and is not an abnormality.	Malfunction of the valve body

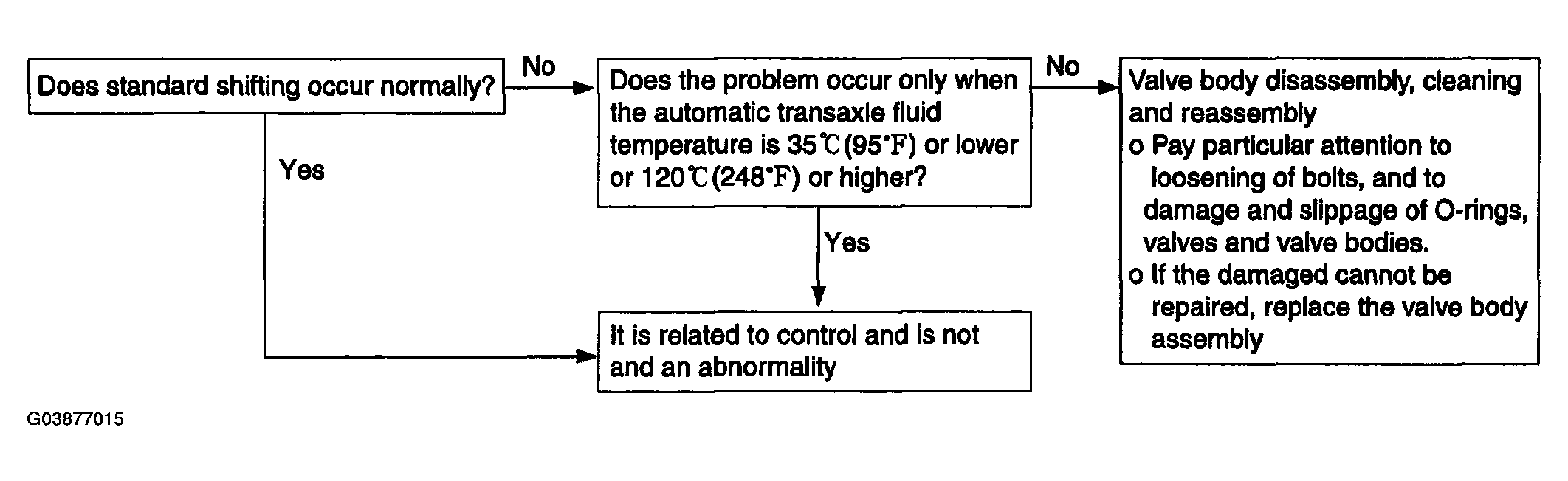

Fig 1: Inspecting Shifting Points Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
