Inspection Procedure 11

PROBABLE CAUSE CHART

All points (Displaced shifting points)	Probable cause
If all shift points are displaced while driving, the cause is probably a malfunction of the output shaft speed sensor, TPS or of a solenoid valve.	Malfunction of the output shaft speed sensor Malfunction of the throttle position sensor Malfunction of each solenoid valve Abnormal line pressure Malfunction of the valve body Malfunction of the ECM

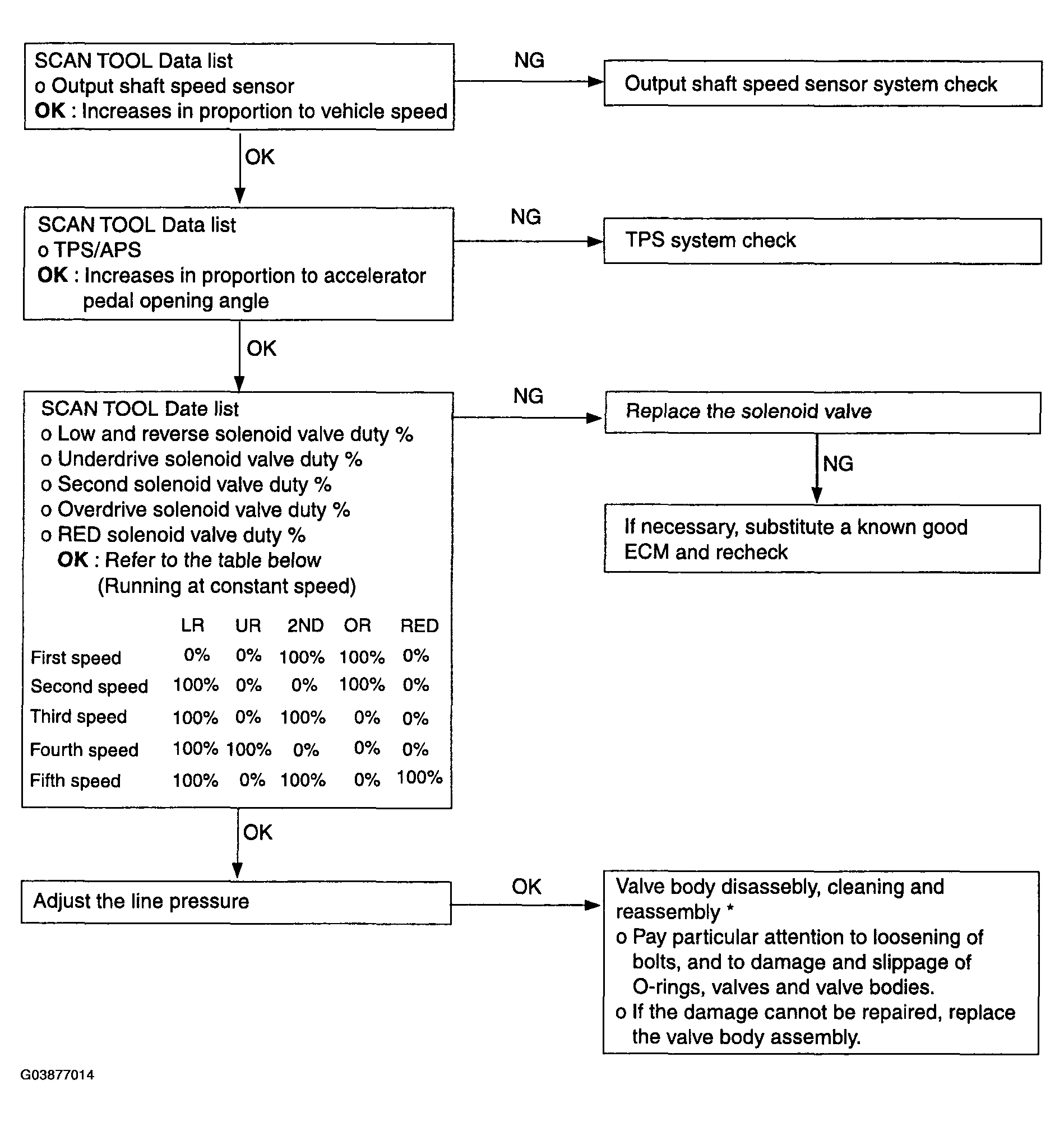

Fig 1: Inspecting Shifting Points Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
