Component Inspection

Disconnect TPS connector and measure resistance between terminals 1 and 3 of the TPS connector.
Specification: Approx. 3.5~6.5Ω ( with throttle valve fully closed) at 20°C(68°F)
With still TPS connector disconnected, measure resistance between terminals 2 and 3 of the TPS1 connector.
With still TPS connector disconnected, measure resistance between terminals 3 and 4 of the TPS2 connector.
Operate the throttle valve slowly from the idle position to the full open position and verify that the TPSI's resistance changes smoothly in proportion with the throttle valve opening angle. And the TPS2's resistance changes smoothly in inverse proportion with the throttle valve opening angle.
Specification: TPSI's resistance changes smoothly in proportion with the throttle valve opening angle.

Specification: TPS2's resistance changes smoothly in inverse proportion with the throttle valve opening angle.

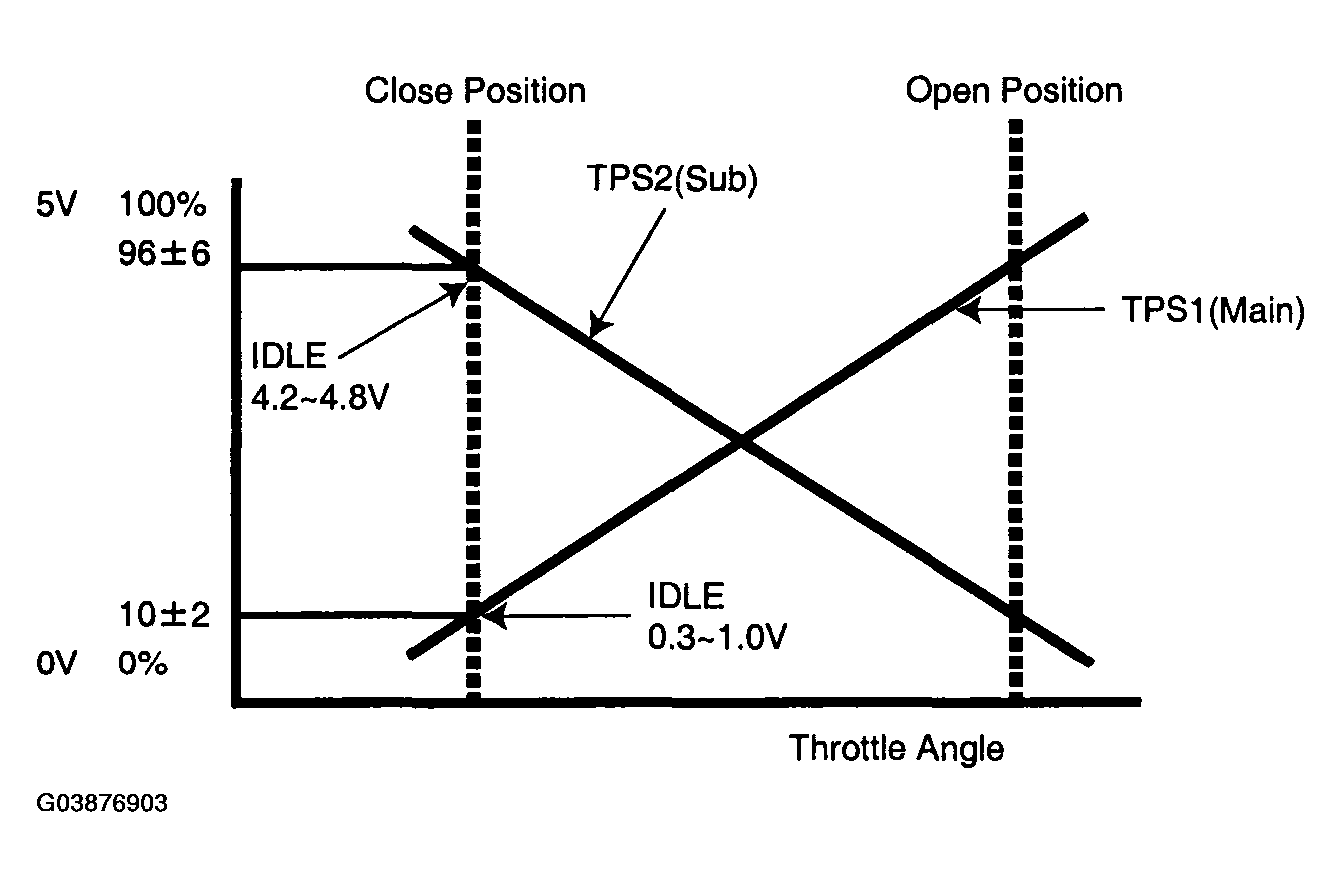

Fig 1: Throttle Angle Graph
Courtesy of KIA MOTORS AMERICA, INC.
Are the TPS signals within specifications?
YES
- Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure. If PCM needs to be replaced, do "ETS Initialization" after it is replaced.
NO
- Substitute with a known-good TPS and check for proper operation.If the problem is corrected, replace TPS and then do "ETS Initialization". And go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE:
  Procedure of ETS Initialization
  1. Erase the trouble codes on PCM
  2. Turn the ignition key on less than 1 second and turn it off(Do not start the engine)
  3. Turn the ignition key off and keep this condition until the main relay is turned off.(It will takes 10 second)
  4. Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM
