Components Location

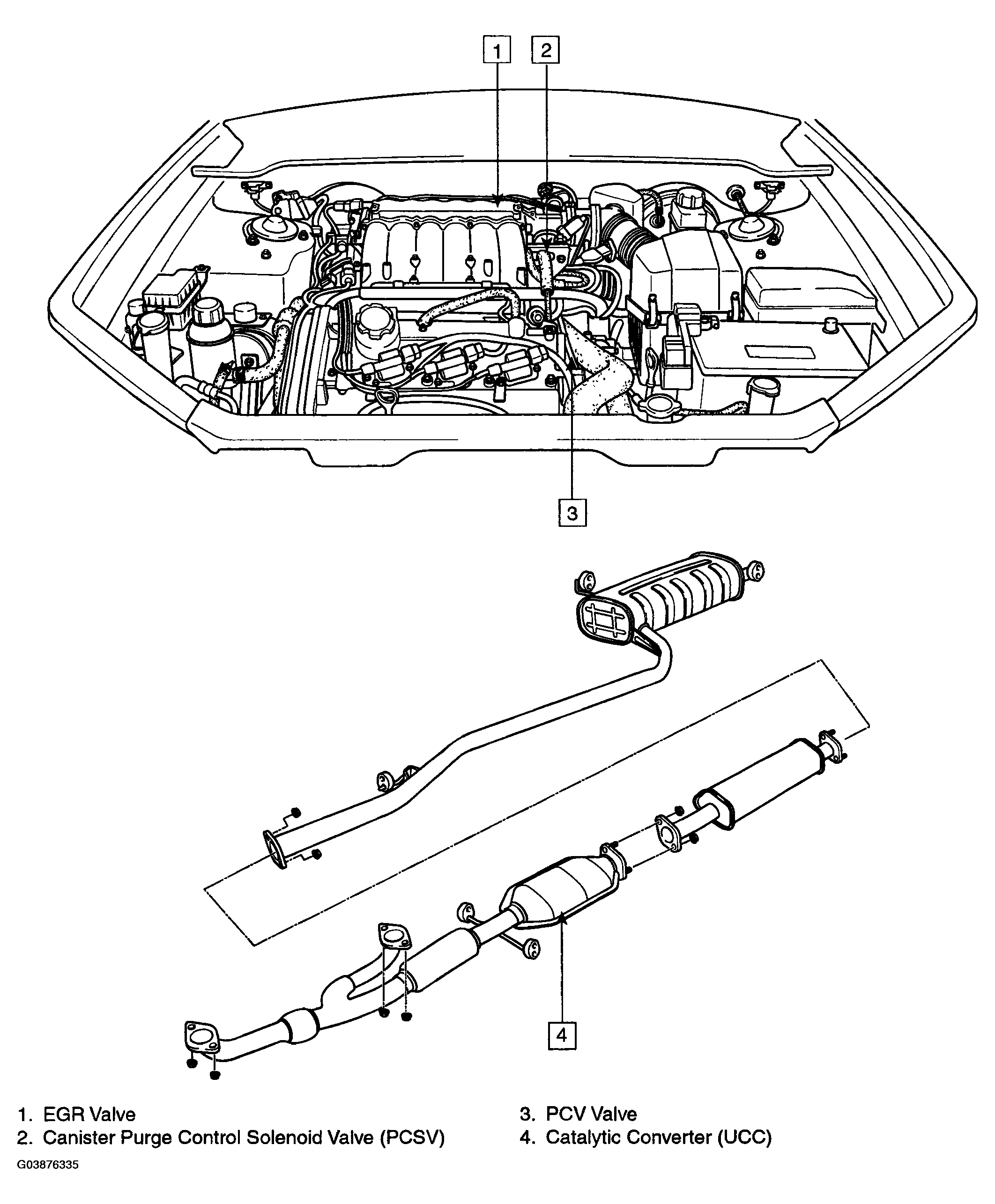

Fig 1: Identifying Emissions Control System Components Location (1 Of 2)
G03876335Courtesy of KIA MOTORS AMERICA, INC.

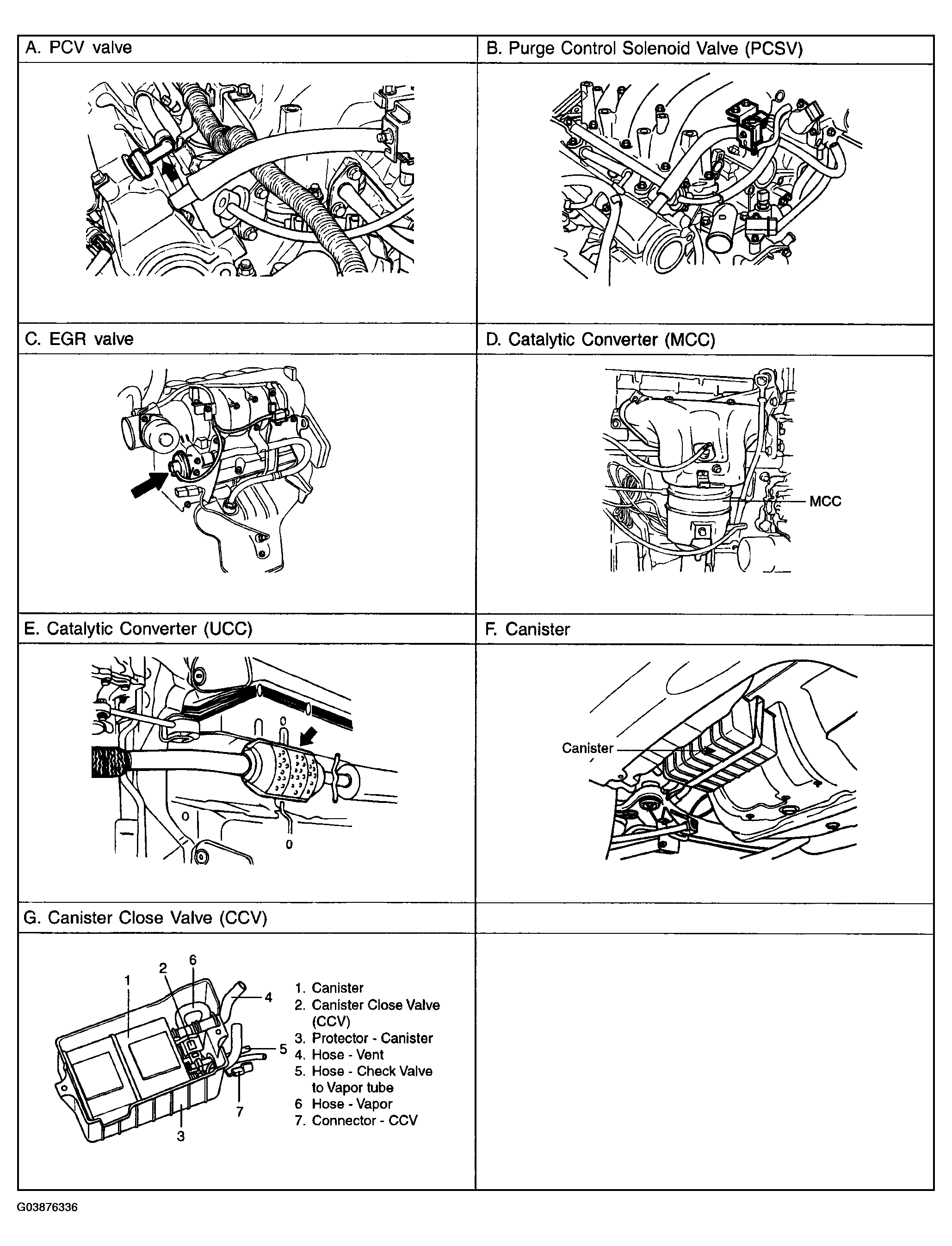

Fig 2: Identifying Emissions Control System Components Location (2 Of 2)
G03876336Courtesy of KIA MOTORS AMERICA, INC.
