Home
>>
Kia
>>
2004
>>
Spectra LS, 1.8 2, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Troubleshooting
>>
Chart 4
Chart 4

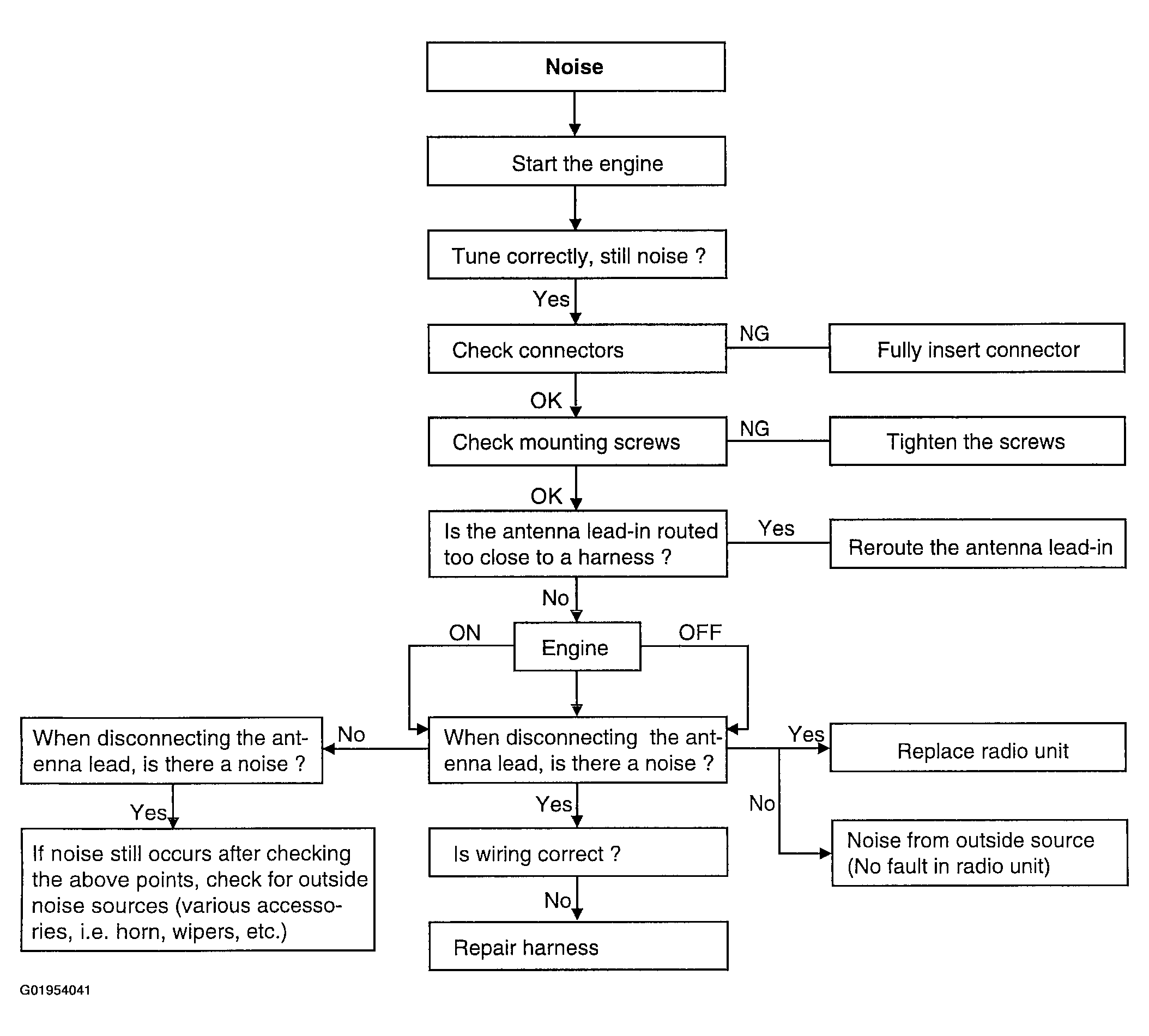

Fig 1: Radio Noise
Courtesy of KIA MOTORS AMERICA, INC.

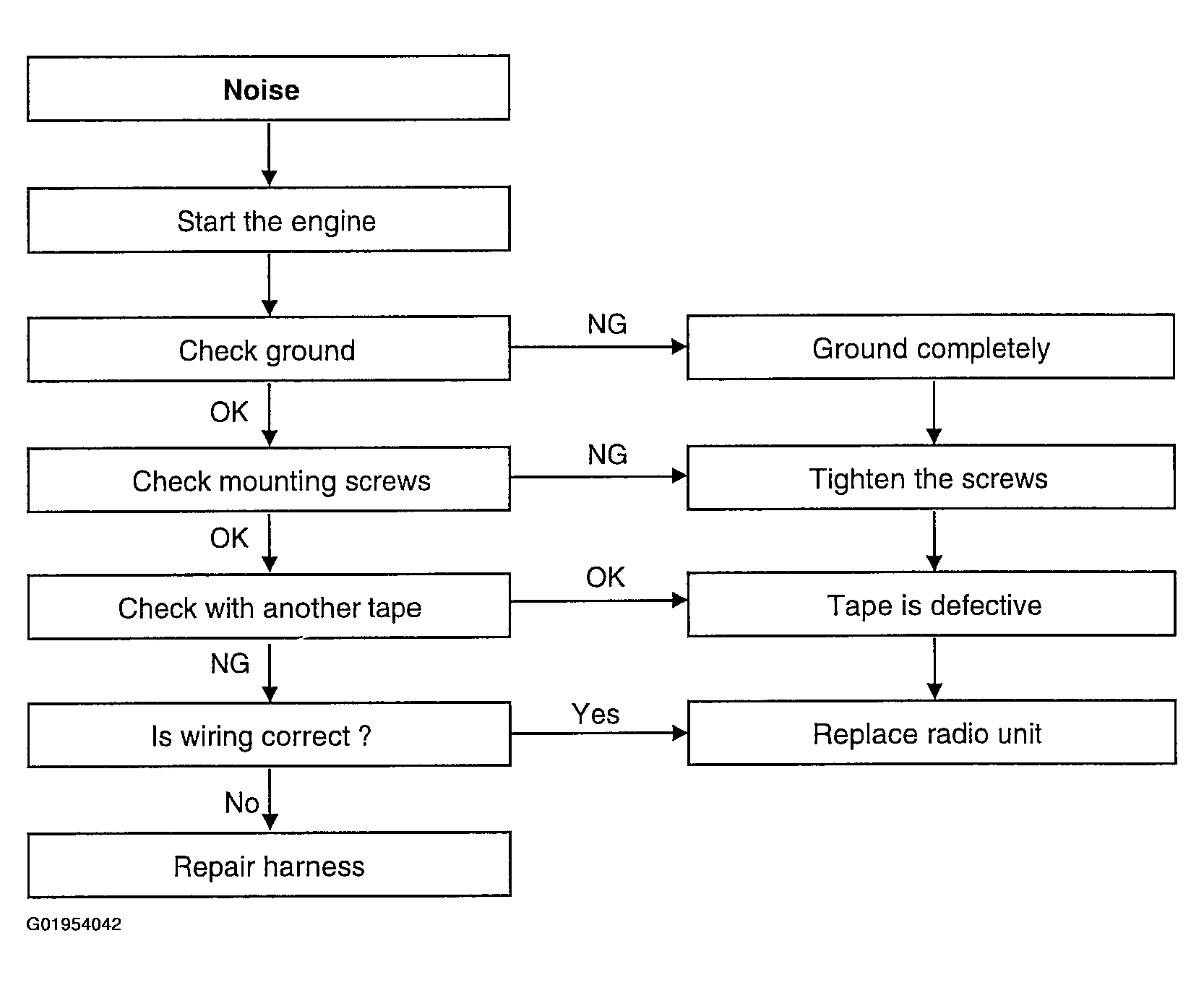

Fig 2: Tape Noise
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
