Removal & Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center facia panel (A) by pulling it.

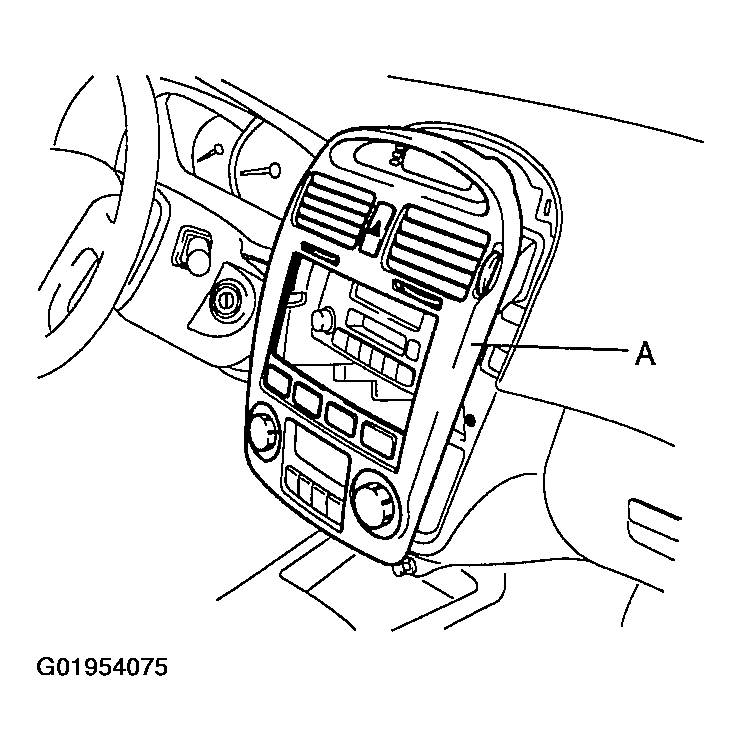

    Fig 1: Removing Center Facia Panel
    G01954075Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the connectors.
  4. Remove the mounting screws then remove the audio unit assembly.

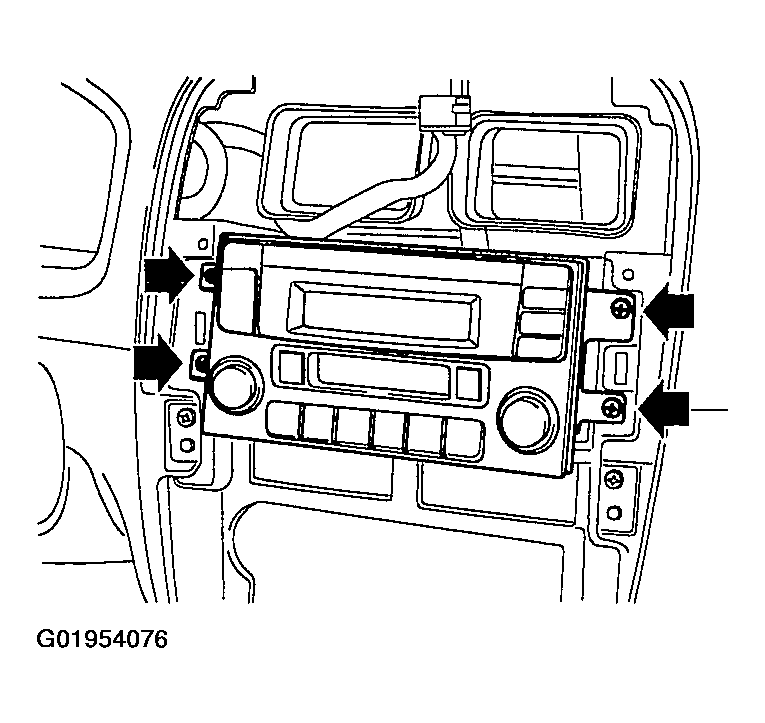

    Fig 2: Removing The Mounting Screws
    G01954076Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
