Hood Switch Inspection

  1. Disconnect the 1P connector from the hood switch.
  2. Check for continuity between the terminals and ground according to the table.

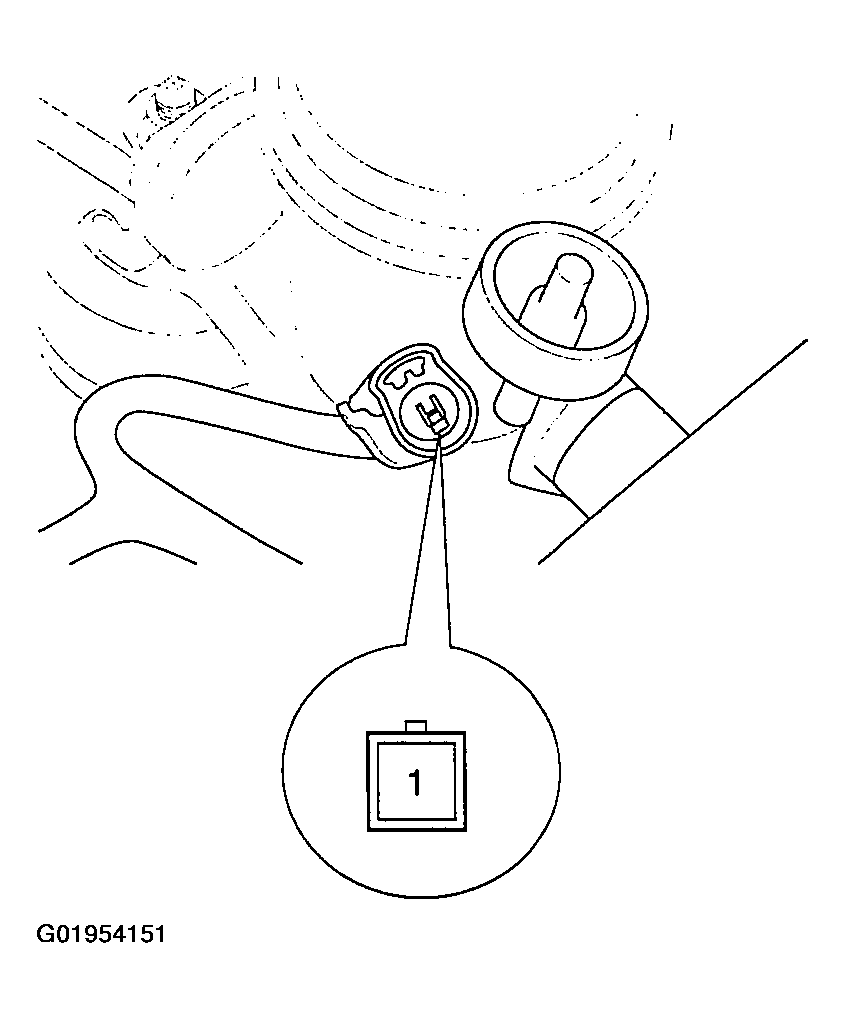

    Fig 1: Illustrating Hood Switch Connector
    G01954151Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Switch Continuity Chart
    G01954152Courtesy of KIA MOTORS AMERICA, INC.
