Home >> Kia >> 2004 >> Spectra LS, 1.8 1, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Lower Arm >> Components

Lower Arm: Components

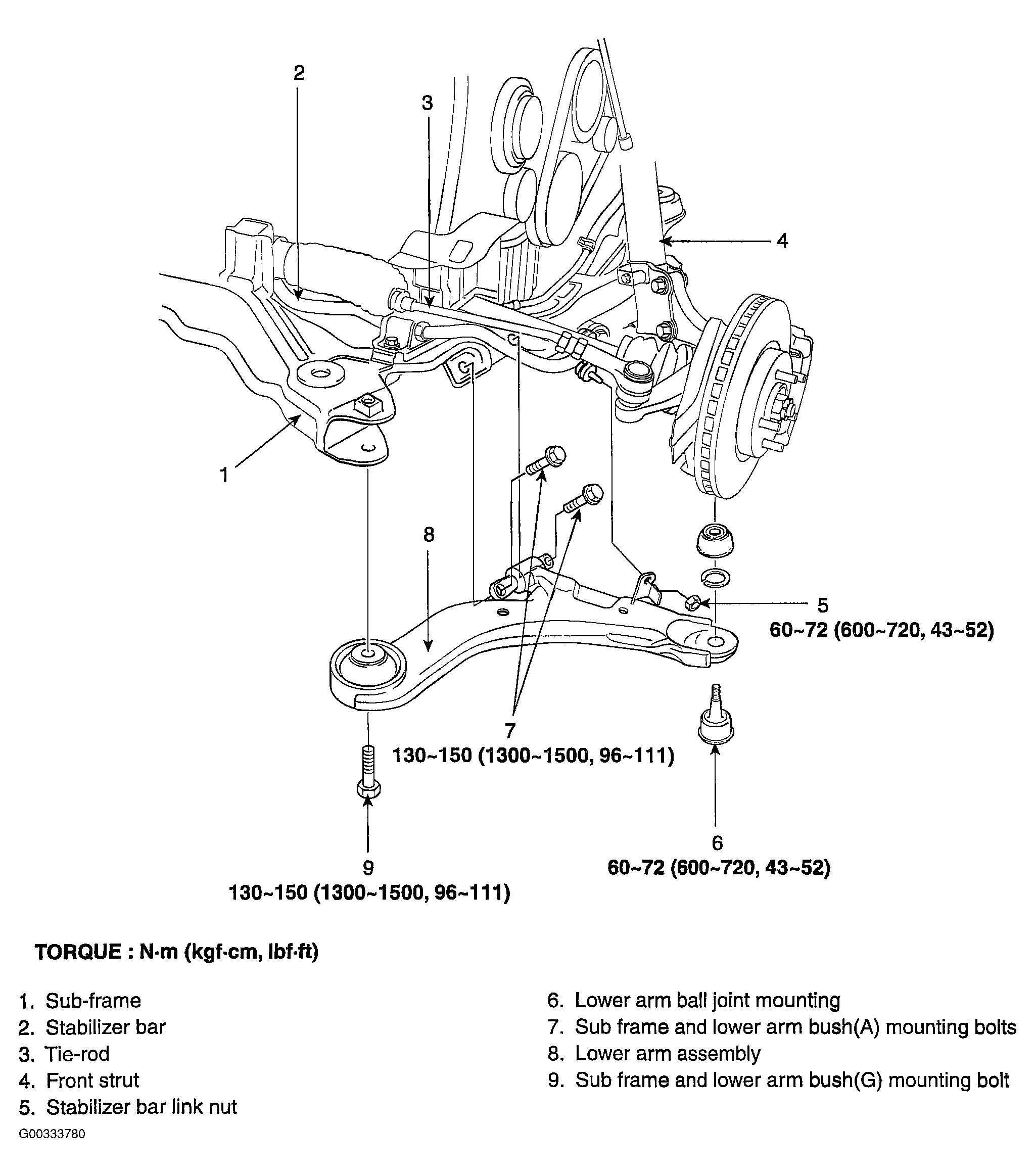

Fig 1: Identifying Lower Arm Components

G00333780

Courtesy of KIA MOTORS AMERICA, INC.
