Home >> Kia >> 2004 >> Spectra LS, 1.8 1, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Stabilizer Bar >> Components

Front Stabilizer Bar: Components

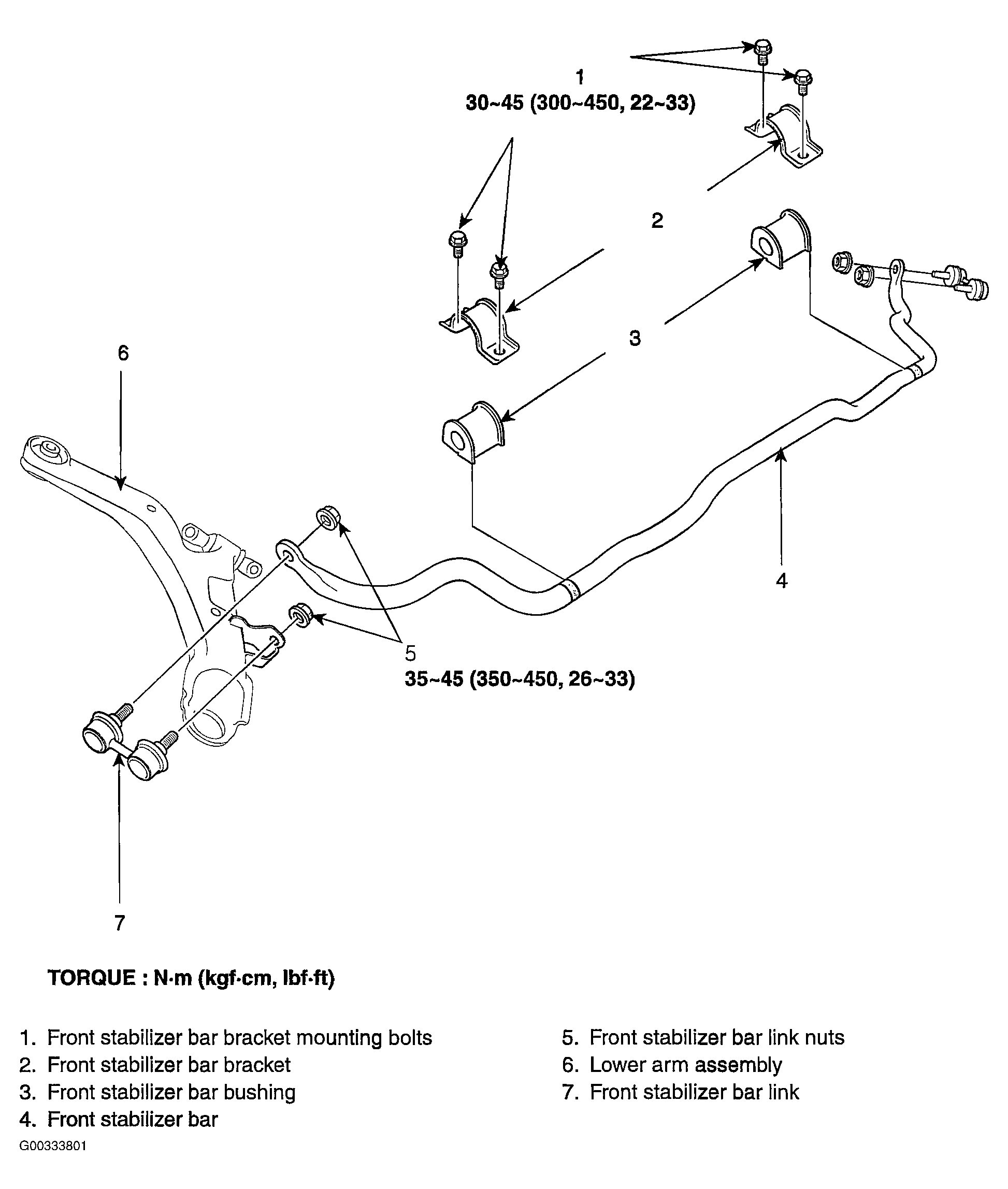

Fig 1: Identifying Front Stabilizer Bar Components

G00333801

Courtesy of KIA MOTORS AMERICA, INC.
