Home >> Kia >> 2004 >> Spectra LS, 1.8 1, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle >> Front Hub/Knuckle >> Components

Front Hub/Knuckle: Components

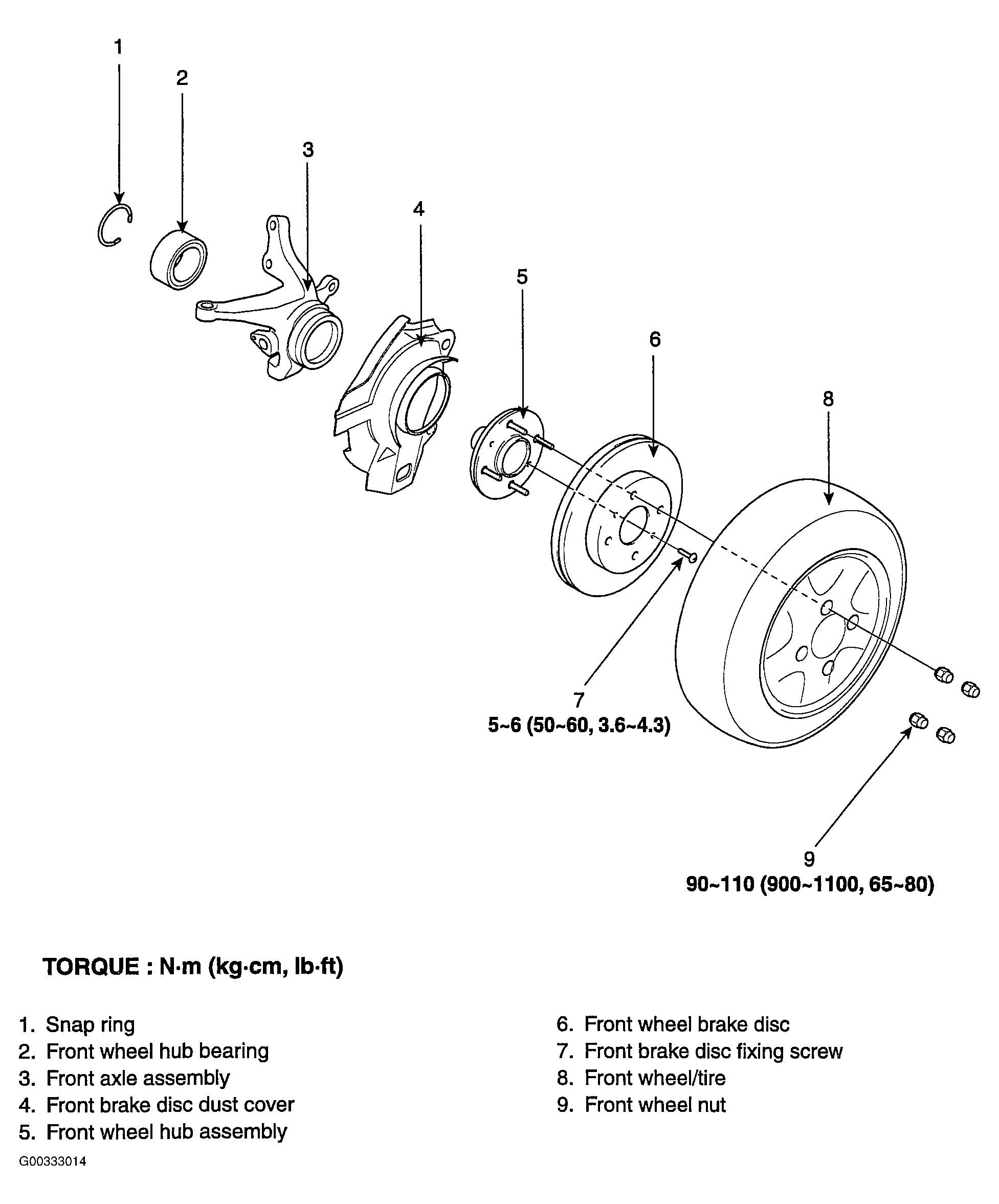

Fig 1: Identifying Front Hub/Knuckle Components

G00333014

Courtesy of KIA MOTORS AMERICA, INC.
