Power Steering Gear Box: Removal

Drain the power steering fluid.
Remove the air intake hose assembly (A).

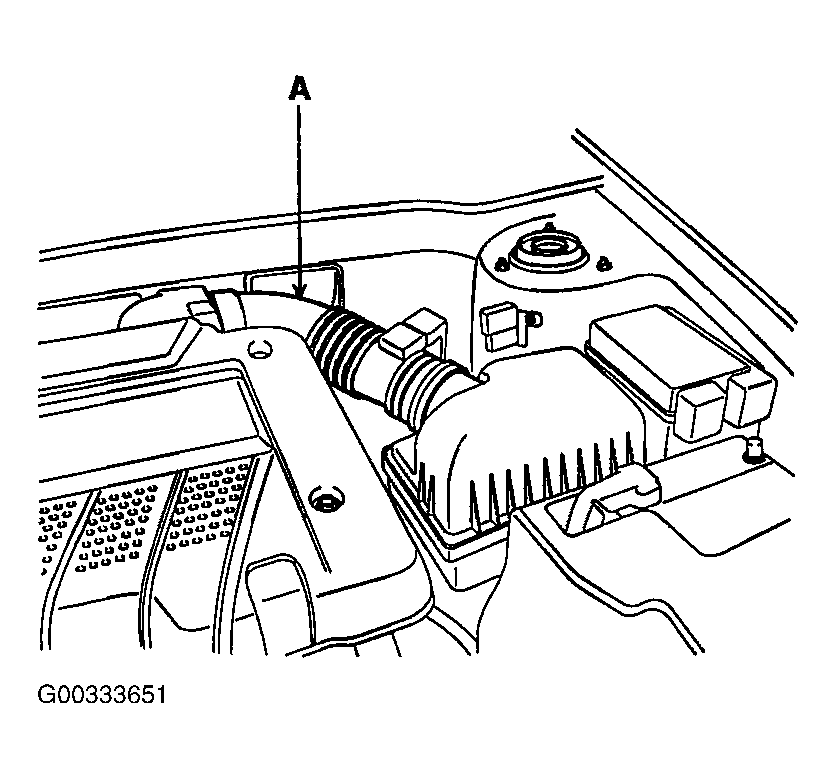

Fig 1: Identifying Air Intake Hose Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pressure tube and the return tube fittings from the gear box.
After removing the bolt (A), disconnect the universal joint assembly (B) from the gear box inside the passenger compartment.

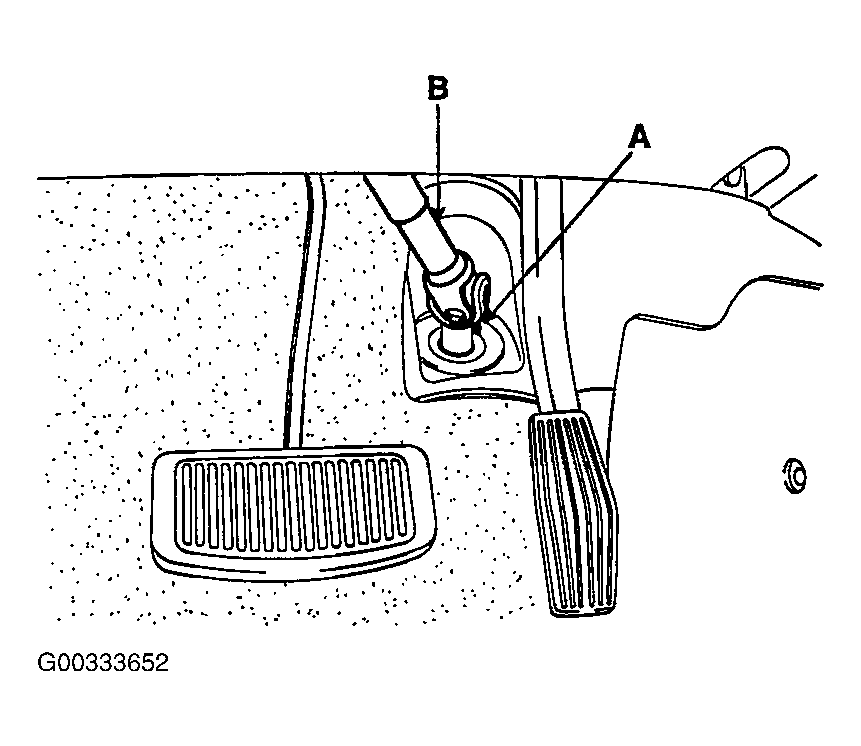

Fig 2: Identifying Universal Joint Assembly-To-Gear Box Connection
Courtesy of KIA MOTORS AMERICA, INC.
Raise up the vehicle.
Remove the front tires (RH/LH).
After removing the split pin, disconnect the tie rod (A) from the knuckle (B) by using the special tool (09568-34000).

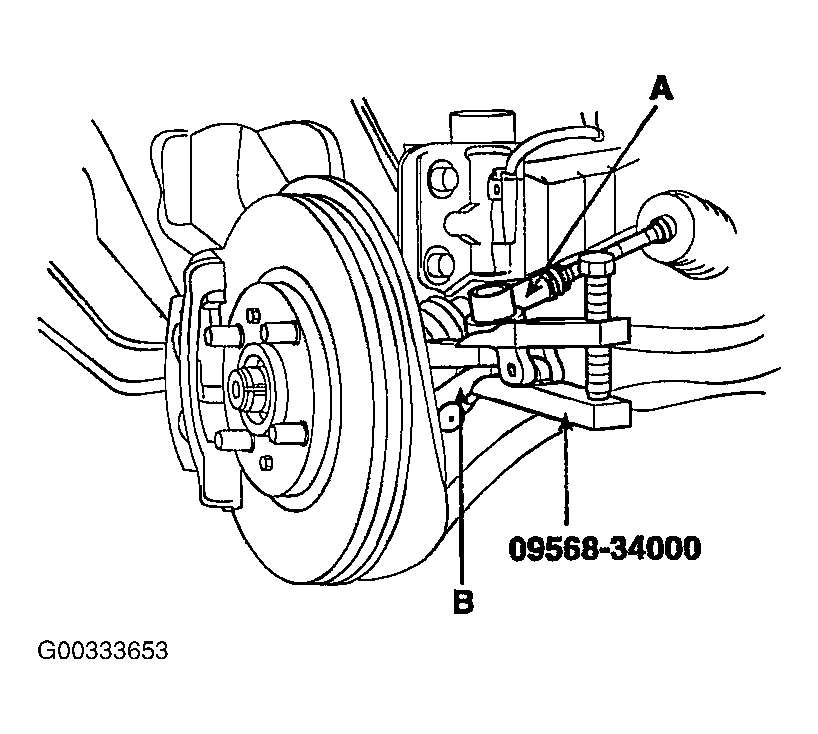

Fig 3: Disconnecting Tie Rod From Knuckle
Courtesy of KIA MOTORS AMERICA, INC.
Remove the dust cover (C) of the stabilizer bar (A) (LH side) mounting bracket (B).

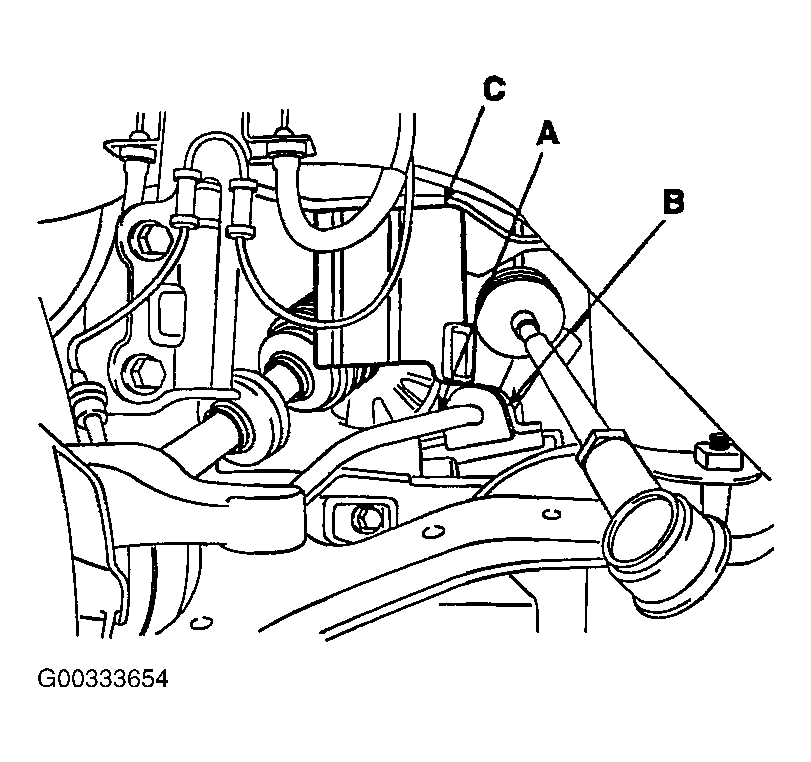

Fig 4: Identifying Stabilizer Bar Mounting Bracket & Dust Shield
Courtesy of KIA MOTORS AMERICA, INC.
Remove the mounting bolt and mounting clamp (A) of power steering gear box, and also remove the clamp (B) holding the pressure tube and the return tube.

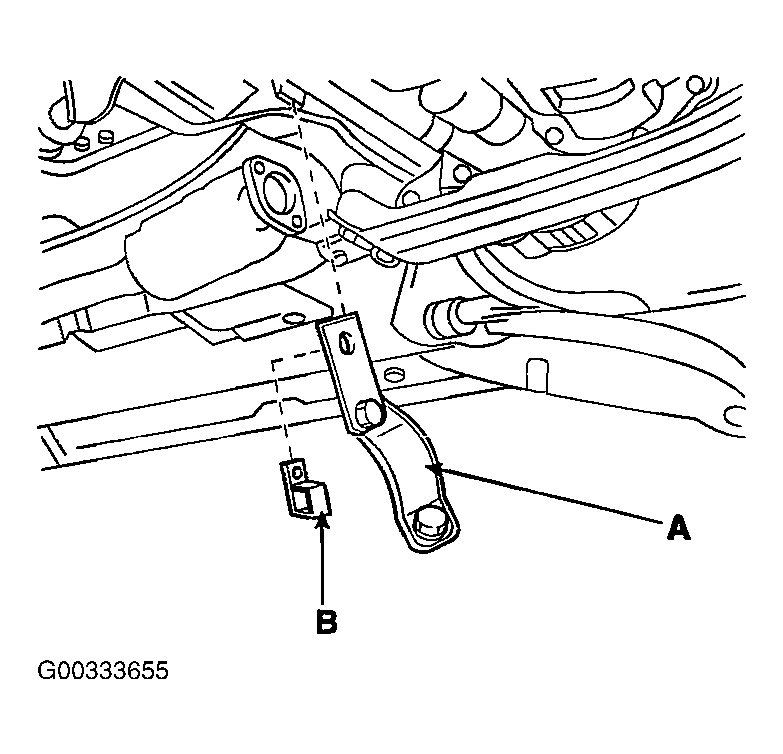

Fig 5: Identifying Power Steering Gear Box Mounting Clamp
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the gear box, pull it out carefully and slowly so as not to cause damage to the boots (B).

Pull the power steering gear box assembly (A) toward the left side of the vehicle.

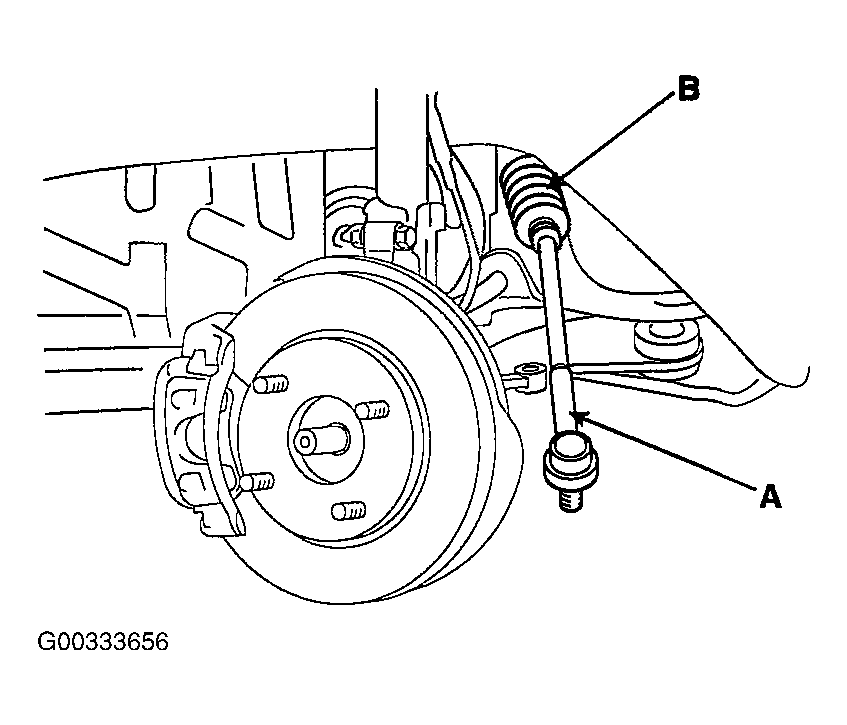

Fig 6: Identifying Power Steering Gear Box Boots

Courtesy of KIA MOTORS AMERICA, INC.
