New Condition Occurs After An Alarm

When all the doors are opened and UNLOCKed after the doors were closed and LOCKed after an alarm, the horn alarm, hazard lamps and start inhibitor will engage again.

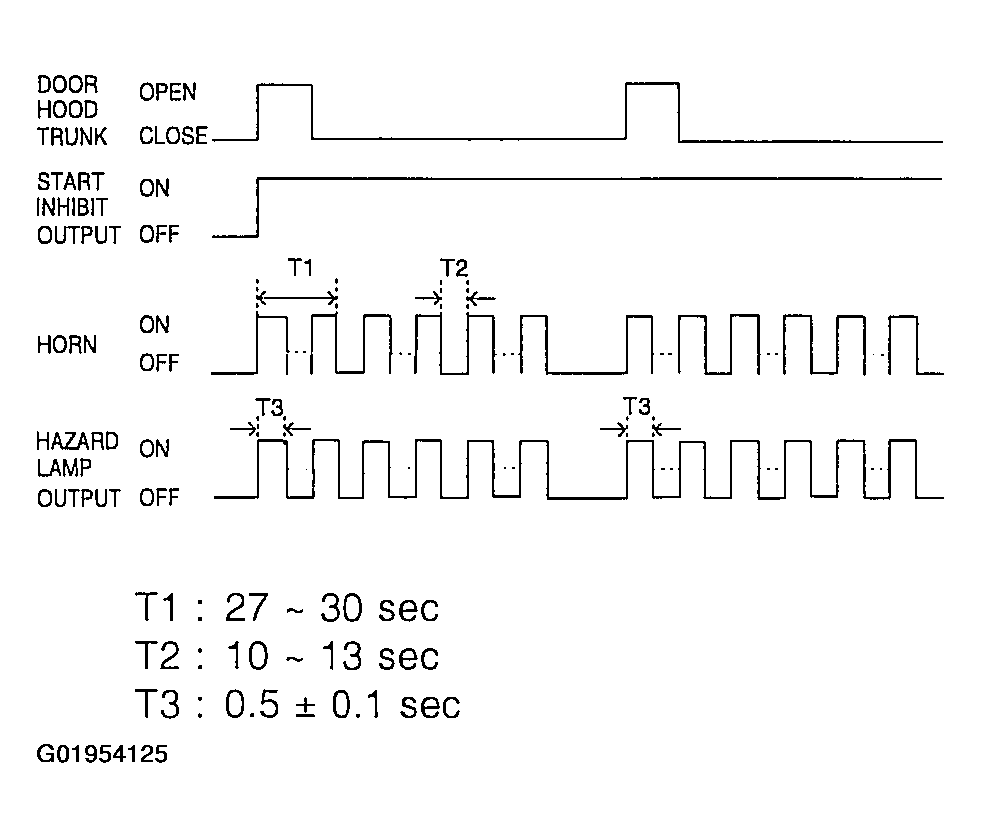

Fig 1: Illustrating New Condition Function Chart
Courtesy of KIA MOTORS AMERICA, INC.
If an alarm occurs due to an open point of entry, and then an unaffected door is opened, the start inhibitor will remain ON, but the horn alarm will not restart.

Fig 2: Illustrating New Condition Function Chart
Courtesy of KIA MOTORS AMERICA, INC.
