Cruise Control Module: Inspection

  1. Connect a voltmeter between cruise control unit terminals and ground. (Connector connected)
  2. Turn ignition switch ON and check that terminal voltages are as described in the following illustration.
    Fig 1: Illustrating Connector Pinout
    G00718916Courtesy of KIA MOTORS AMERICA, INC.

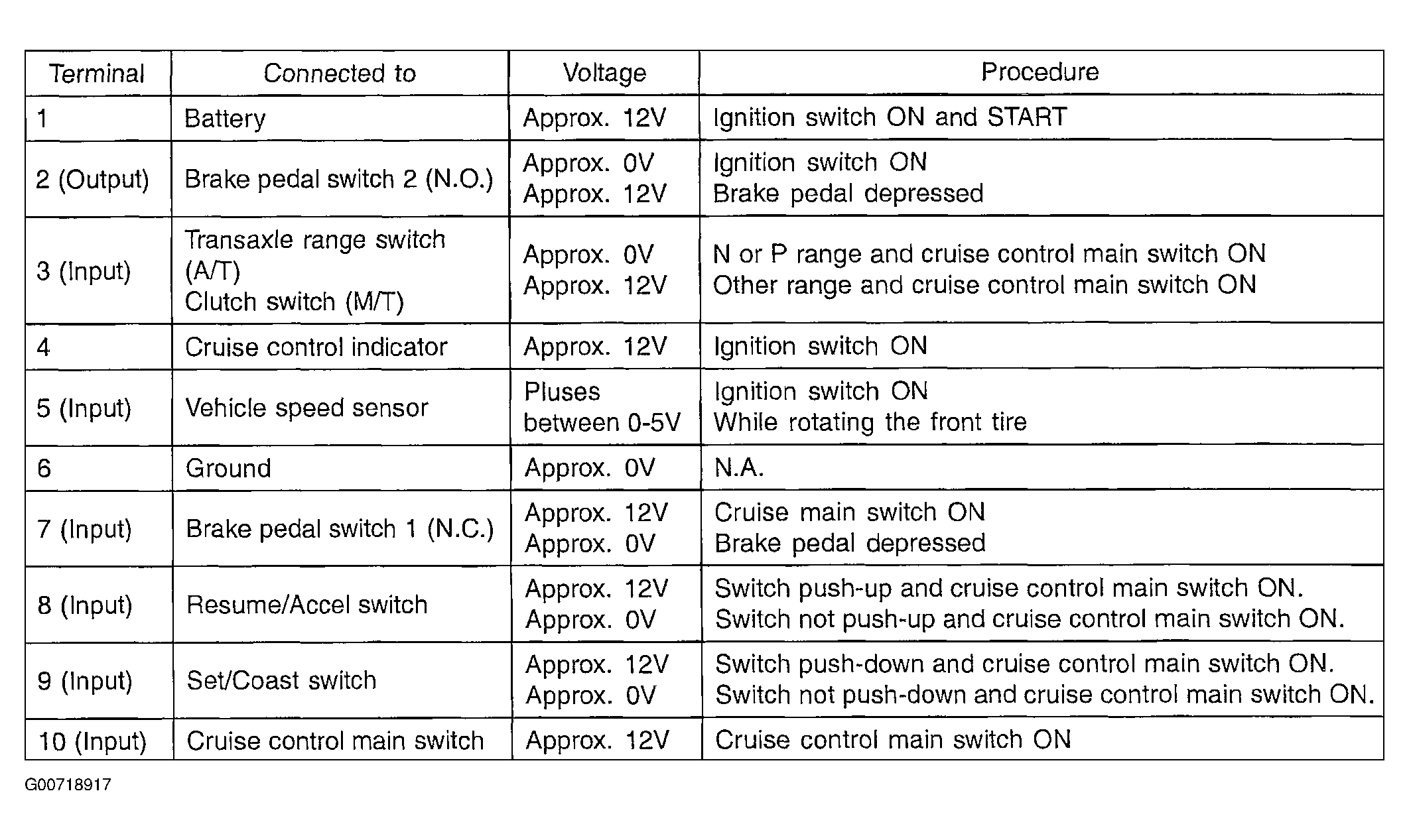

    Fig 2: Terminal Voltage Chart
    G00718917Courtesy of KIA MOTORS AMERICA, INC.
