Power Steering Gear Box: Components

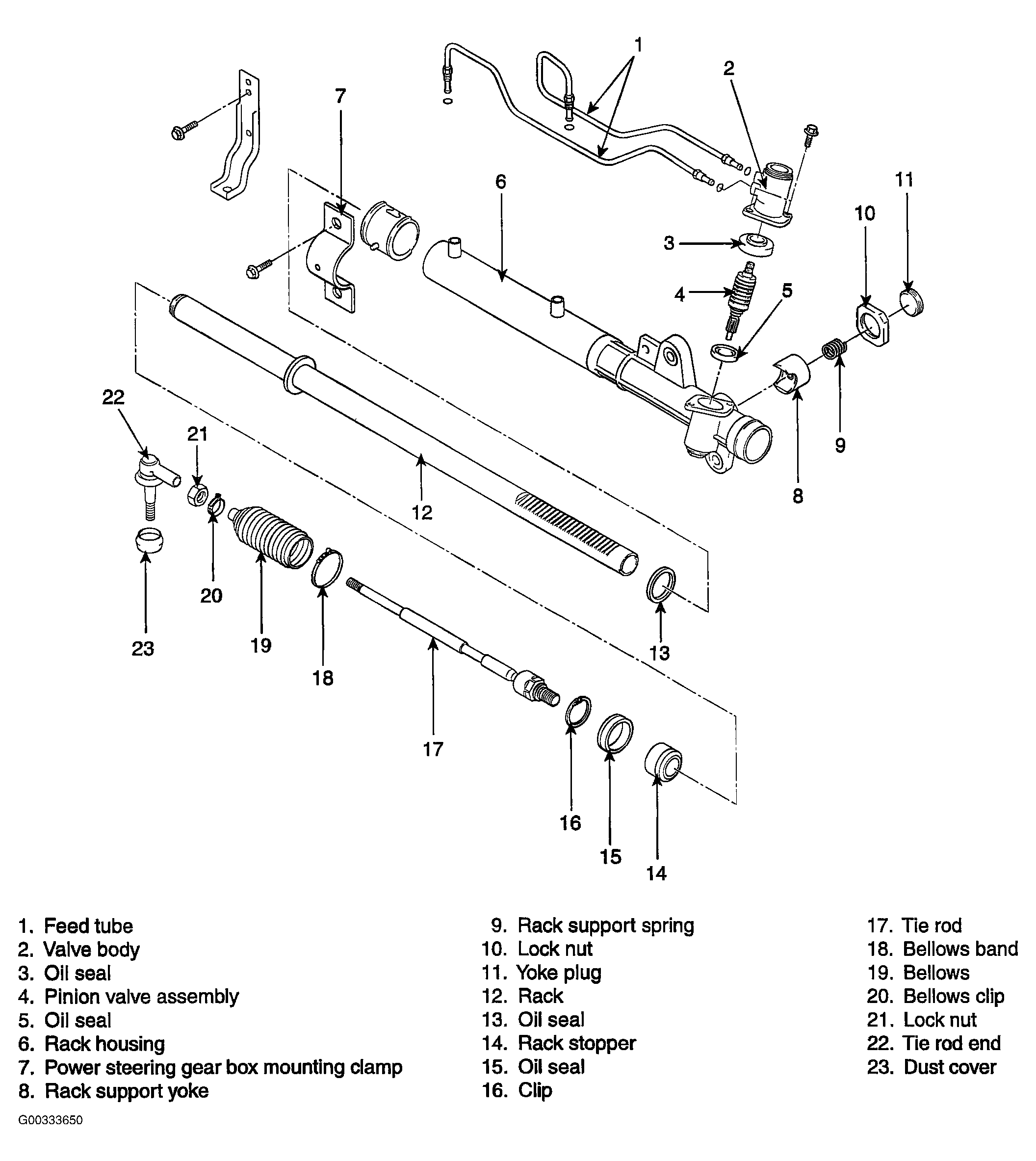

Fig 1: Exploded View Of Power Steering Gear Box

G00333650

Courtesy of KIA MOTORS AMERICA, INC.
