Front Door Lock Switch Inspection

  1. Remove the front door trim panel. FRONT DOOR .
  2. Disconnect the 6P connector from the actuator.

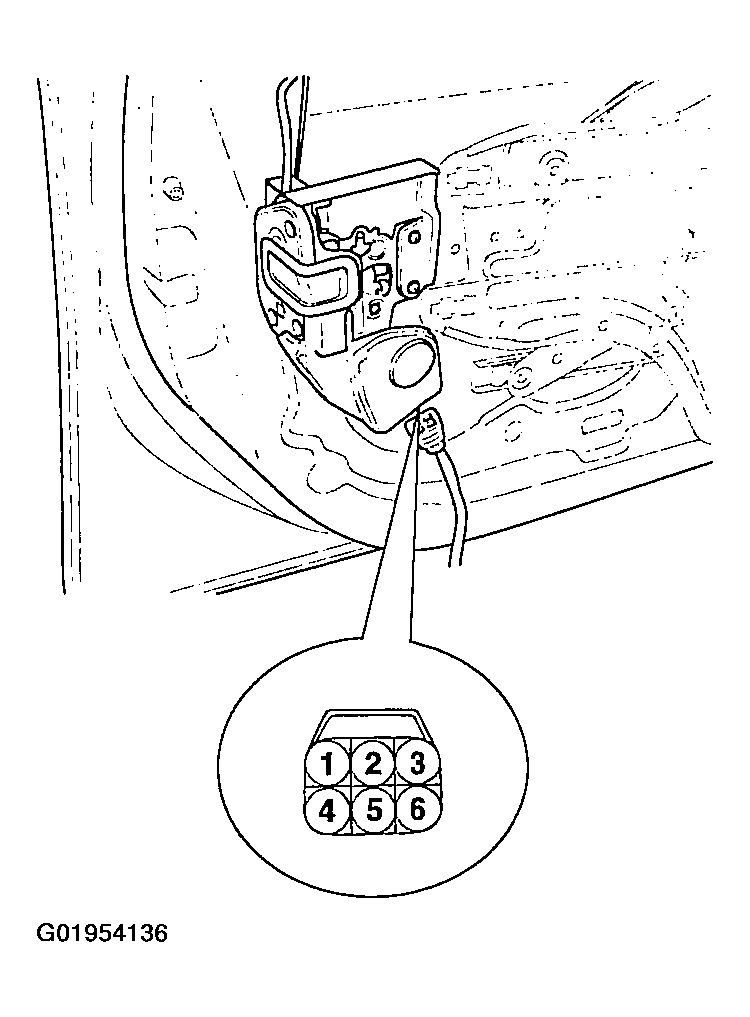

    Fig 1: Illustrating Actuator Connector
    G01954136Courtesy of KIA MOTORS AMERICA, INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Testing Actuator Continuity
    G01954137Courtesy of KIA MOTORS AMERICA, INC.
