Home >> Kia >> 2004 >> Spectra GSX, 1.8 1, Standard >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel >> Instrument Panel >> Components

Instrument Panel: Components

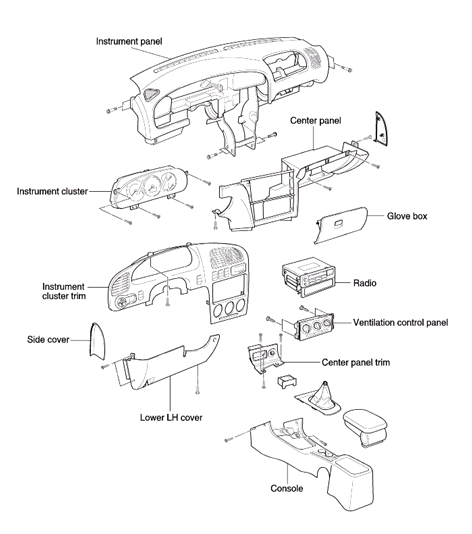

Fig 1: Exploded View Of Instrument Panel Components

G00525391

Courtesy of KIA MOTORS AMERICA, INC.
