Front Door Lock Actuator Inspection

Remove the front door trim panel. See FRONT DOOR .
Disconnect the 6P connector from the actuator.

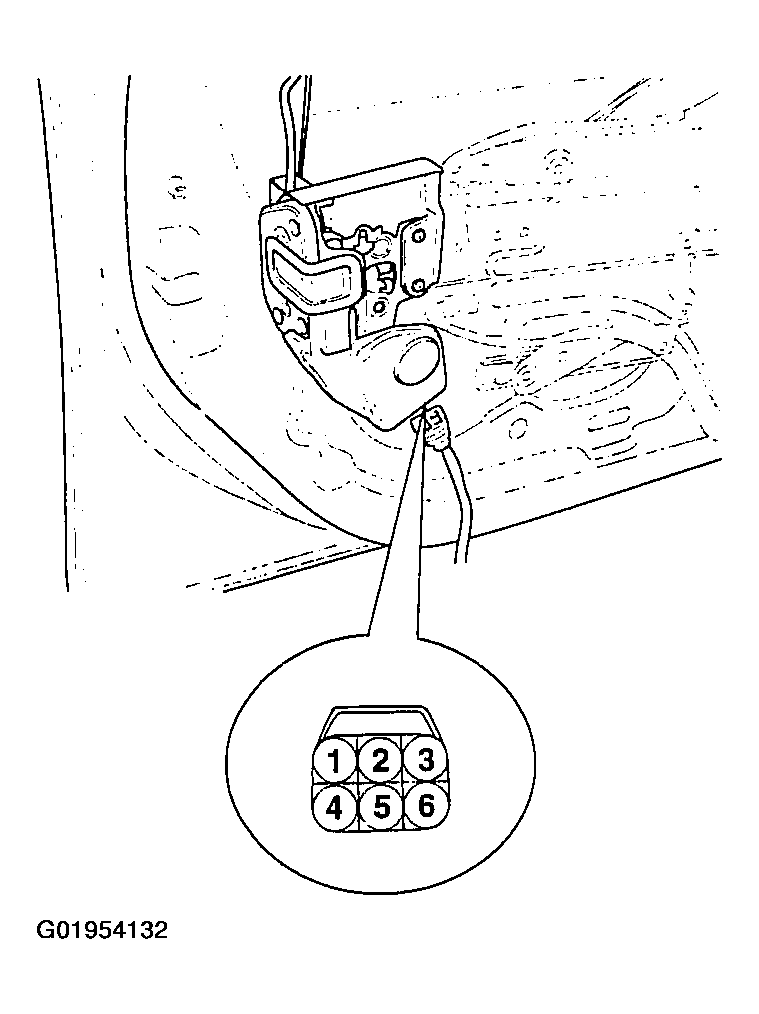

Fig 1: Illustrating Actuator Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily

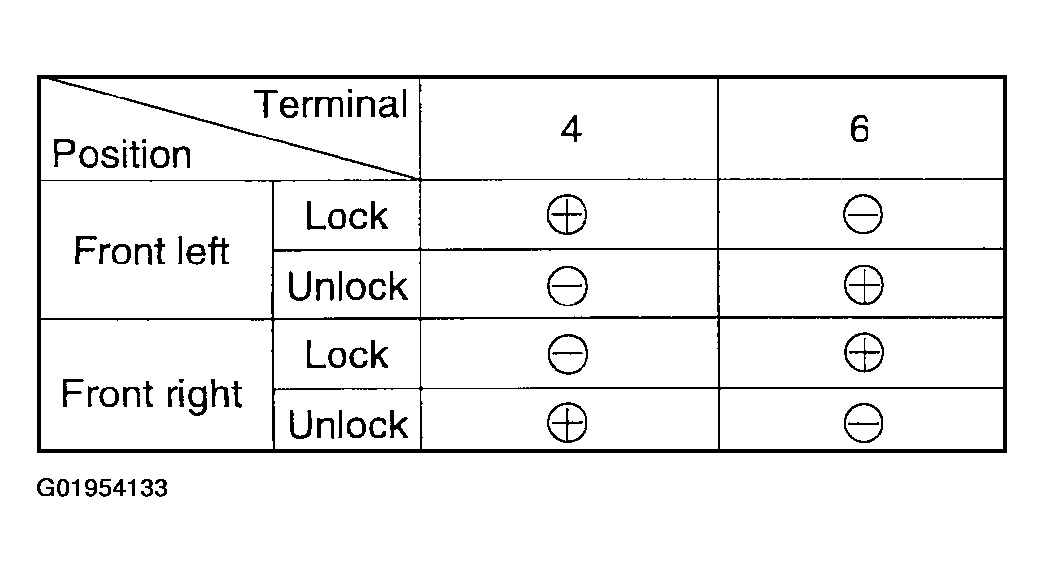

Fig 2: Testing Actuator Operation
Courtesy of KIA MOTORS AMERICA, INC.
