Vehicle Speed Sensor Check

  1. Remove the vehicle speed sensor and connect a 3~10 Kohm resistance as shown in the illustration.
  2. Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 1~2 (1 turn = 4 pulses).

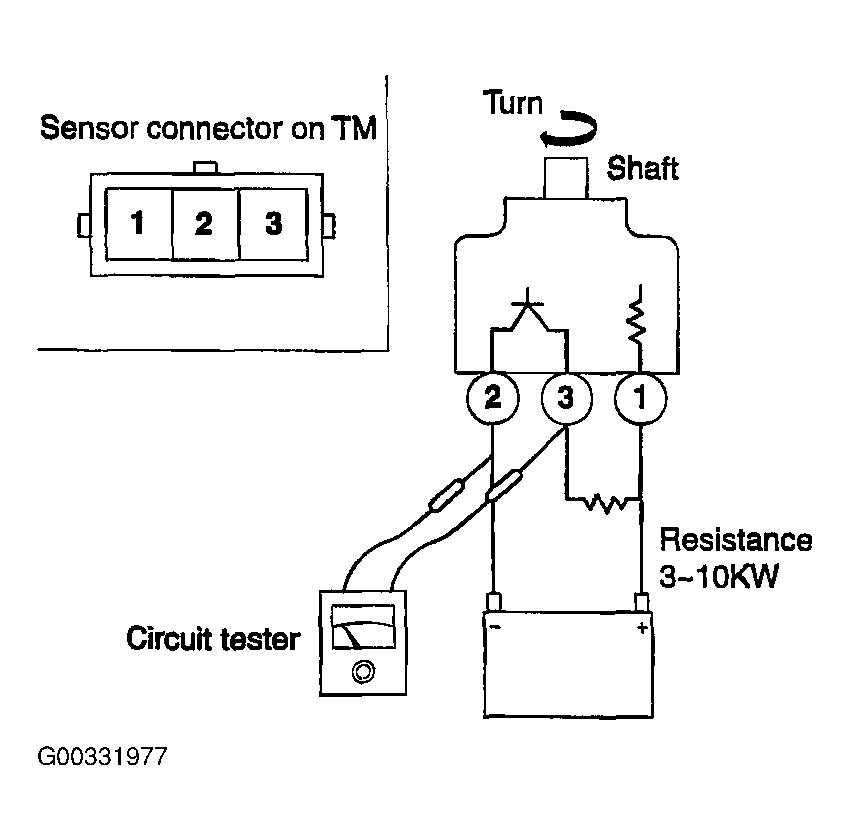

Fig 1: Testing Vehicle Speed Sensor
G00331977Courtesy of KIA MOTORS AMERICA, INC.
