Transaxle Range Switch Continuity Check

Continuity check

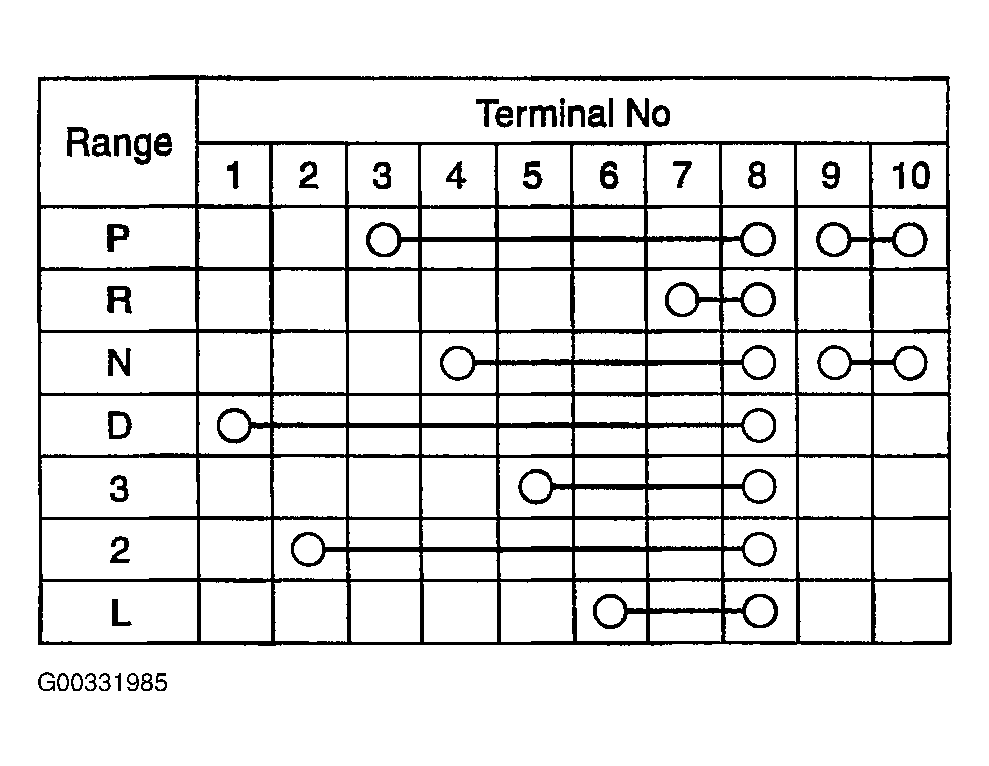

Fig 1: Transaxle Range Switch Continuity
G00331985Courtesy of KIA MOTORS AMERICA, INC.

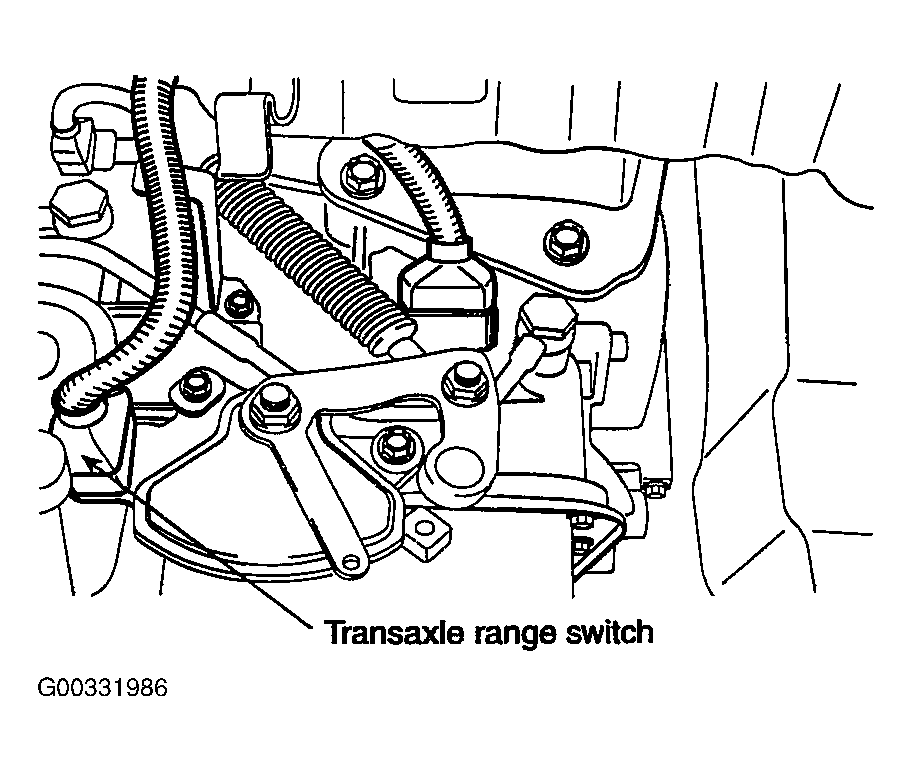

Fig 2: Identifying Transaxle Range Switch
G00331986Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Identifying Transaxle Range Switch Connector Terminals
G00331987Courtesy of KIA MOTORS AMERICA, INC.
