Oil Temperature Sensor Check

  1. Remove the oil temperature sensor.
  2. Measure the resistance between terminals No. 1 and No. 2 of the oil temperature sensor connector.

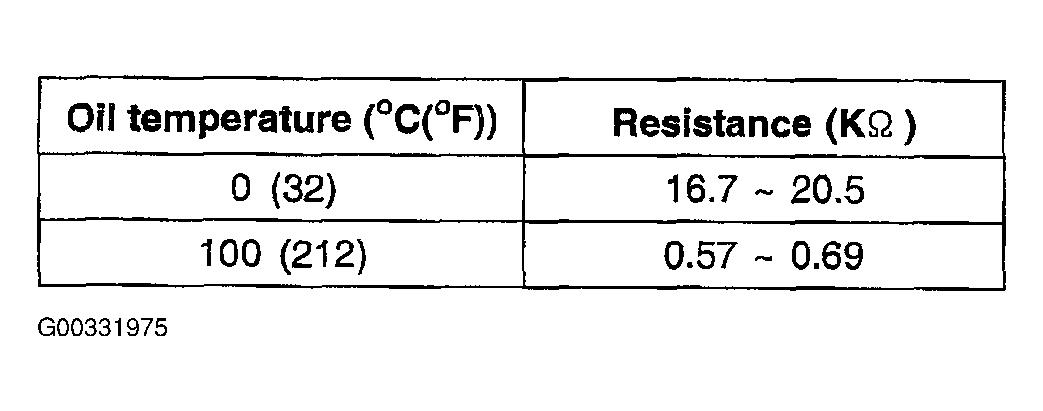

Fig 1: Oil Temperature Sensor Resistance
G00331975Courtesy of KIA MOTORS AMERICA, INC.

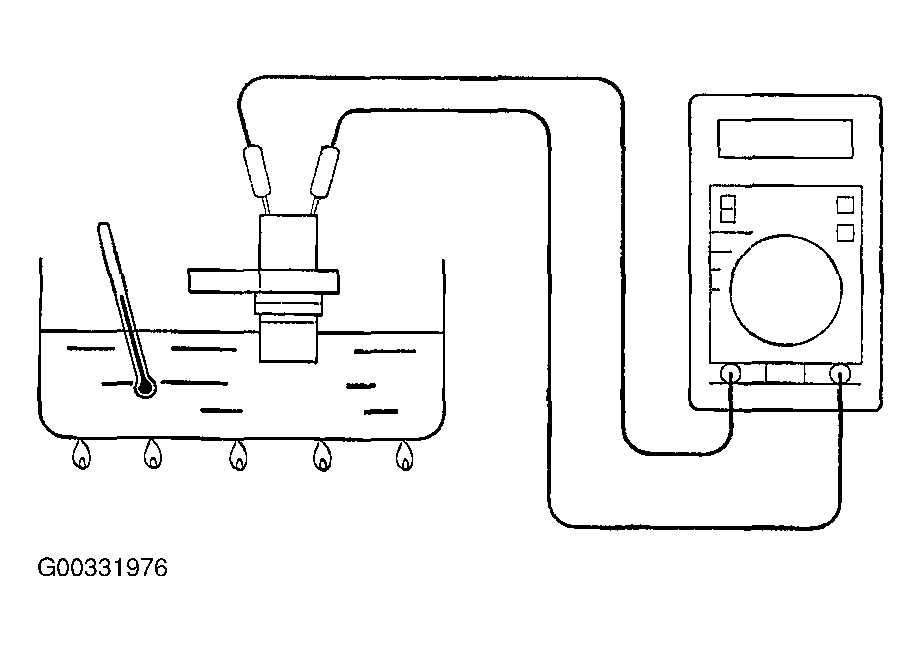

Fig 2: Measuring Resistance Of Oil Temperature Sensor
G00331976Courtesy of KIA MOTORS AMERICA, INC.
