Replacement Of Transaxle Gear Oil

Transaxle gear oil : Hypoid gear oil, SAE 75W/90 (API GL-4)

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug (A).

   Drain plug tightening torque:

   30~35 Nm (300~350 kg.cm, 22~25 lb. ft)

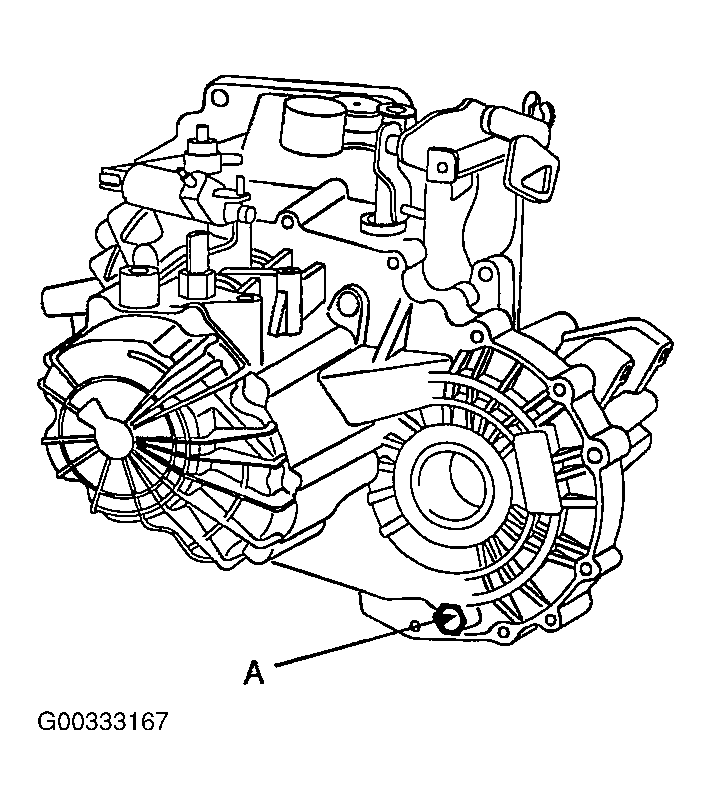

   Fig 1: Identifying Transaxle Drain Plug

   Courtesy of KIA MOTORS AMERICA, INC.
3. Add new oil through the filler plug (A) and, fill it to just below the plug opening.

   Transaxle oil total capacity :

   2.15L (2.25 U.S. qts., 1.95 Imp. qts.)

   Filler plug tightening torque :

   30~35 Nm (300~350 kg.cm, 22~25 lb. ft)

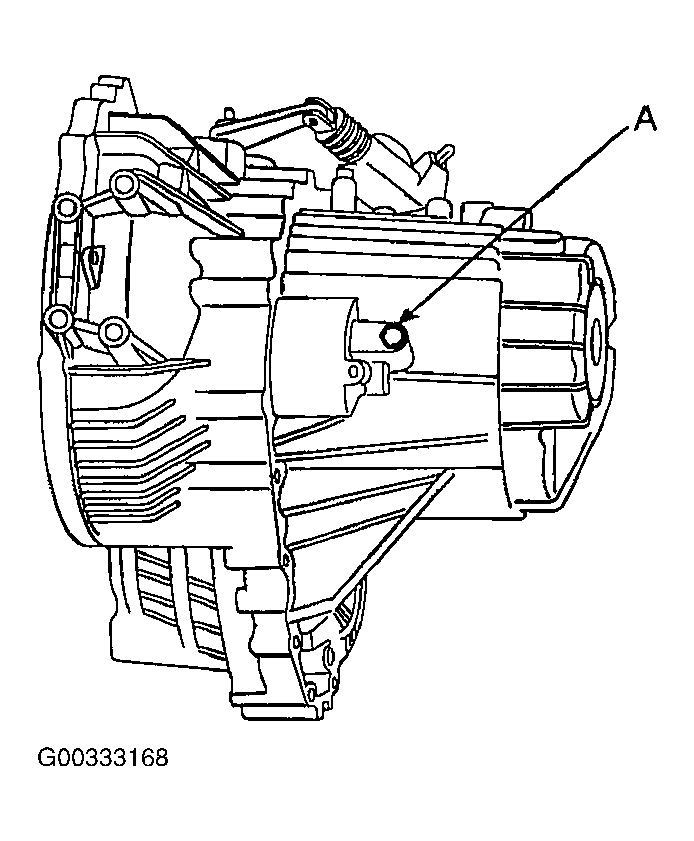

   Fig 2: Identifying Transaxle Filler Plug

   Courtesy of KIA MOTORS AMERICA, INC.
