Snap Ring For Adjustment And Spacer
Snap Ring For Adjustment And Spacer

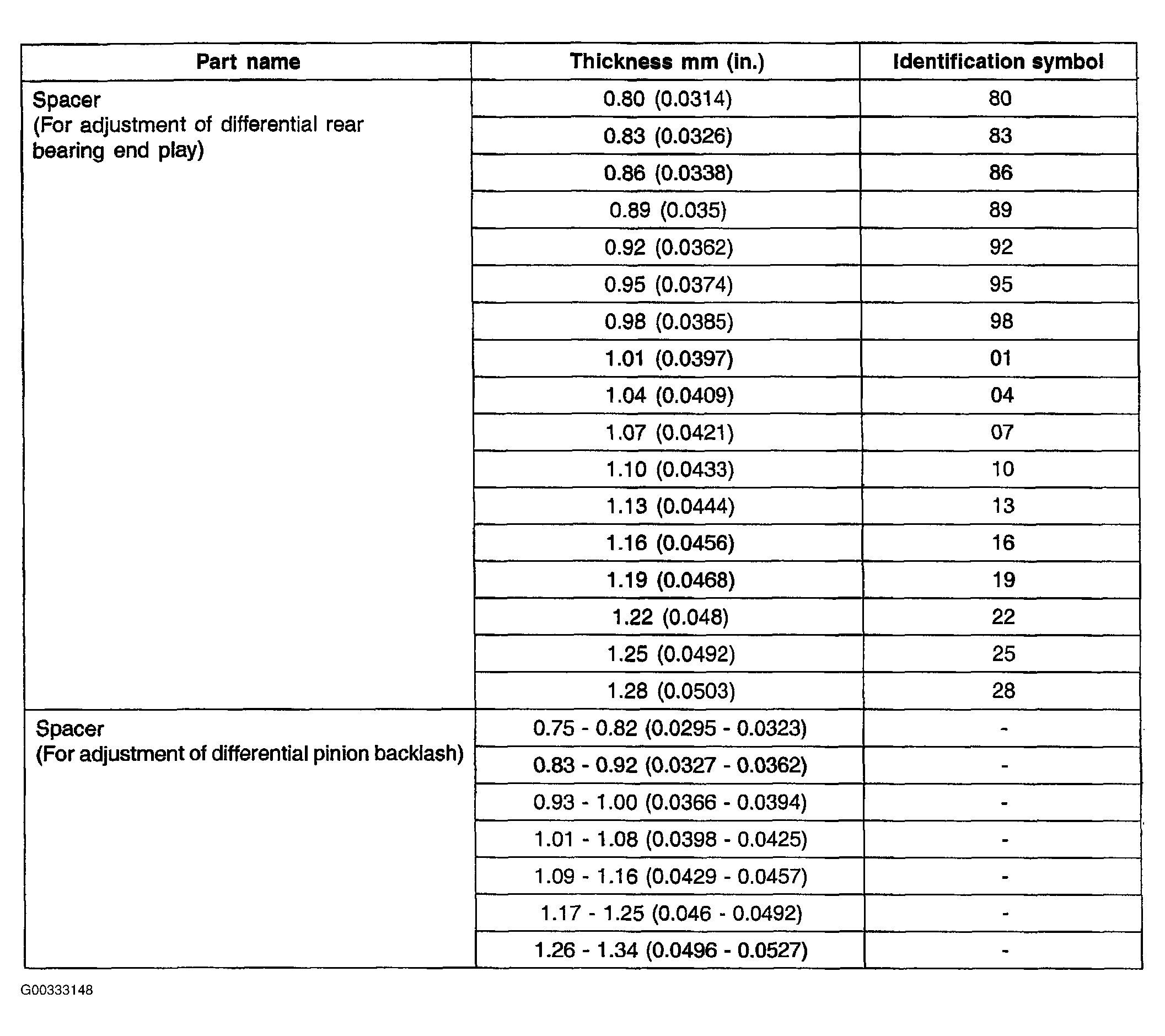

Fig 1: Snap Ring For Adjustment & Spacer (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

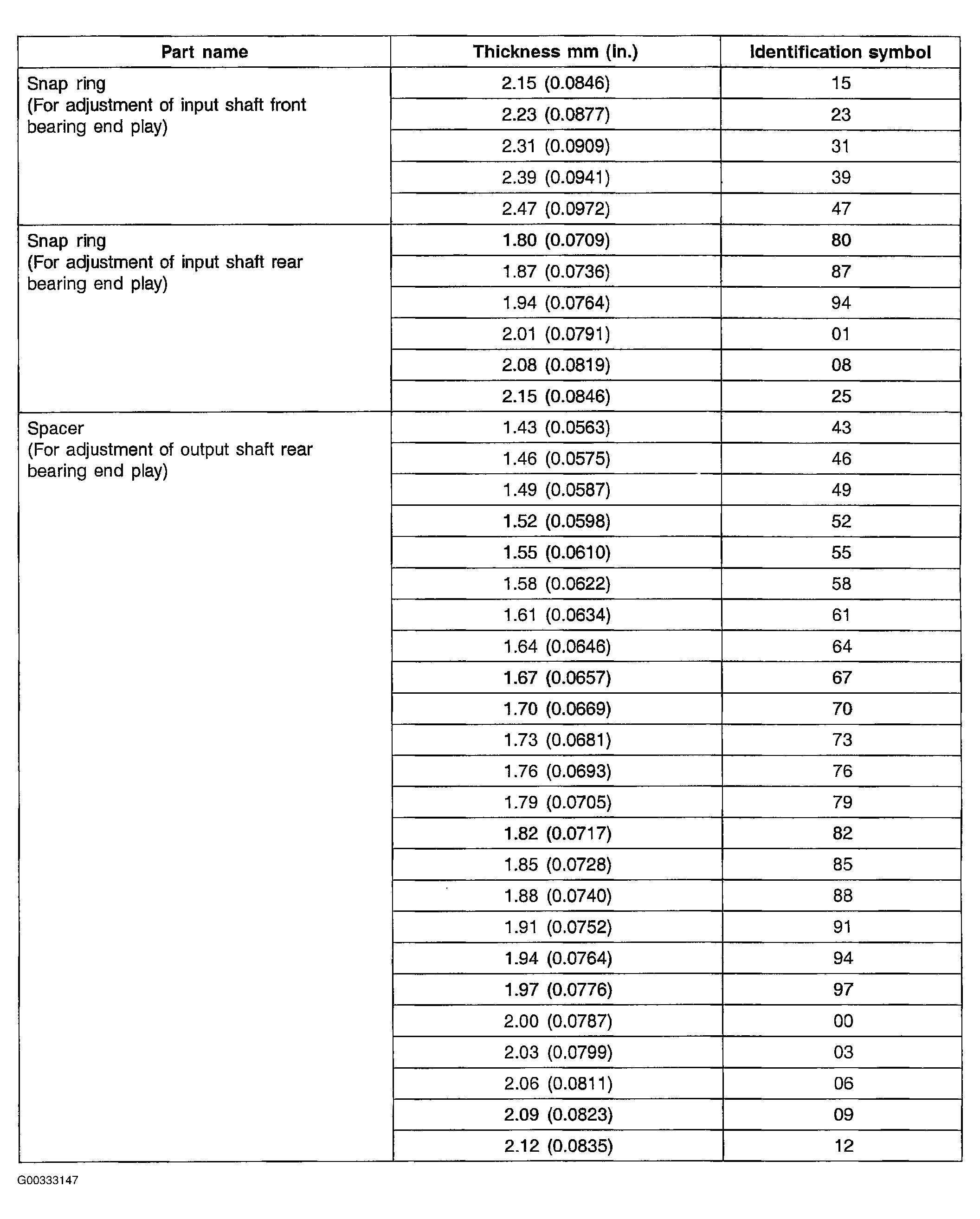

Fig 2: Snap Ring For Adjustment & Spacer (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
