DTC P0125: Insufficient Coolant Temperature For Closed Loop Fuel Control: Specification

Fig 1: DTC P0125 Thermostat Specification
G01820585Courtesy of KIA MOTORS AMERICA, INC.

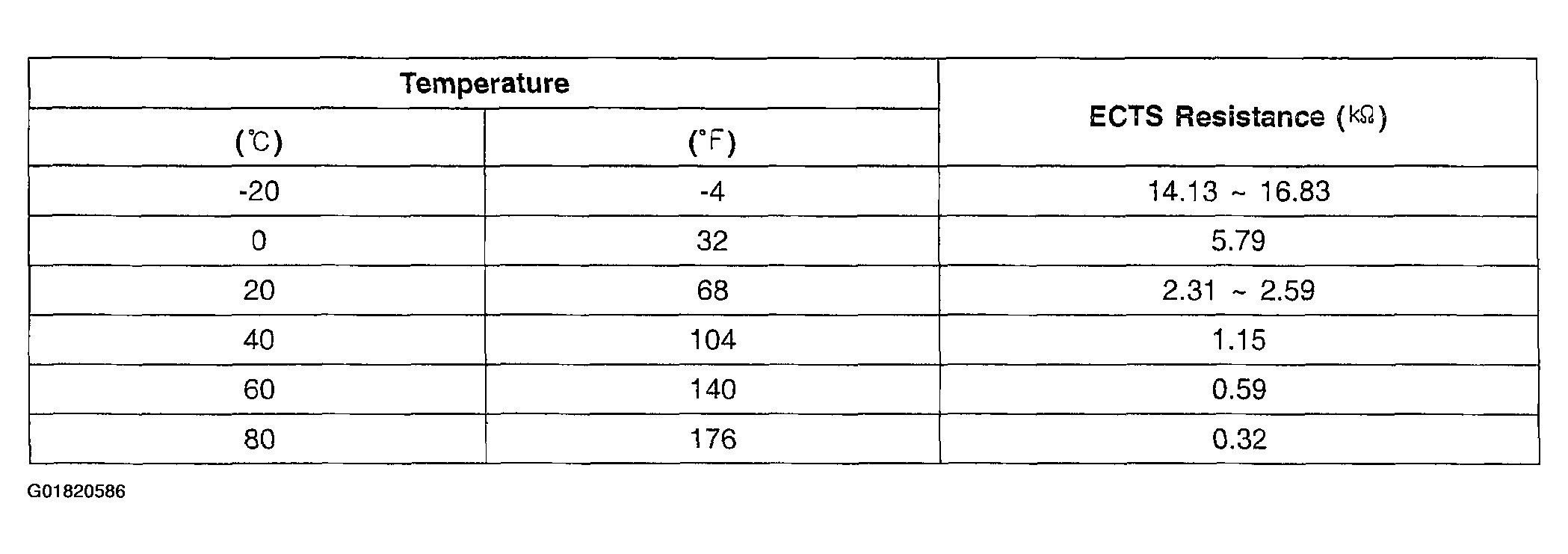

Fig 2: DTC P0125 ECTS Resistance Specification
G01820586Courtesy of KIA MOTORS AMERICA, INC.
