Home >> Kia >> 2004 >> Spectra EX, 2.0 1, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures - 2.0L >> Troubleshooting For DTC >> DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem >> Specification

DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem: Specification

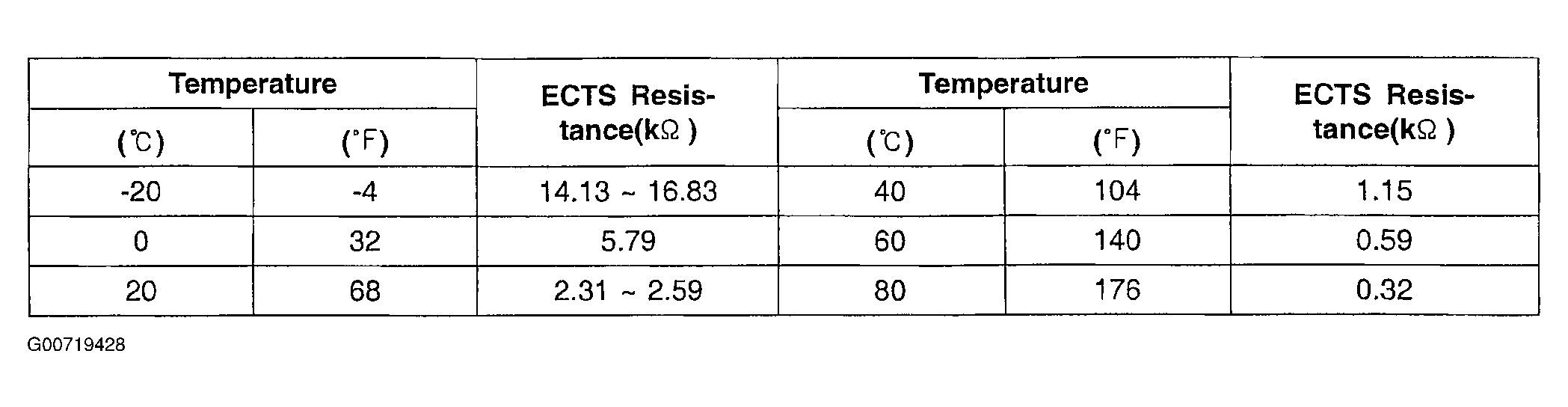

Fig 1: DTC P0116 Specification

G00719428

Courtesy of KIA MOTORS AMERICA, INC.
