Power Steering Oil Pump: Disassembly

Remove two bolts (A) from the oil pump body (B), and then remove the suction pipe (C) and O-ring.

Fig 1: Identifying Oil Pump Suction Pipe Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the four bolts and remove the oil pump cover assembly.
Remove the cam ring.
Remove the rotor and vanes.
Remove the oil pump side plate.

Fig 2: Removing/Installing Oil Pump Side Plate
Courtesy of KIA MOTORS AMERICA, INC.
Remove the inner (A) and outer O-ring (B).

Fig 3: Identifying Side Plate Spring and O-Rings
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When assembling, use a new gasket and O-ring.

Remove the side plate spring (C).
Mount the pulley in a vise and remove the pulley nut and the spring washer.

Fig 4: Removing Power Steering Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Pull the pulley out.
After removing the snap ring (A) of the shaft with snap ring pliers, remove the dust spacer (B).

Fig 5: Identifying Snap Ring & Dust Spacer
Courtesy of KIA MOTORS AMERICA, INC.
Tap the rotor side of the shaft slightly with a plastic hammer (A) to remove the shaft (B).

Fig 6: Removing Pump Shaft
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When assembling, use a new oil seal.

Fig 7: Removing Oil Seal From Oil Pump Body

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Do not disassemble the flow control valve.

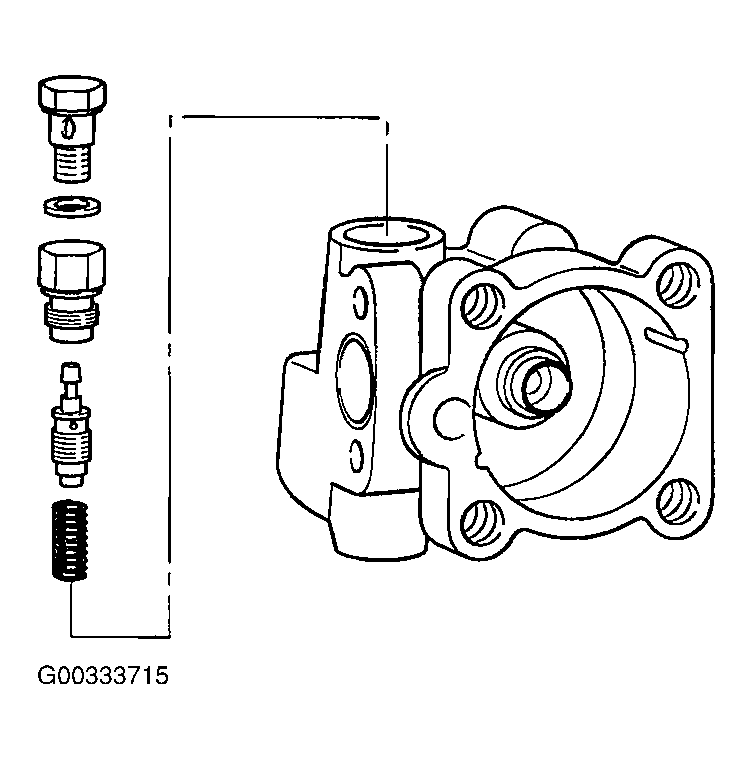

Fig 8: Identifying Oil Pump Flow Control Valve

Courtesy of KIA MOTORS AMERICA, INC.

Remove the connector from the oil pump body, and take out the flow control valve and the flow control spring.
Remove the O-ring from the connector.
