Kia
>>
2004
>>
Spectra Base, 1.8 2, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures 1.8L
>>
Diagnostic Trouble Code Diagnosis
>>
Diagnostic Trouble Codes
>>
DTC P0461, P0462. P0463: Fuel Level Sensor Circuit Range/Low/High Input
DTC P0461, P0462. P0463: Fuel Level Sensor Circuit Range/Low/High Input

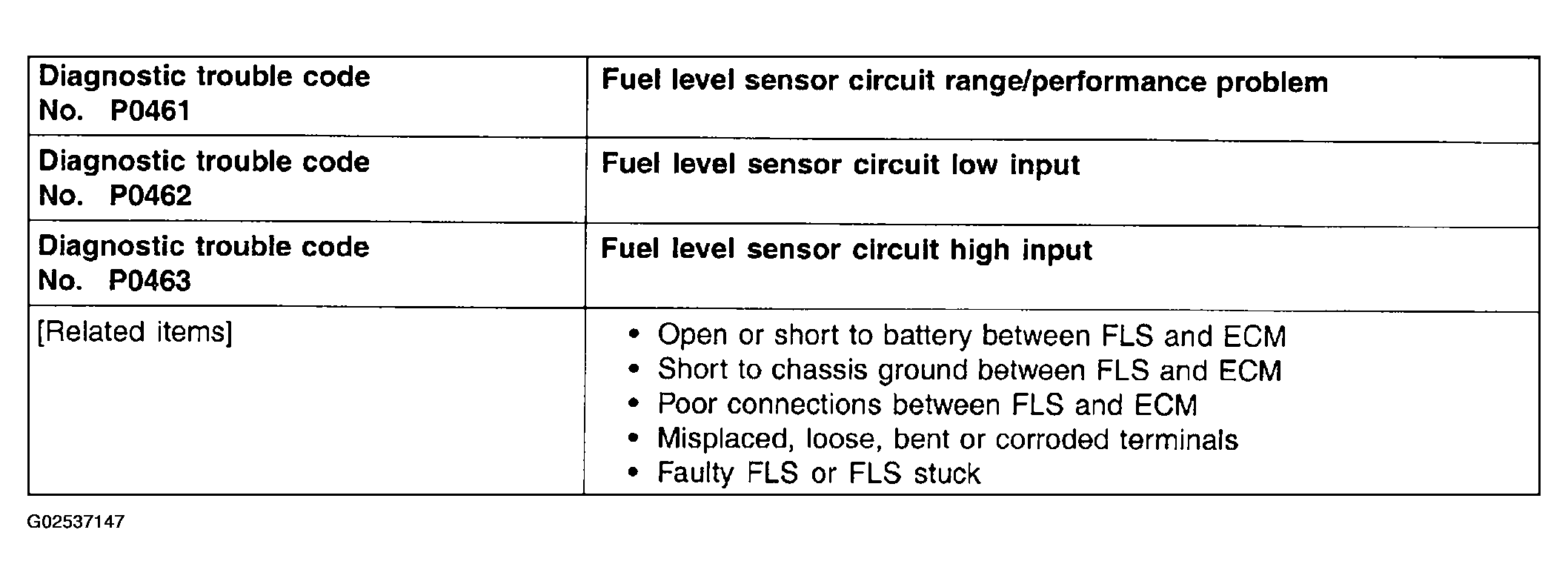

Fig 1: Problem Description
Courtesy of KIA MOTORS AMERICA, INC.

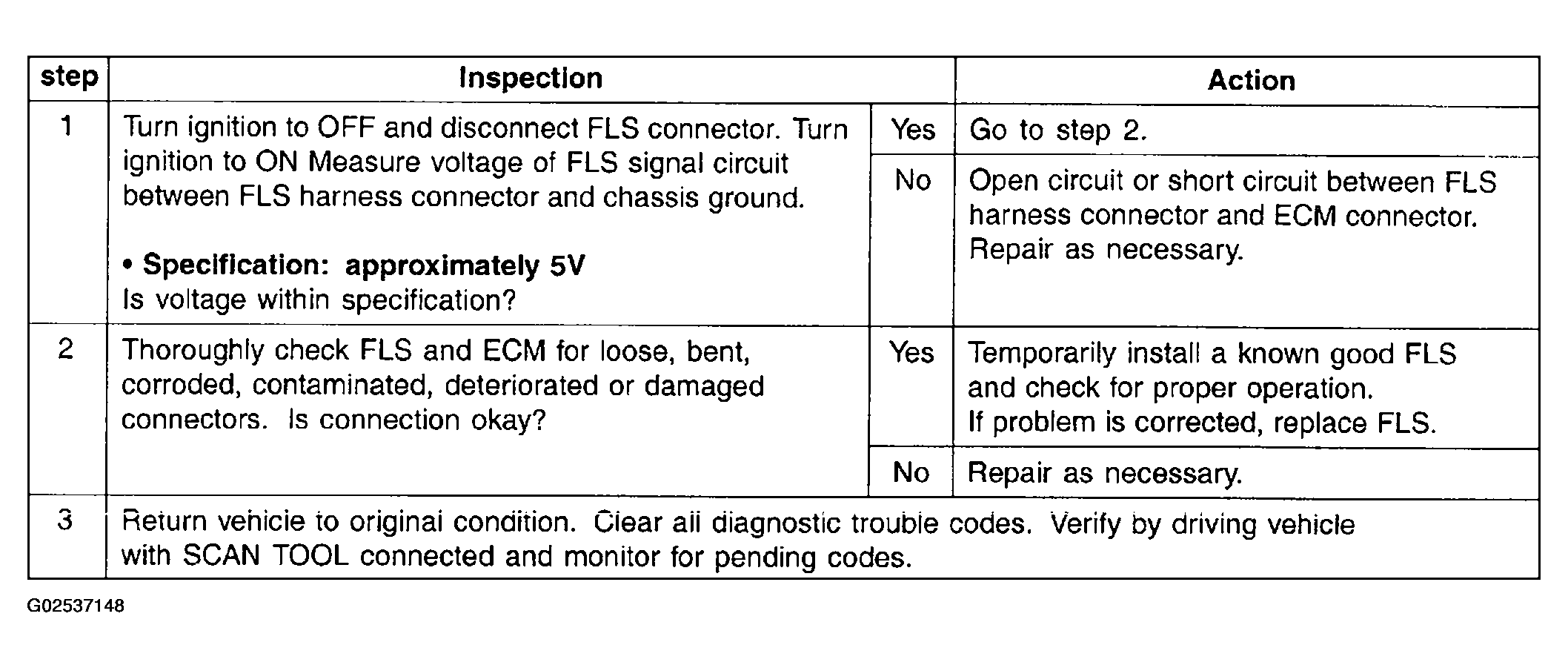

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
