DTC P0137: Ho2S Circuit Low Input (Bank 1 Sensor 2)
DTC P0137: Ho2S Circuit Low Input (Bank 1 Sensor 2)
Fig 1: Problem Description
Courtesy of KIA MOTORS AMERICA, INC.

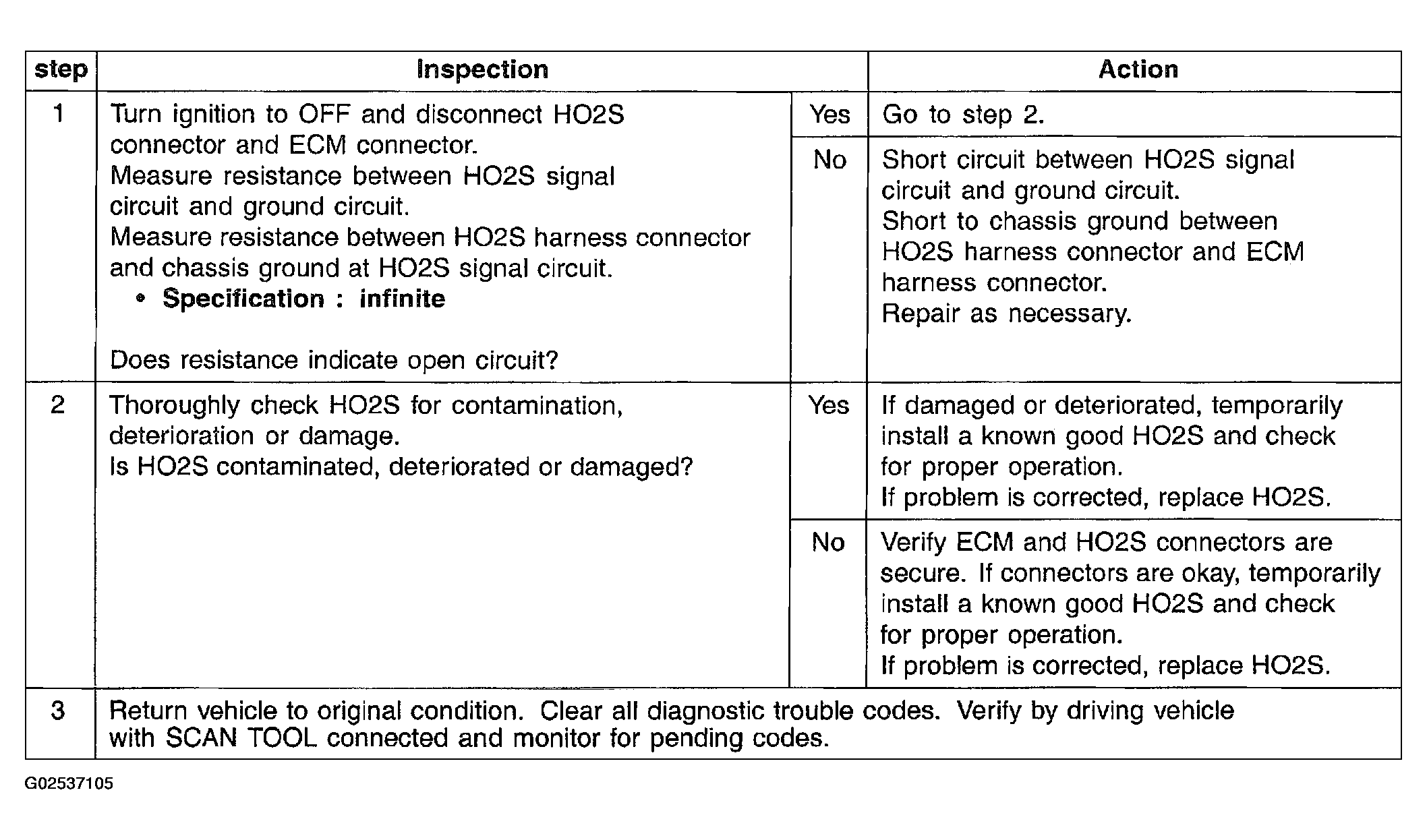

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
