DTC Troubleshooting Procedures 1.8L
>>
Diagnostic Trouble Code Diagnosis
>>
Diagnostic Trouble Codes
>>
DTC P0131: Ho2S Circuit Low Input (Bank 1 Sensor 1)
DTC P0131: Ho2S Circuit Low Input (Bank 1 Sensor 1)
Fig 1: Problem Description
Courtesy of KIA MOTORS AMERICA, INC.

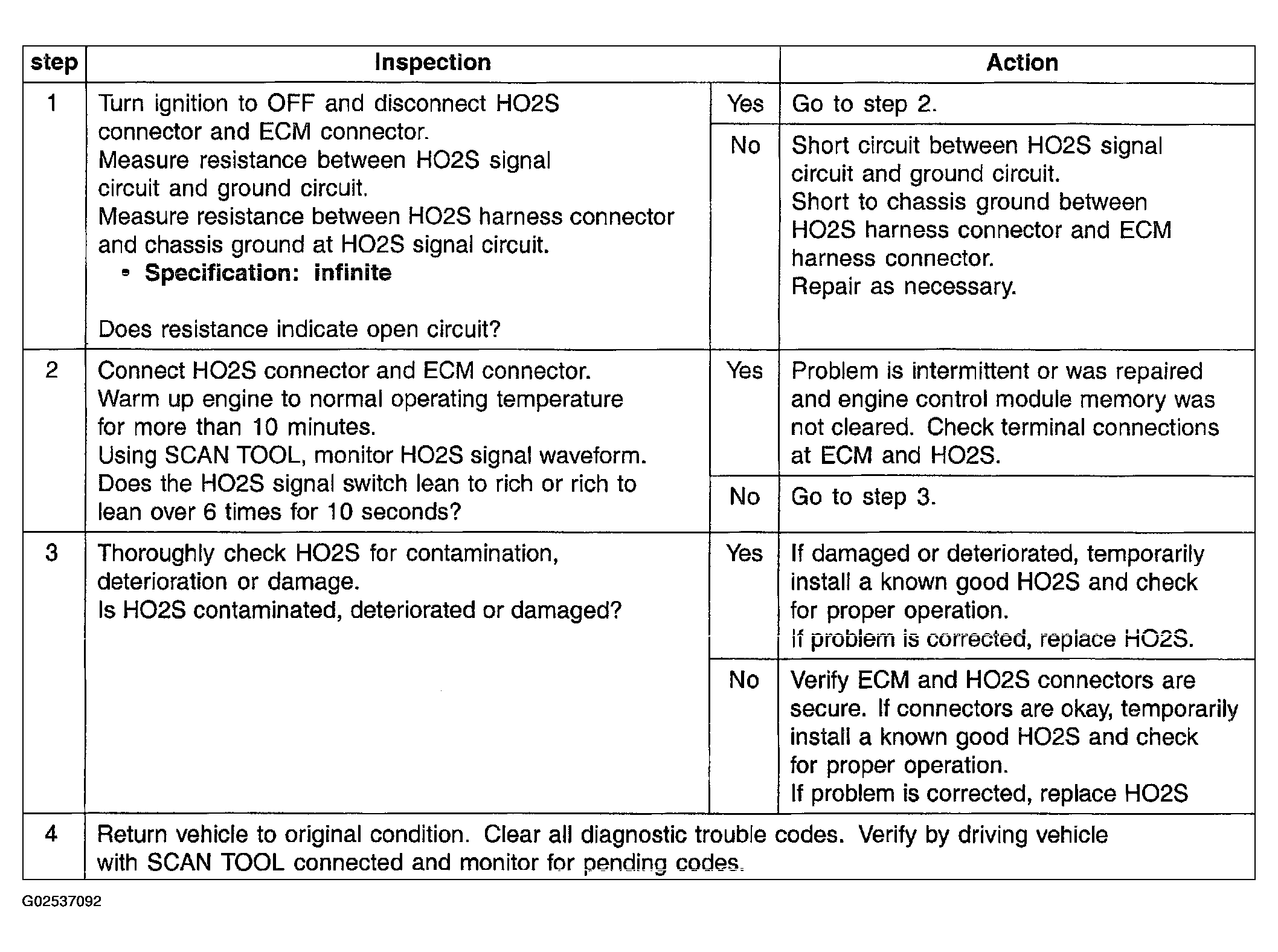

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
