DTC P0121: TPS Circuit Range Problem
DTC P0121: TPS Circuit Range Problem

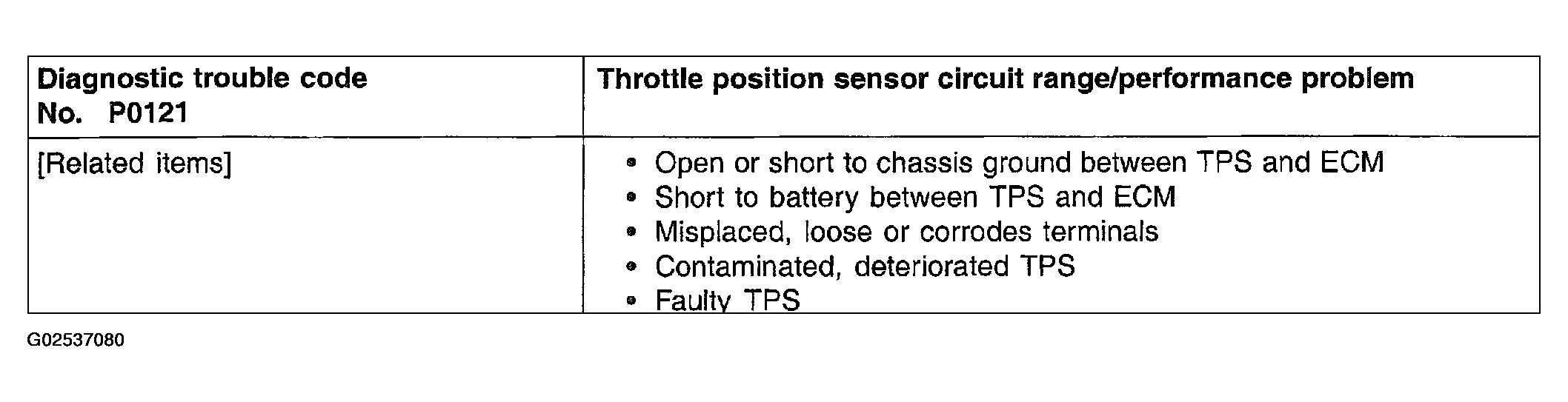

Fig 1: Problem Description
Courtesy of KIA MOTORS AMERICA, INC.

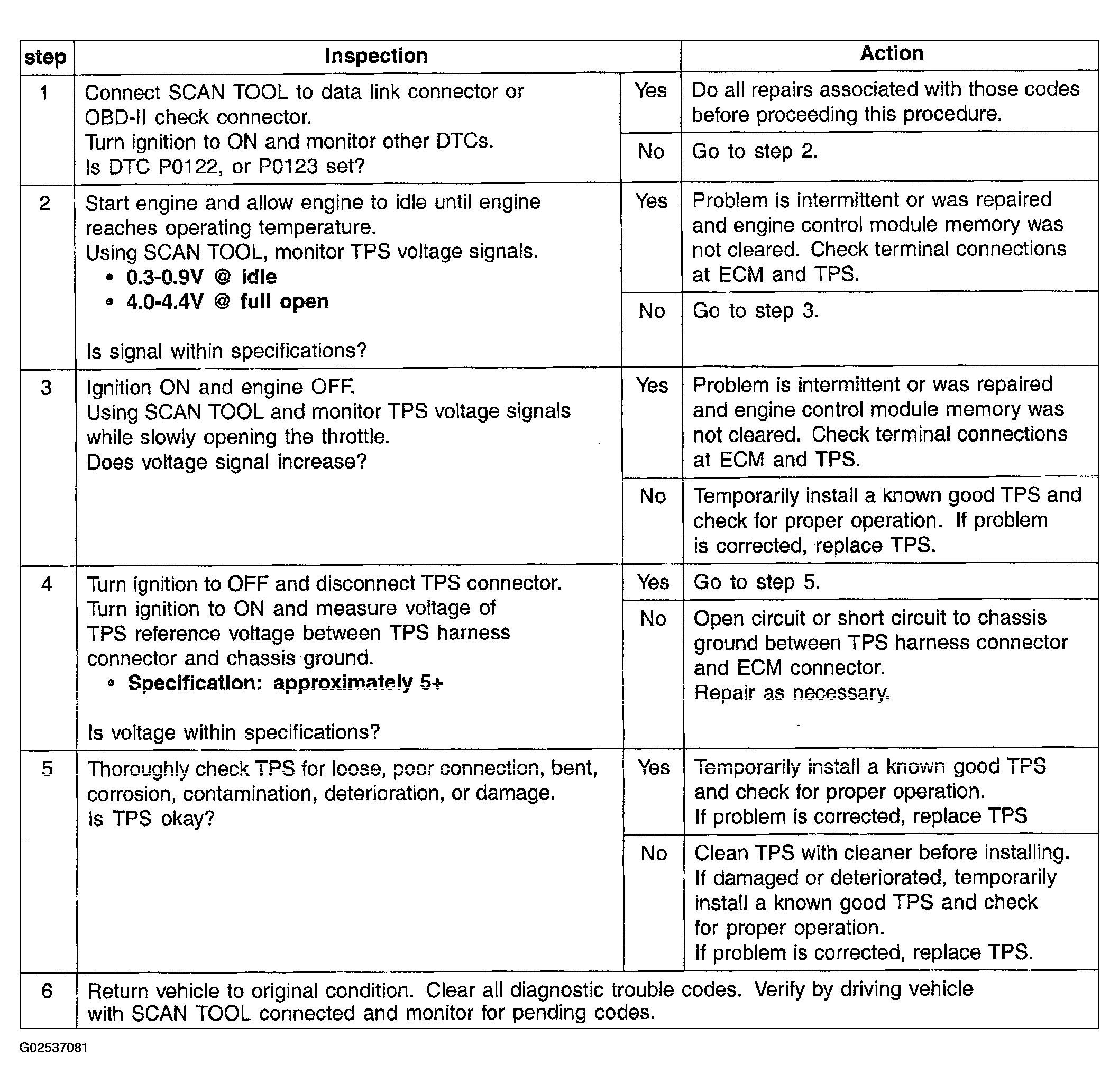

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
