Ignition Key Reminder

  1. If the key is in the ignition, with either the driver's door or assist door open, and then the vehicle is locked using the driver's knob or assist knob, the central locking system will issue an unlock pulse (1 second duration) to all doors preventing locking of the vehicle. (When a knob remains locked, if the switch in the actuator is not changed, the central locking will issue 1 pulse (1 second duration) and then 3 pulses (0.5 second) to unlock the vehicle.)

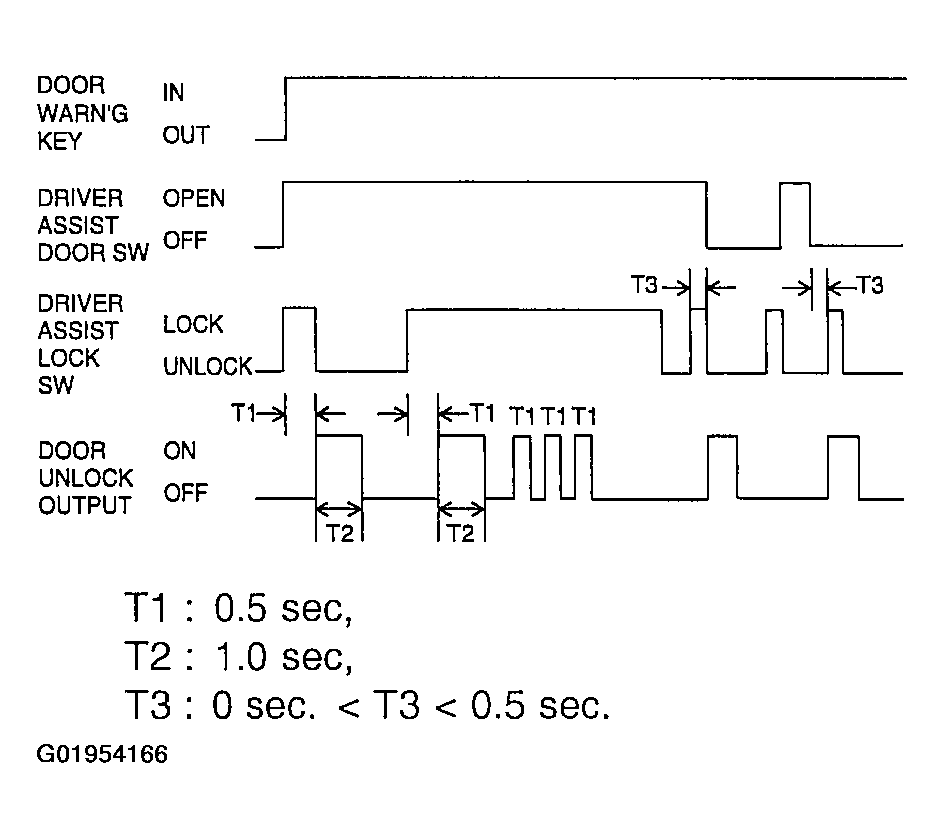

    Fig 1: Illustrating Ignition Key Reminder Function Diagram
    G01954166Courtesy of KIA MOTORS AMERICA, INC.
