Central Door Lock/Unlock

  1. Central door lock/unlock

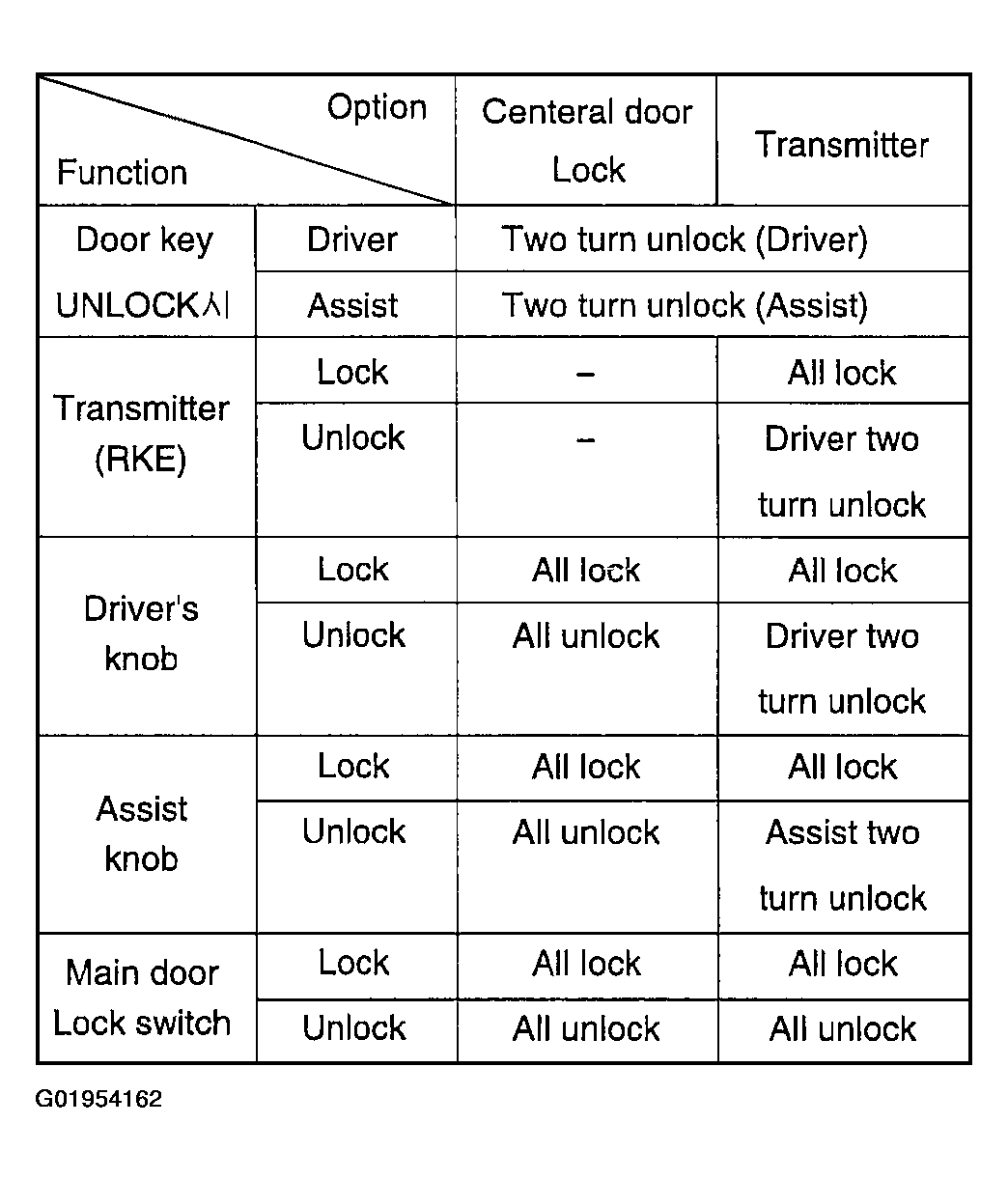

    Fig 1: Illustrating Central Door Lock/Unlock Function Diagram
    G01954162Courtesy of KIA MOTORS AMERICA, INC.
  2. When UNLOCK is input during LOCK output, the LOCK output stops immediately and the UNLOCK output continues.
  3. When the LOCK/UNLOCK signal is received by the remote control, the LOCK/UNLOCK output continues for 0.5 seconds.
