Audio Unit: General: Notes

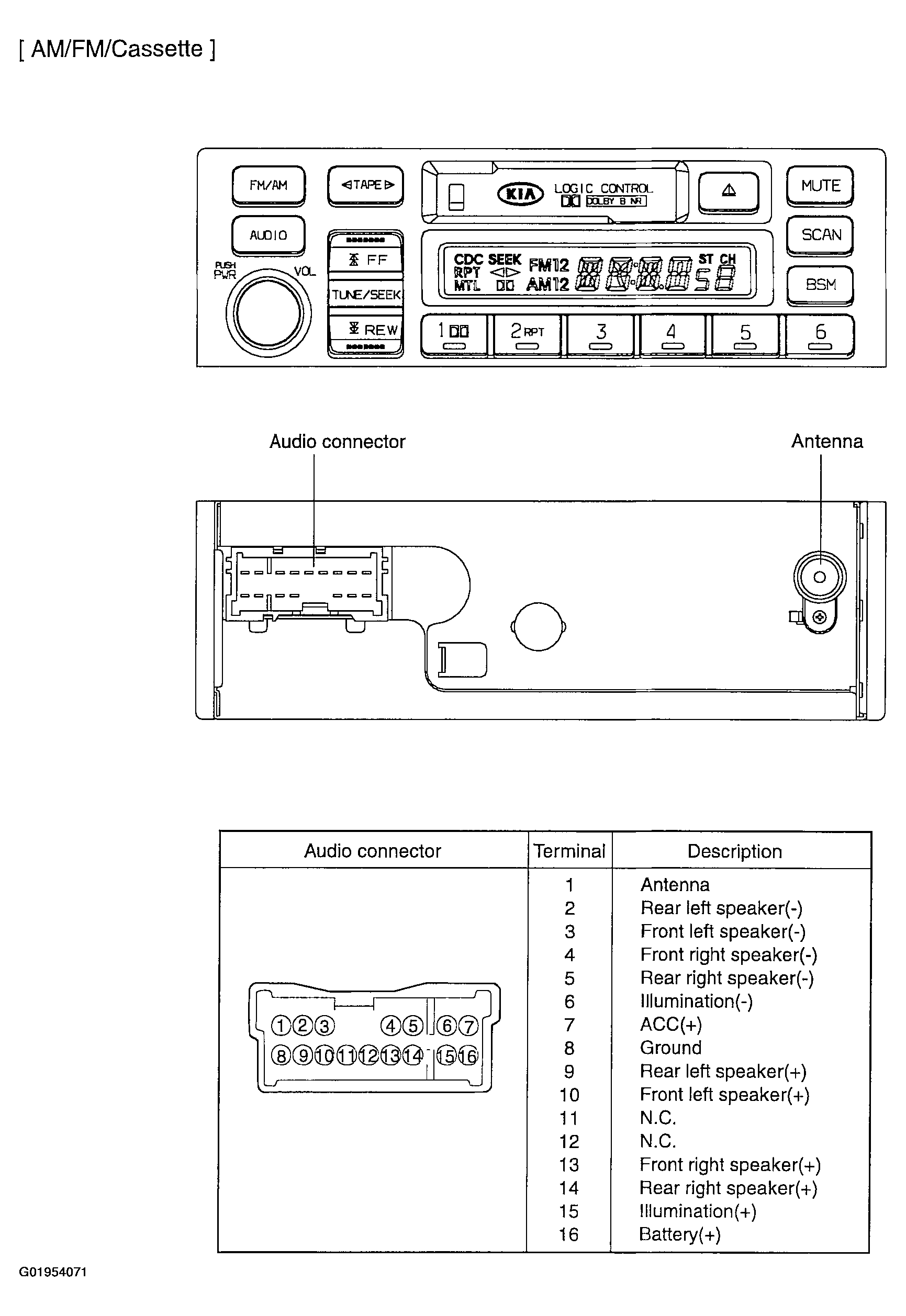

Fig 1: Illustrating AM/FM Cassette
G01954071Courtesy of KIA MOTORS AMERICA, INC.

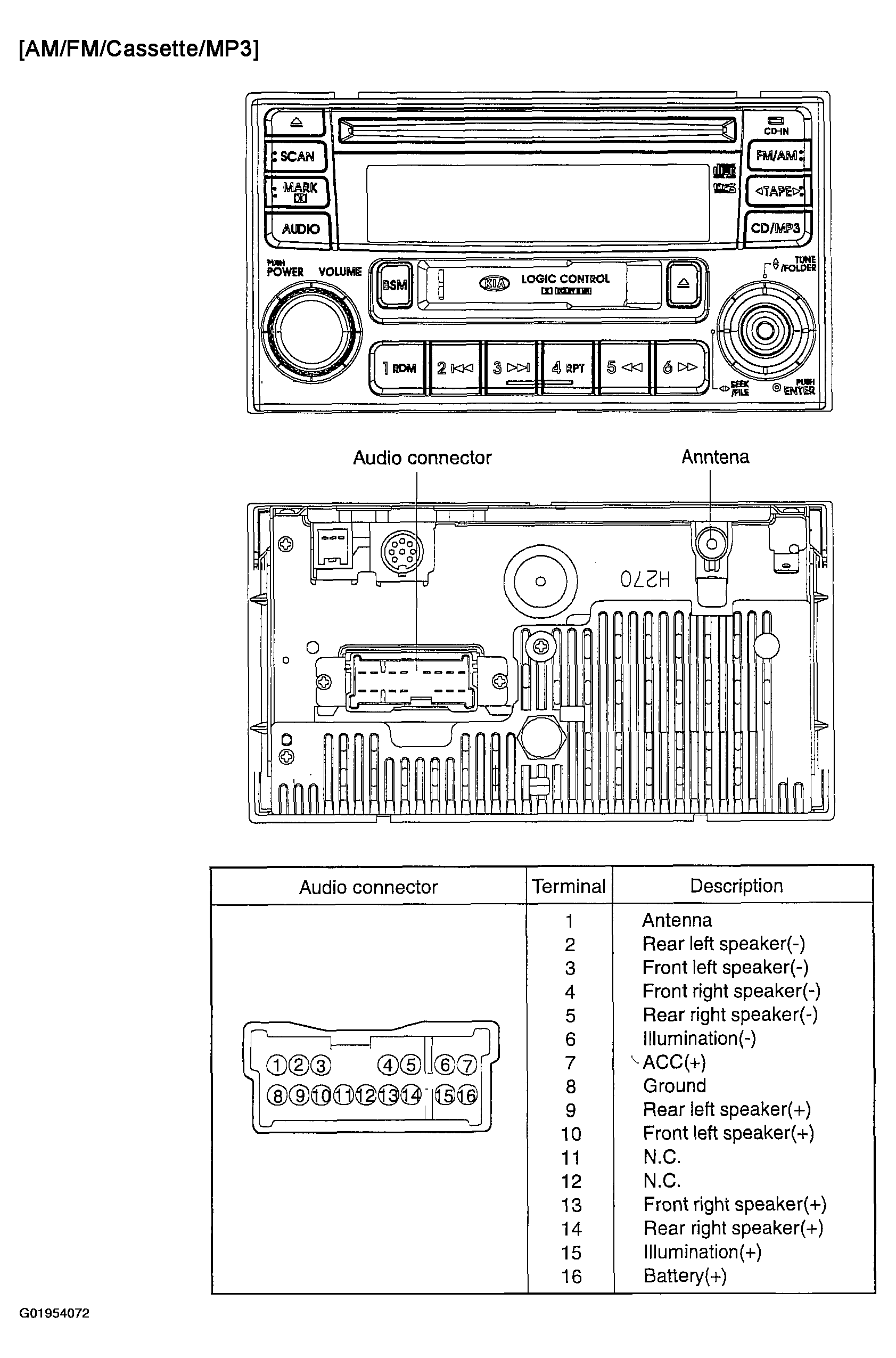

Fig 2: Illustrating AM/FM Cassette/MP3
G01954072Courtesy of KIA MOTORS AMERICA, INC.

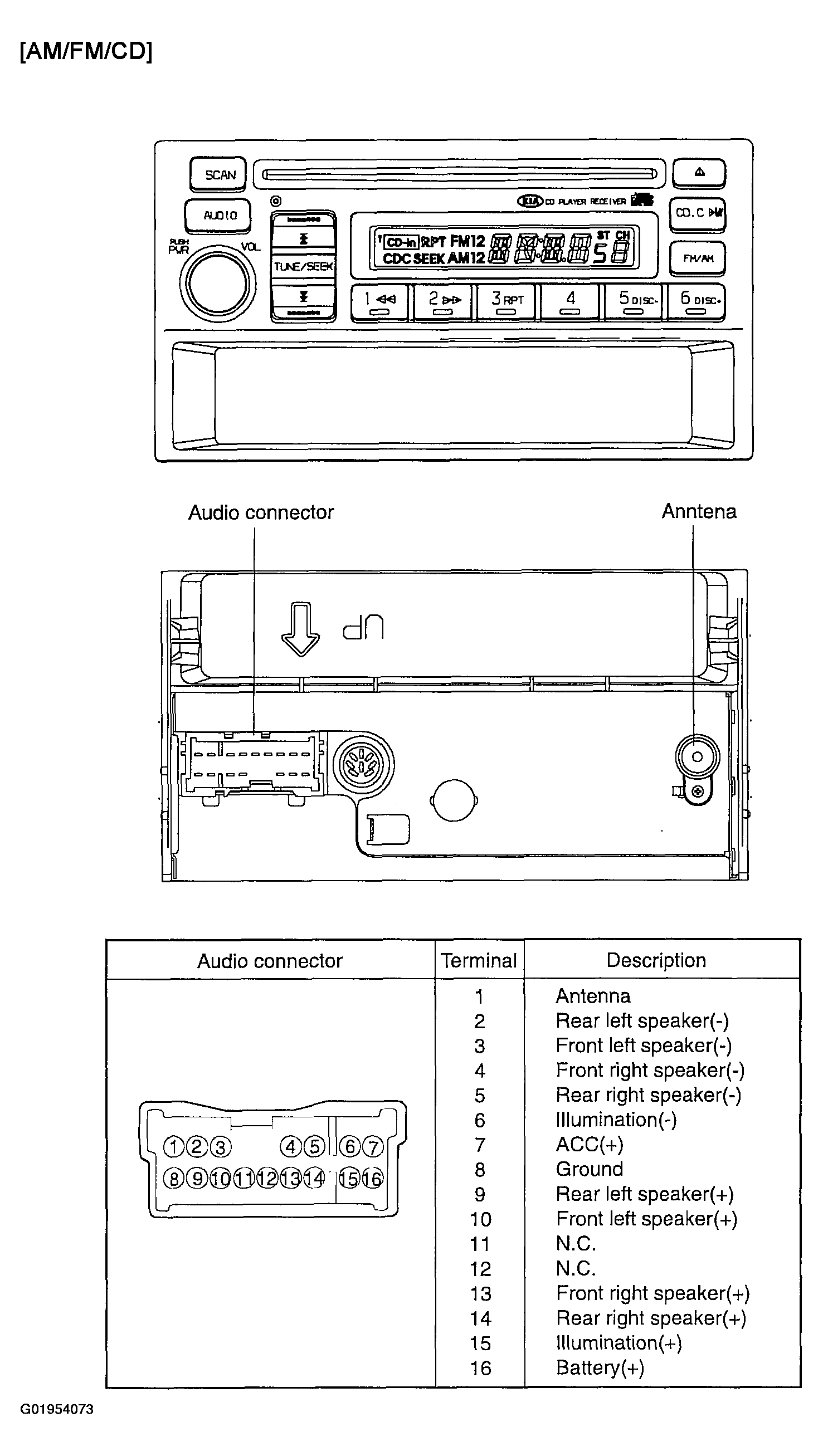

Fig 3: Illustrating AM/FM/CD
G01954073Courtesy of KIA MOTORS AMERICA, INC.
