Home >> Kia >> 2004 >> Spectra Base, 1.8 2, Automatic >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> DTC Troubleshooting Procedures 1.8L >> Diagnostic Trouble Code Diagnosis >> Diagnostic Trouble Codes >> DTC P1402: EVAP Emission Control Leak Detection Module Pump Circuit Malfunction

DTC P1402: EVAP Emission Control Leak Detection Module Pump Circuit Malfunction

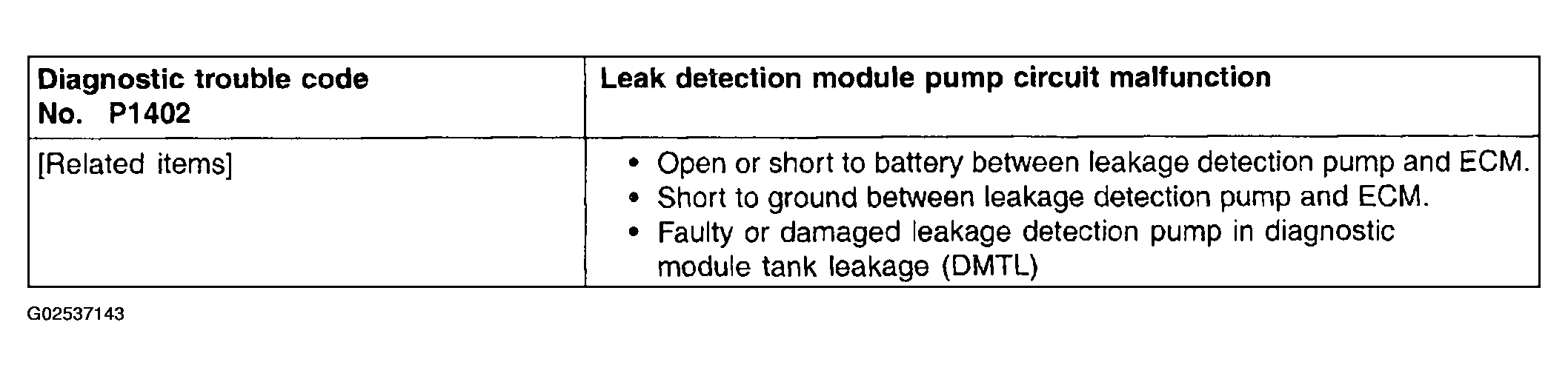

Fig 1: Problem Description
G02537143Courtesy of KIA MOTORS AMERICA, INC.

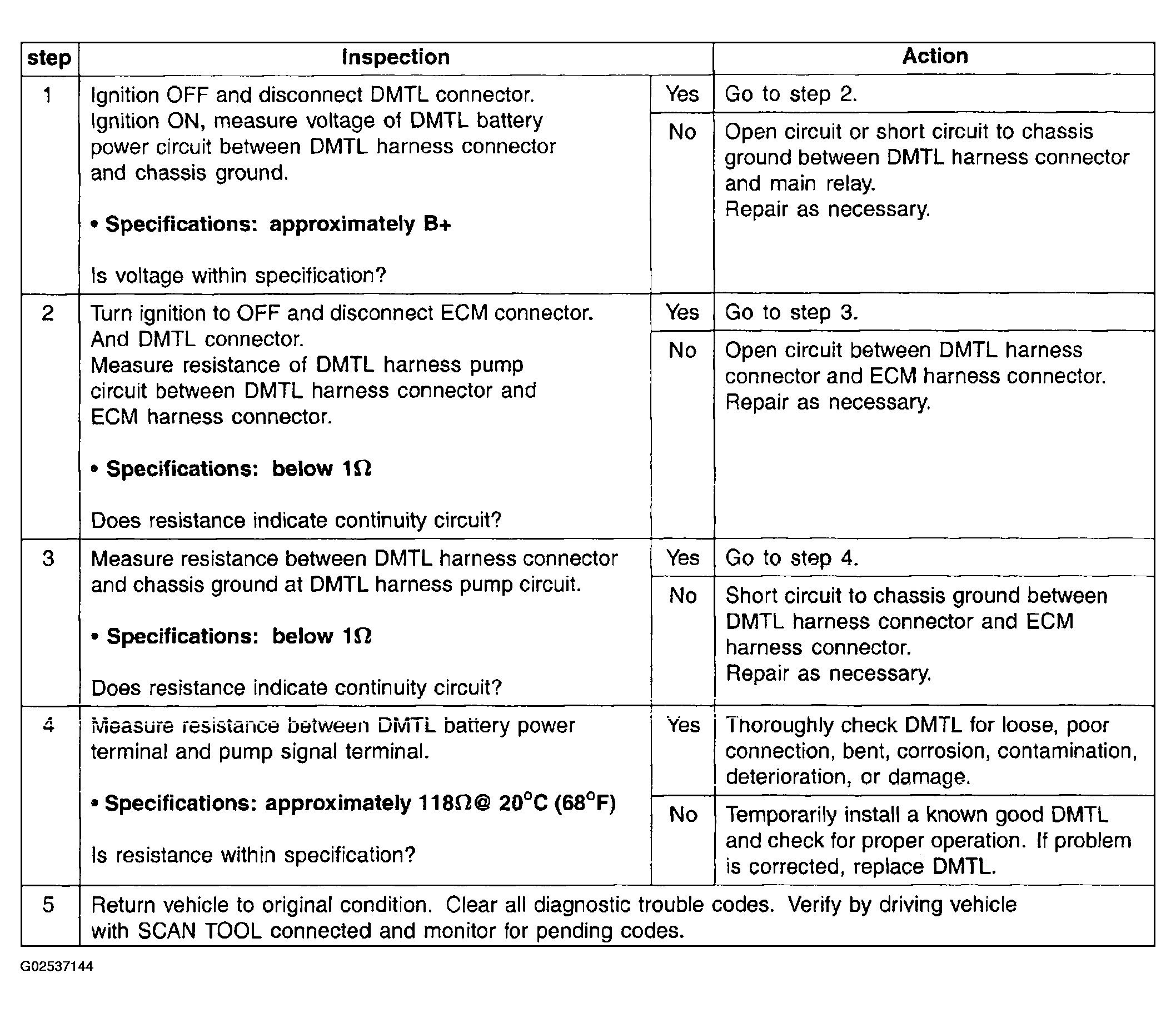

Fig 2: Inspection/Action Chart
G02537144Courtesy of KIA MOTORS AMERICA, INC.
