DTC P1403: Leak Detection Module Solenoid Valve Circuit Malfunction
DTC P1403: Leak Detection Module Solenoid Valve Circuit Malfunction

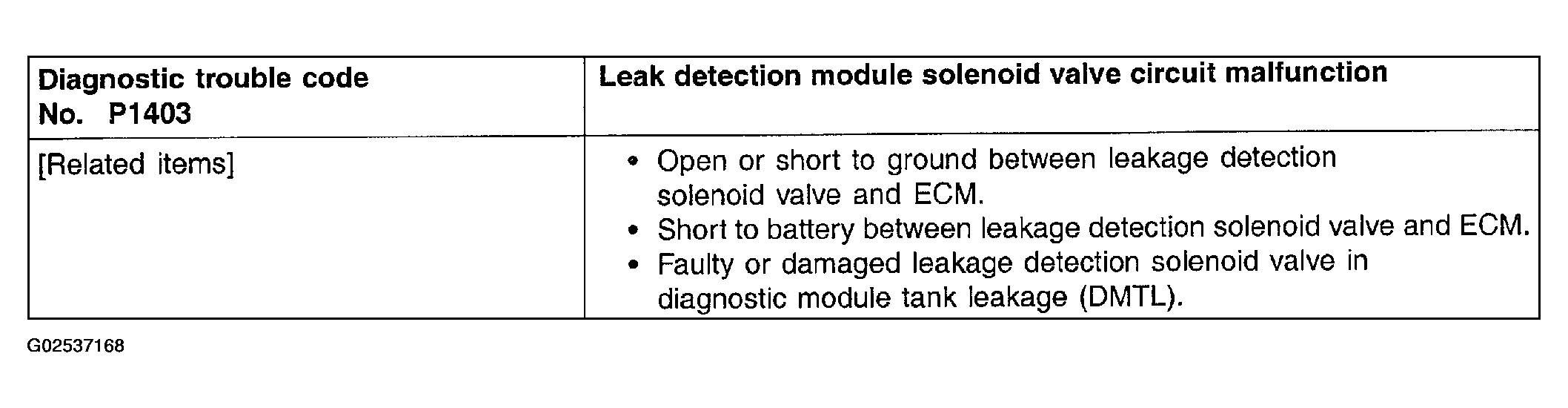

Fig 1: Problem Description
Courtesy of KIA MOTORS AMERICA, INC.

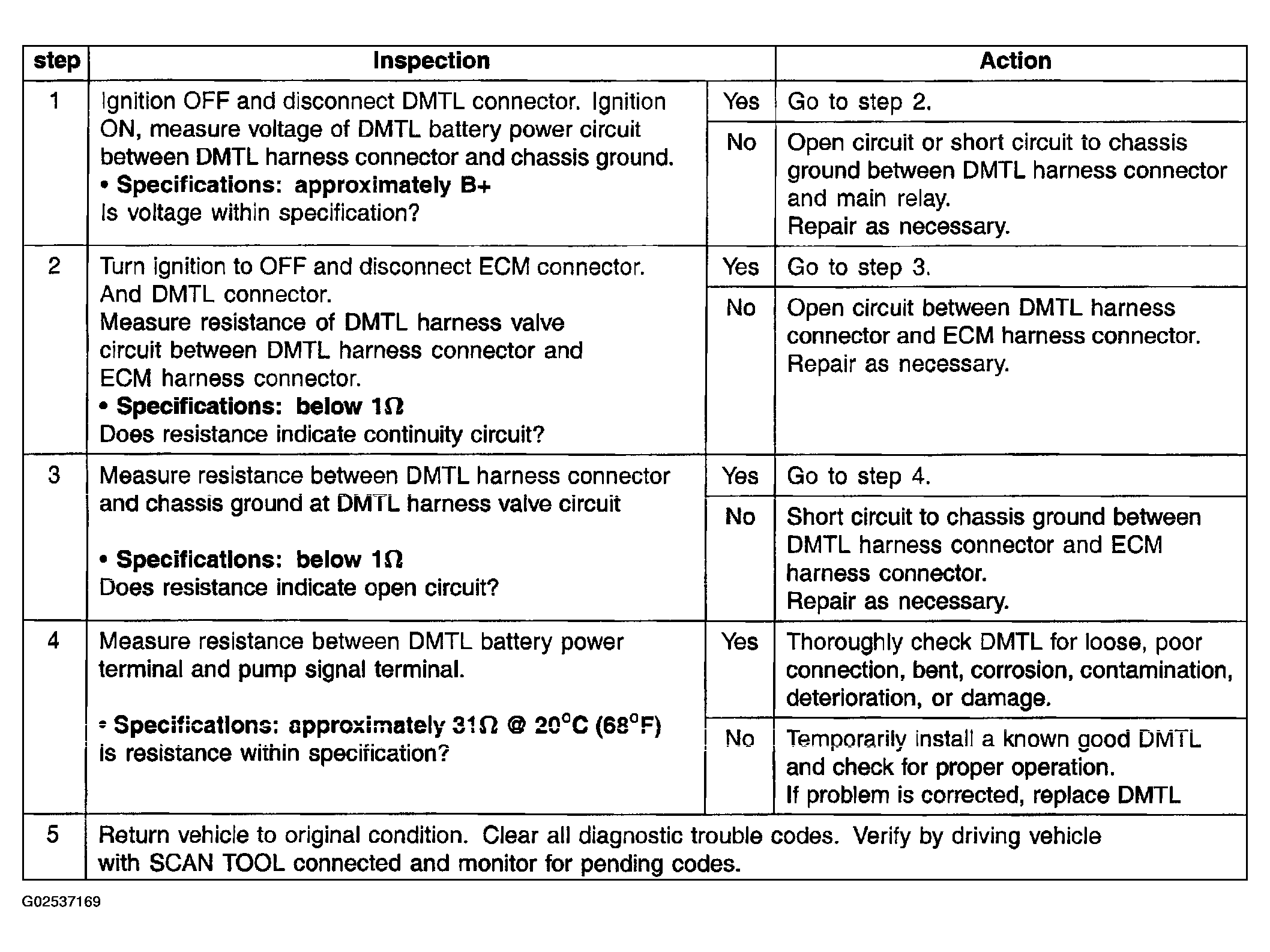

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
