DTC P1309: Chassis Acceleration Sensor Signal Low Input
DTC P1309: Chassis Acceleration Sensor Signal Low Input

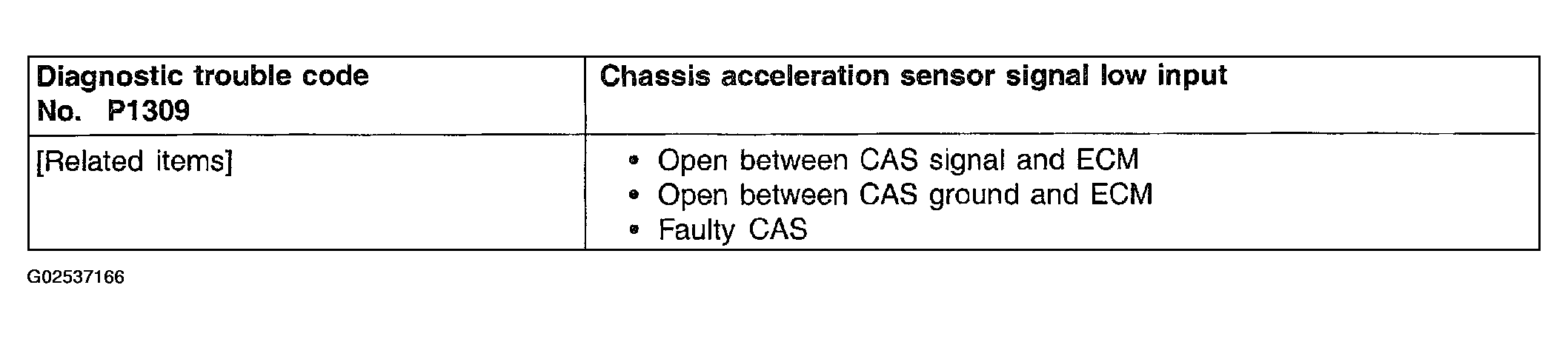

Fig 1: Problem Description
Courtesy of KIA MOTORS AMERICA, INC.

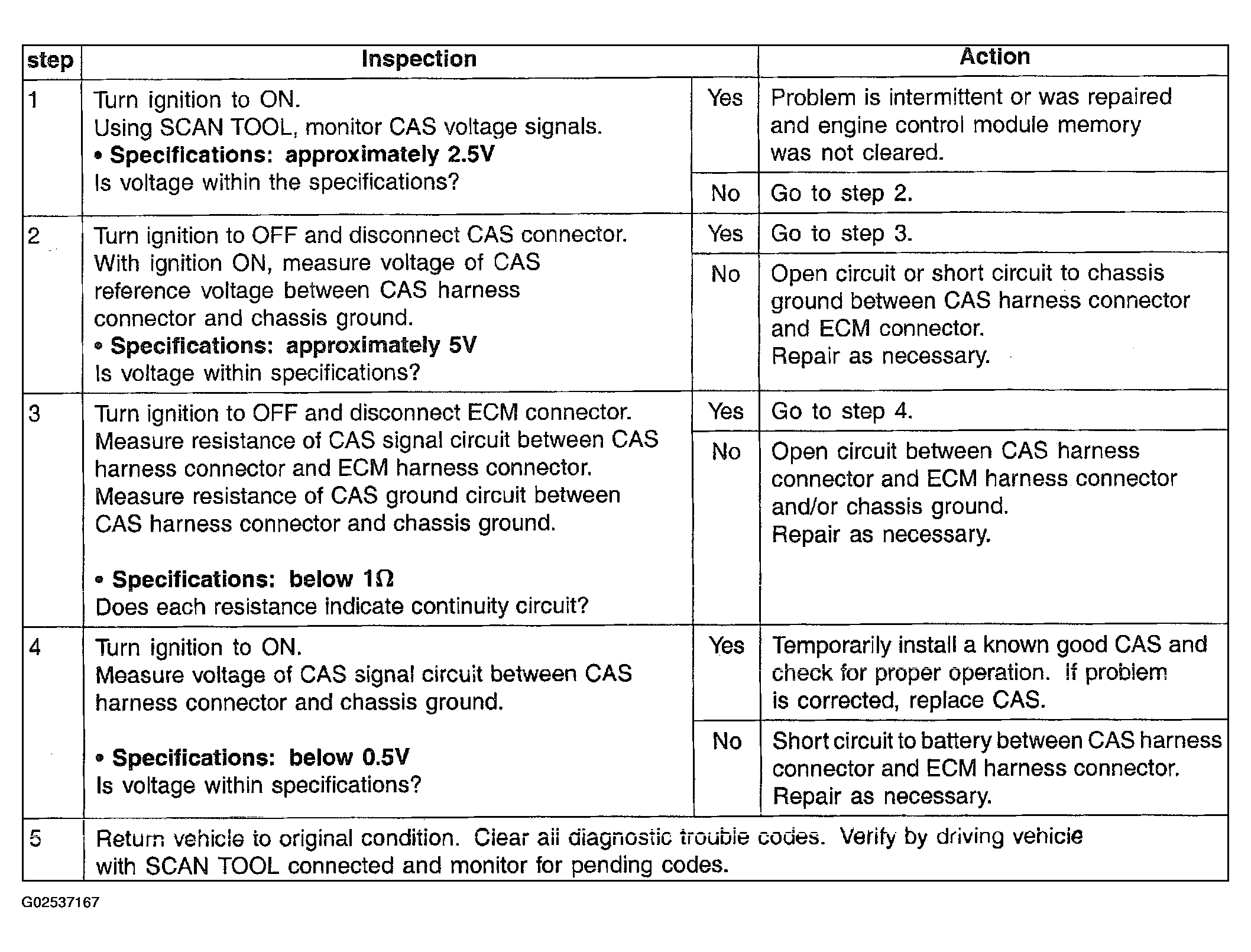

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
