Electronic Time & Alarm Control System: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver' slower crash panel. See CRASH PAD.
  3. Disconnect the ETACM connectors (B).
  4. Loosen the connector mounting bolts (A).

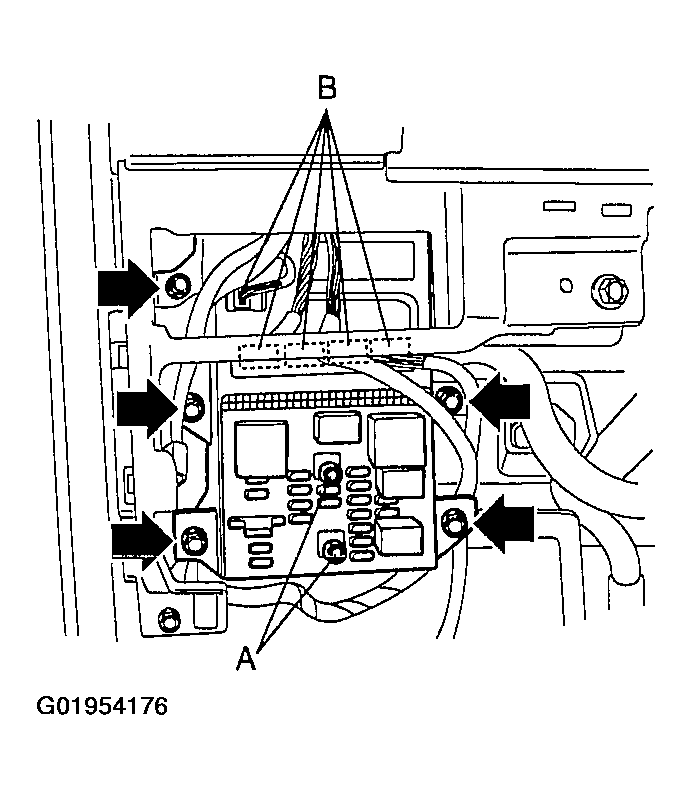

    Fig 1: Loosening The Connector Mounting Bolts
    G01954176Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the mounting bolts
  6. Remove the ETACM (A) after disconnecting the connector.

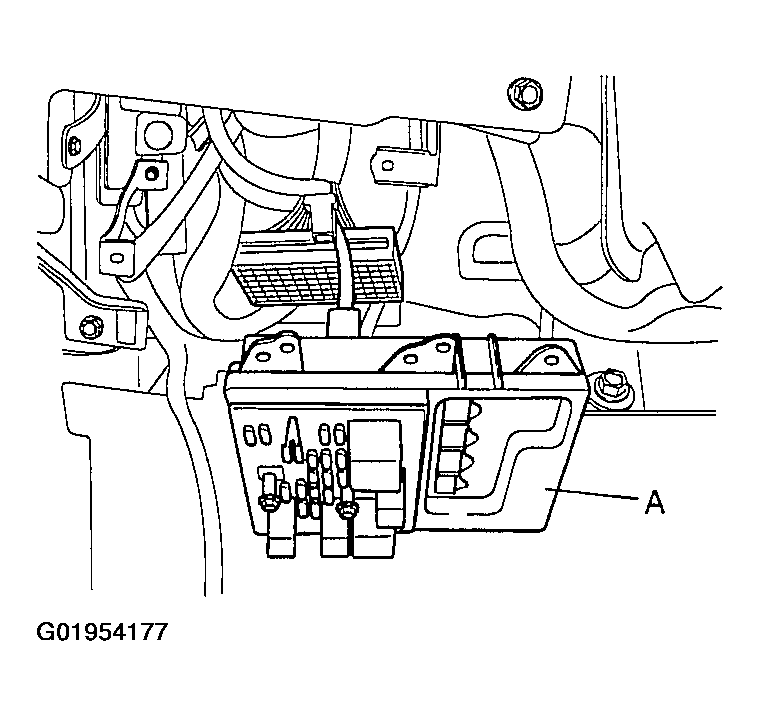

    Fig 2: Removing The ETACM
    G01954177Courtesy of KIA MOTORS AMERICA, INC.
  7. Installation is the reverse of removal procedures.
