Rear Strut: Components

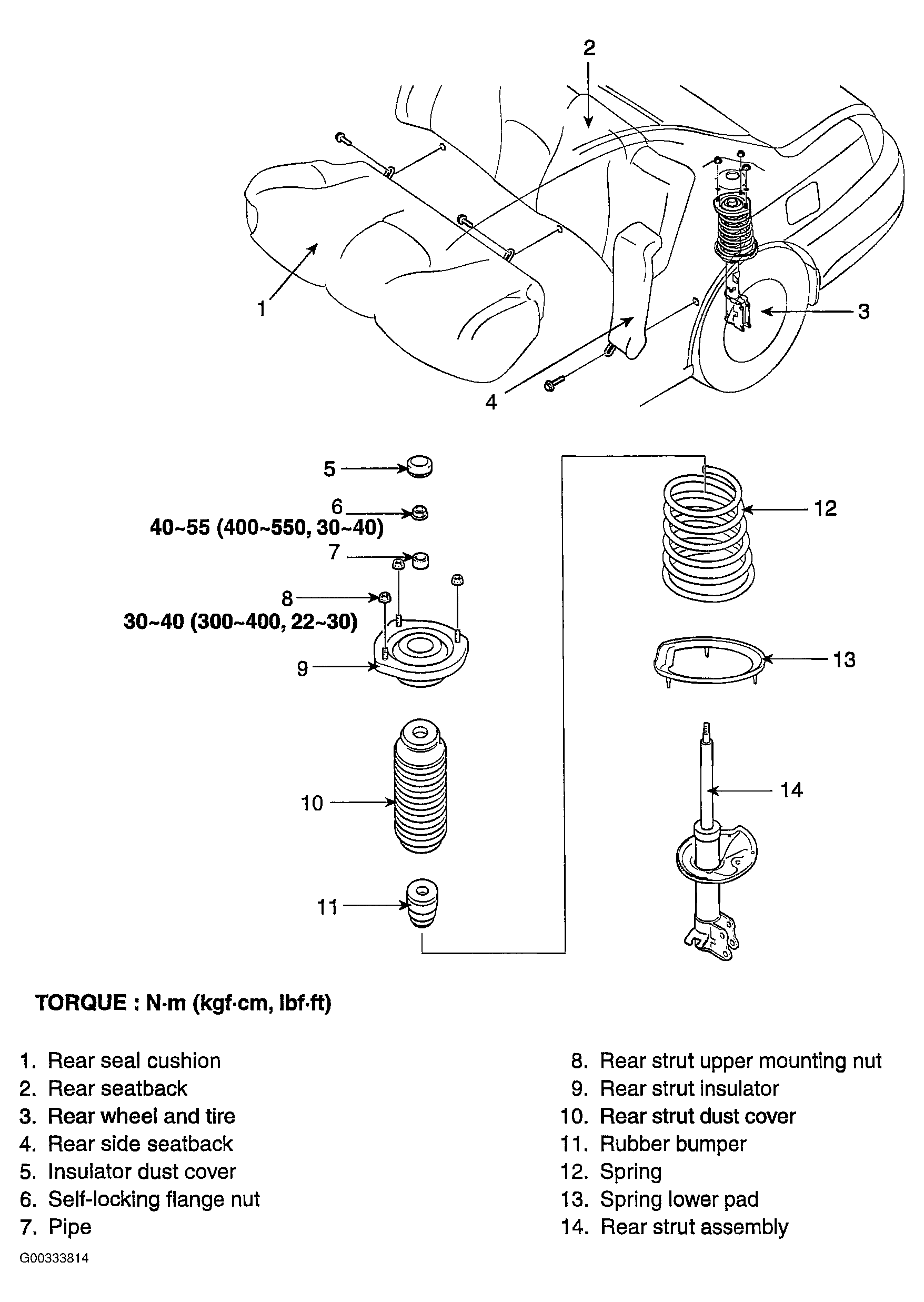

Fig 1: Exploded View Of Rear Strut With Torque Specifications

G00333814

Courtesy of KIA MOTORS AMERICA, INC.
