Strut Assembly: Removal

  1. Remove the front wheel and tire.
    2. NOTE: Do not apply excessive force to the components.

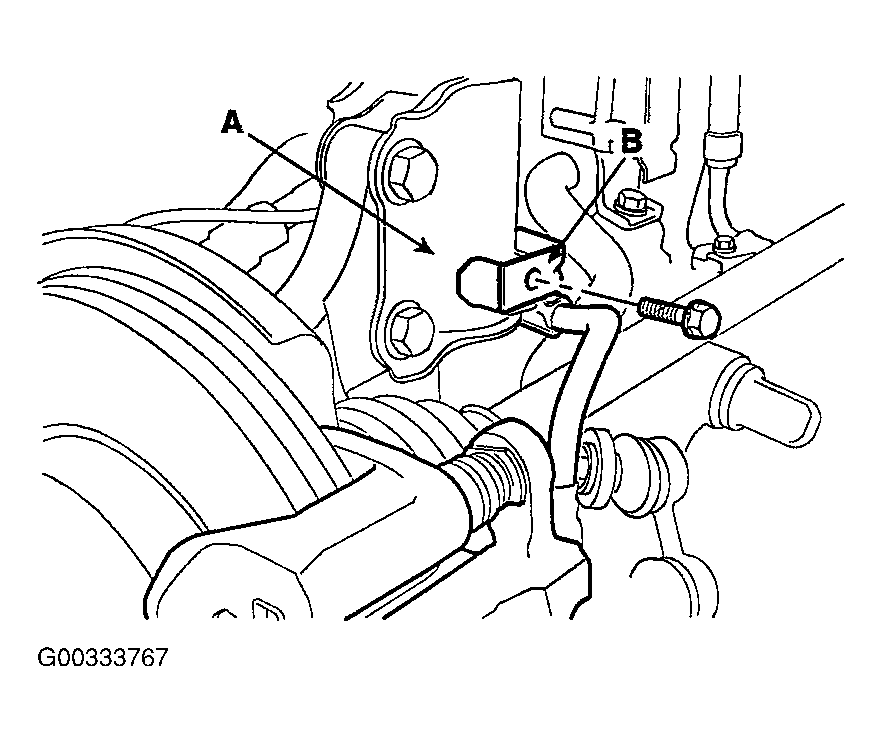

    Fig 1: Identifying Front Brake Hose Bracket
    G00333767Courtesy of KIA MOTORS AMERICA, INC.
  2. Detach the brake hose bracket (B) from the front strut assembly (A).
  3. In case of the vehicles equipped with Anti-lock Brake system, remove the wheel speed sensor (A) from the knuckle (B).

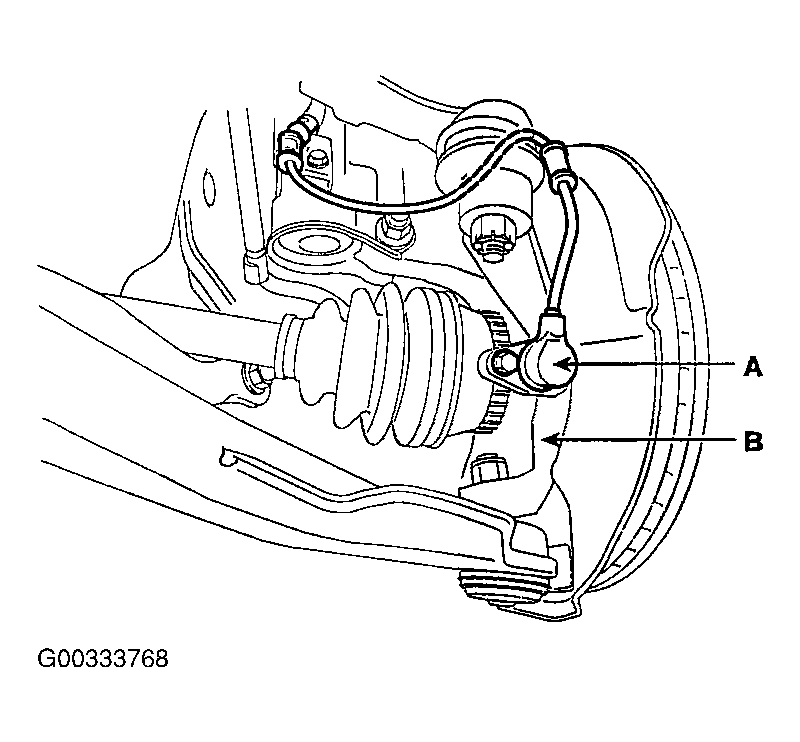

    Fig 2: Locating Front Wheel Speed Sensor
    G00333768Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the strut upper mounting nuts (A).
    Fig 3: Locating Strut Upper Mounting Nuts
    G00333769Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the strut lower mounting bolts (A) and then remove the strut assembly (B).

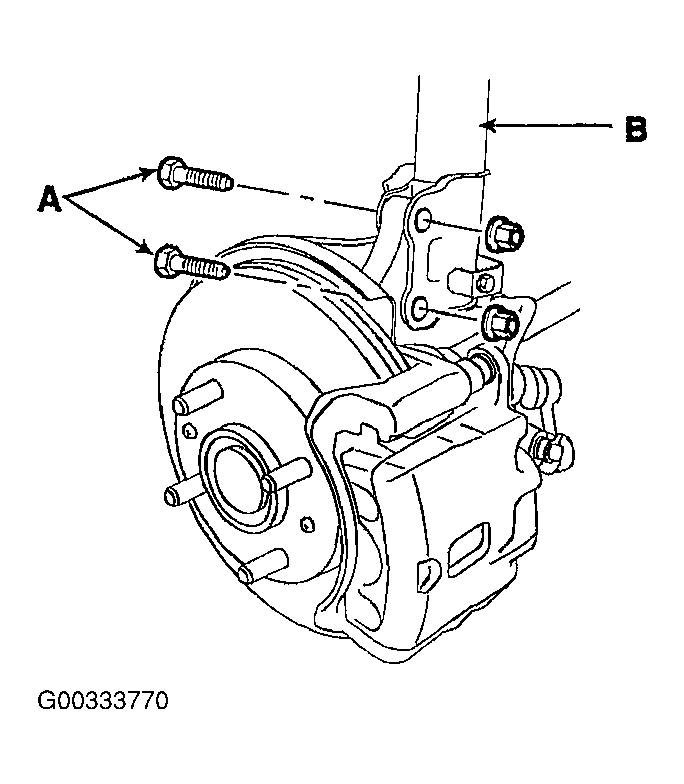

Fig 4: Locating Strut Lower Mounting Bolts/Nuts
G00333770Courtesy of KIA MOTORS AMERICA, INC.
