Checking Power Steering Belt Tension

  1. Press the V belt, applying a pressure of 98N (10kg, 22lb) at the specified point and measure the deflection to confirm that it is within the standard value.

    Standard value

    V belt deflection : 6-9 mm (0.24-0.35 in)

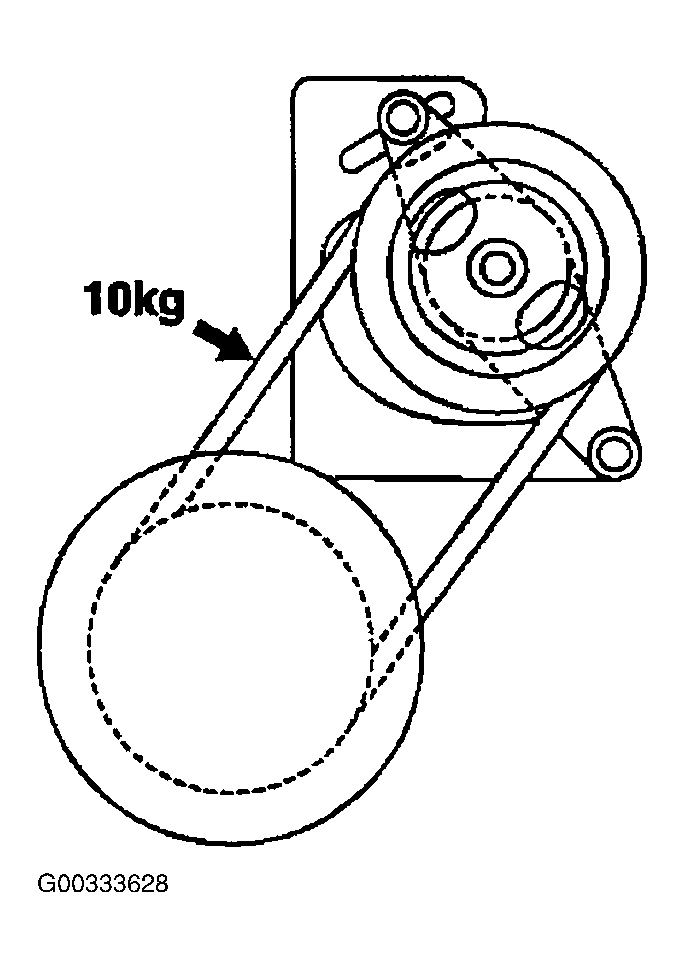

    Fig 1: Checking Power Steering Belt Tension
    G00333628Courtesy of KIA MOTORS AMERICA, INC.
  2. If the belt deflection is beyond the standard value, adjust the belt tension as follows.
    1. Loosen the bolt adjusting (A) the power steering "V" belt tension.

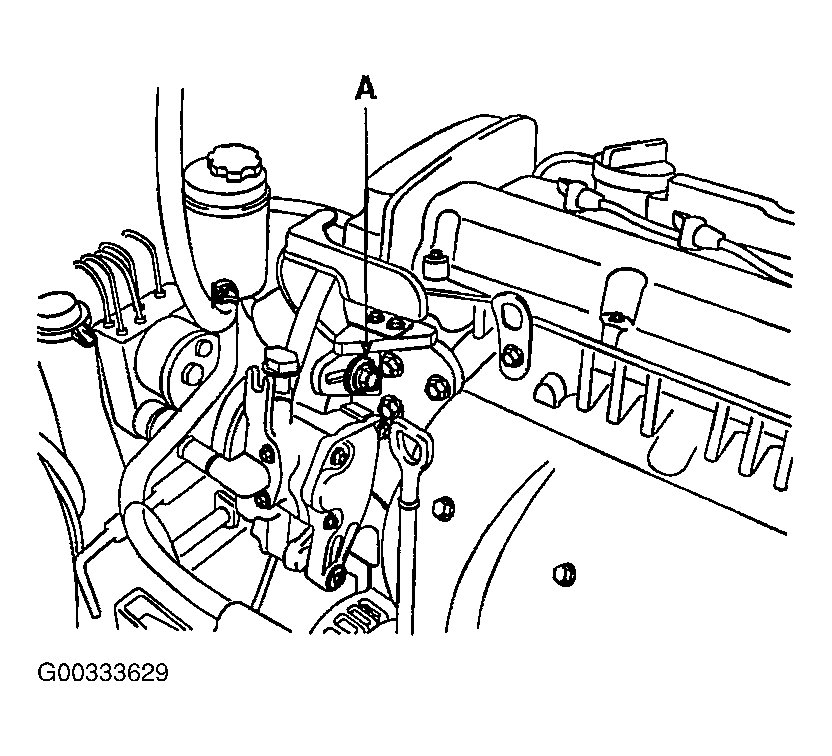

      Fig 2: Identifying Power Steering Pump Adjusting Bolt
      G00333629Courtesy of KIA MOTORS AMERICA, INC.
    2. Put a bar (A) or equivalent, between the bracket (B) and the oil pump (C) and adjust the tension so that the belt deflection is within the standard value.

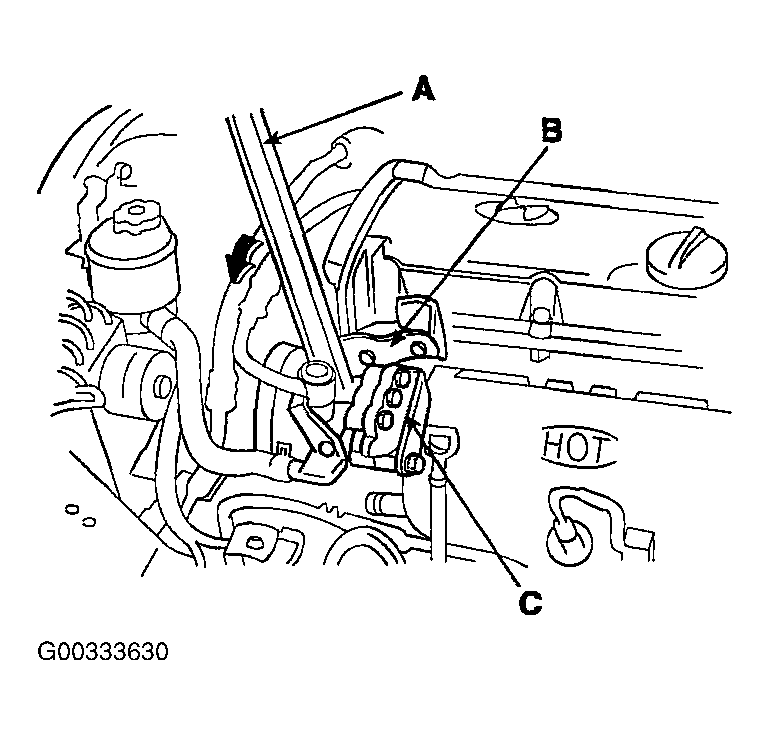

      Fig 3: Adjusting Power Steering Belt Tension
      G00333630Courtesy of KIA MOTORS AMERICA, INC.
    3. Tighten the bolt adjusting the power steering "V" belt tension.
      4. CAUTION: After turning the V belt in the normal rotation direction more than once, recheck the belt deflection.
    4. Check the belt deflection and adjust it again if necessary.
