Horn Relay Inspection

  1. Check for continuity between the terminals.
  2. There should be continuity between the No. 87 and No. 30 terminals when power and ground are connected to the No. 86 and No. 85 terminals.
  3. There should be no continuity between the No. 87 and No. 30 terminals when power is disconnected.

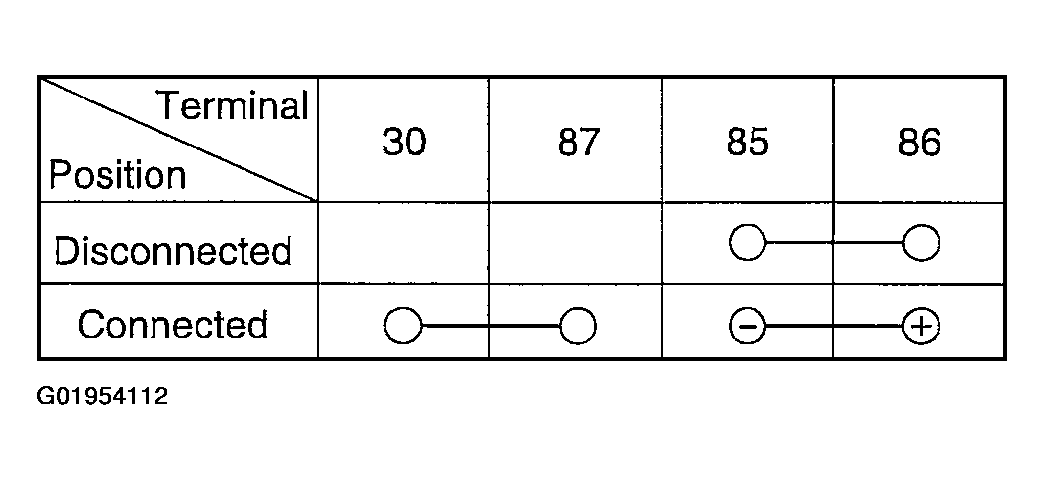

    Fig 1: Testing Relay Continuity
    G01954112Courtesy of KIA MOTORS AMERICA, INC.

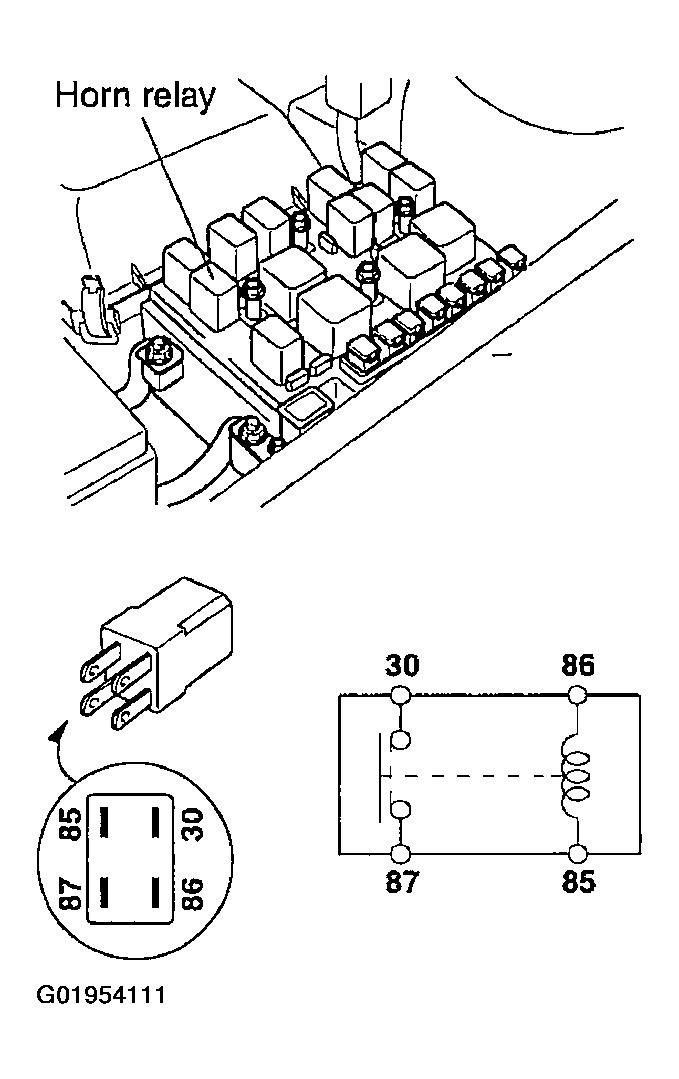

    Fig 2: Locating Horn Relay
    G01954111Courtesy of KIA MOTORS AMERICA, INC.
