Automatic Stop Operation Check

  1. Operate the motor at low speed using the stalk control.
  2. Stop the motor operation anywhere except at the off position by disconnecting terminal 1.
  3. Connect terminals 1 and 4.
  4. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 2.
  5. Check that the motor stops running at the off position.

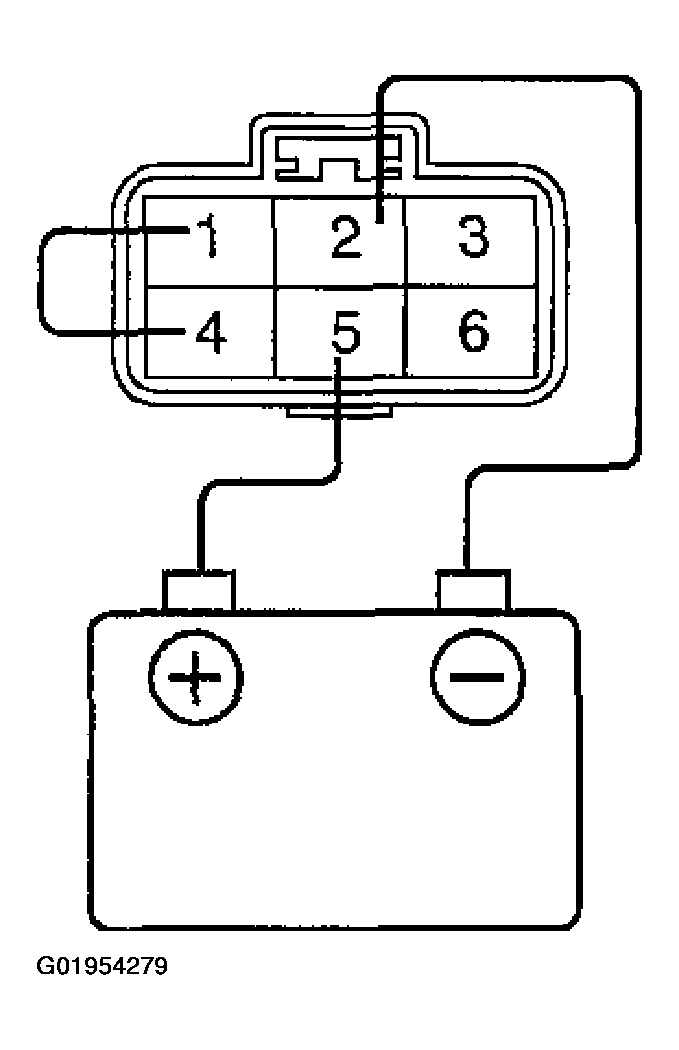

    Fig 1: Testing Automatic Stop Operation
    G01954279Courtesy of KIA MOTORS AMERICA, INC.
