Front Washer Motor: Inspection

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
Connect positive (+) and negative (-) battery cables to terminals 1 and 2 respectively to see that the washer motor runs and water sprays from the front nozzles.
Check that the motor operates normally.

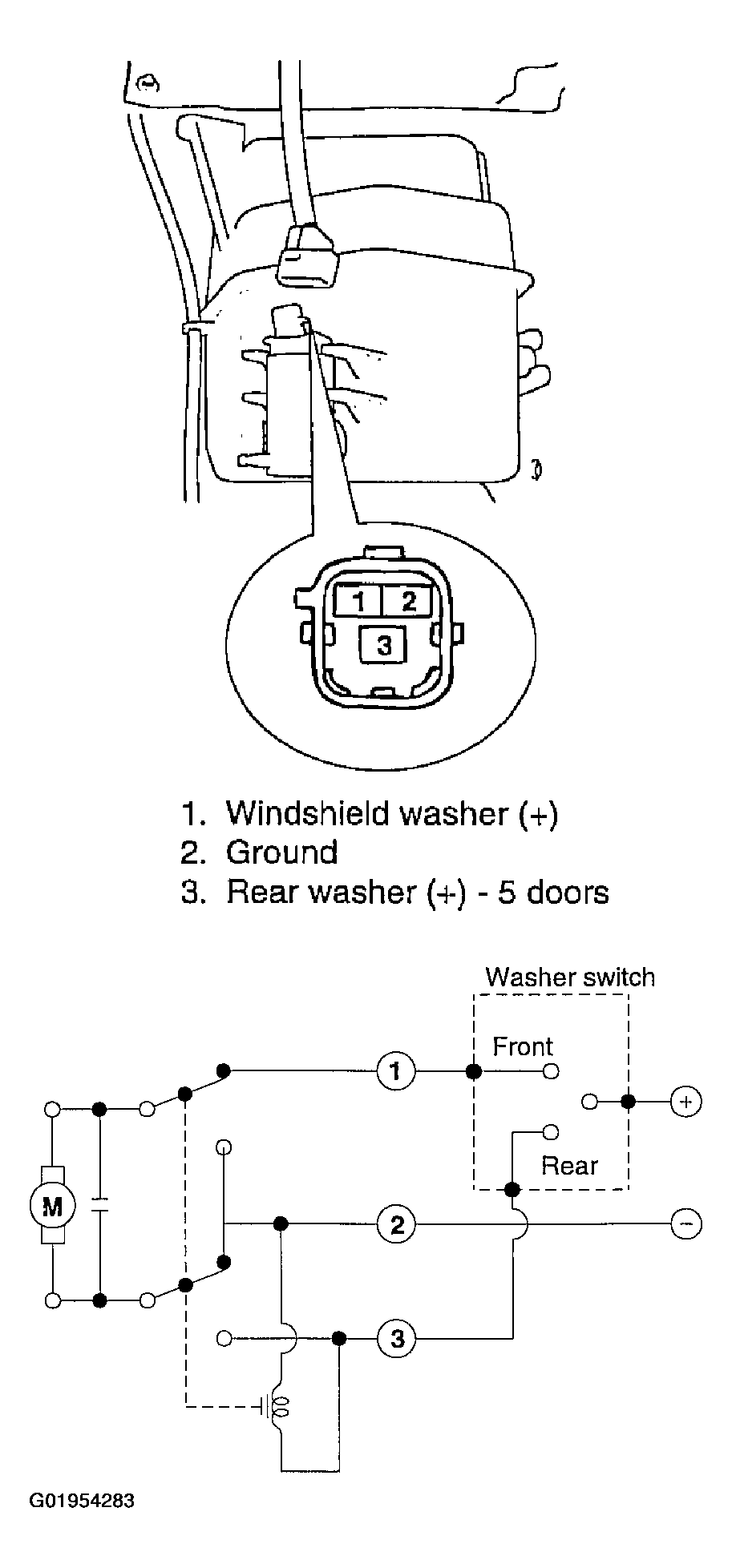

Fig 1: Illustrating Windshield & Rear Washer Motor Connector & Circuit Diagram (5 Door)
Courtesy of KIA MOTORS AMERICA, INC.

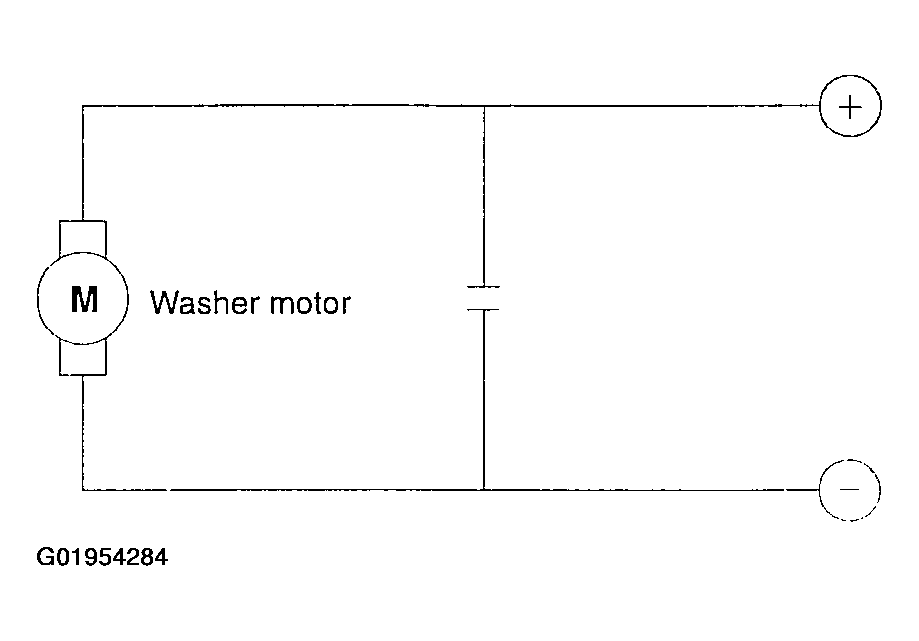

Fig 2: Illustrating Windshield & Rear Washer Motor Connector & Circuit Diagram (4 Door)
Courtesy of KIA MOTORS AMERICA, INC.
