Rear Window Defogger Switch: Inspection

  1. Remove the negative (-) battery terminal.
  2. Remove the rear window defogger switch after removing to the center crash pad.

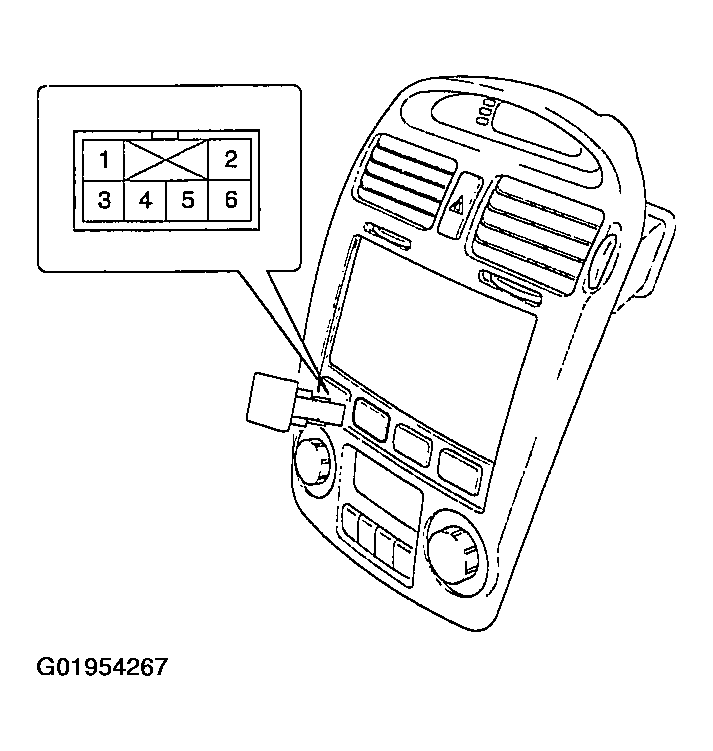

    Fig 1: Removing The Rear Window Defogger Switch
    G01954267Courtesy of KIA MOTORS AMERICA, INC.
  3. Using an ohmmeter, inspection the continuity between the terminals after removing to the switch connector.

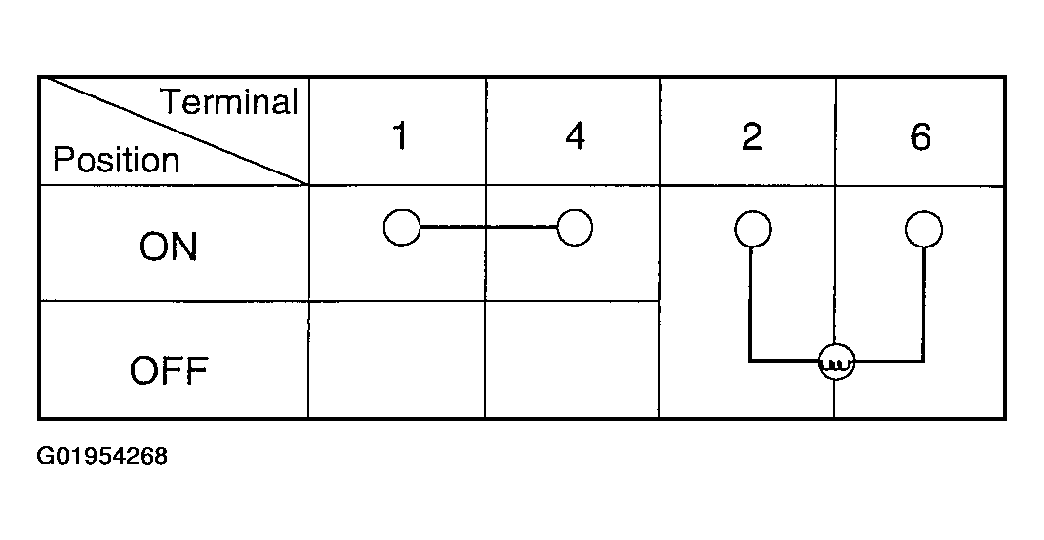

    Fig 2: Testing The Rear Window Defogger Switch Continuity
    G01954268Courtesy of KIA MOTORS AMERICA, INC.
