Rear Window Defogger Relay: Inspection

  1. Remove the negative (-) battery terminal.
  2. Remove the rear window defogger relay after removing driver side crash pad lower panel from passenger compartment.
  3. There should be continuity between the No. 30 and No. 87 terminals when power and ground are connected to the No. 85 and No. 86 terminals.
  4. There should be no continuity between the No. 30 and No. 87 terminals when power is disconnected.

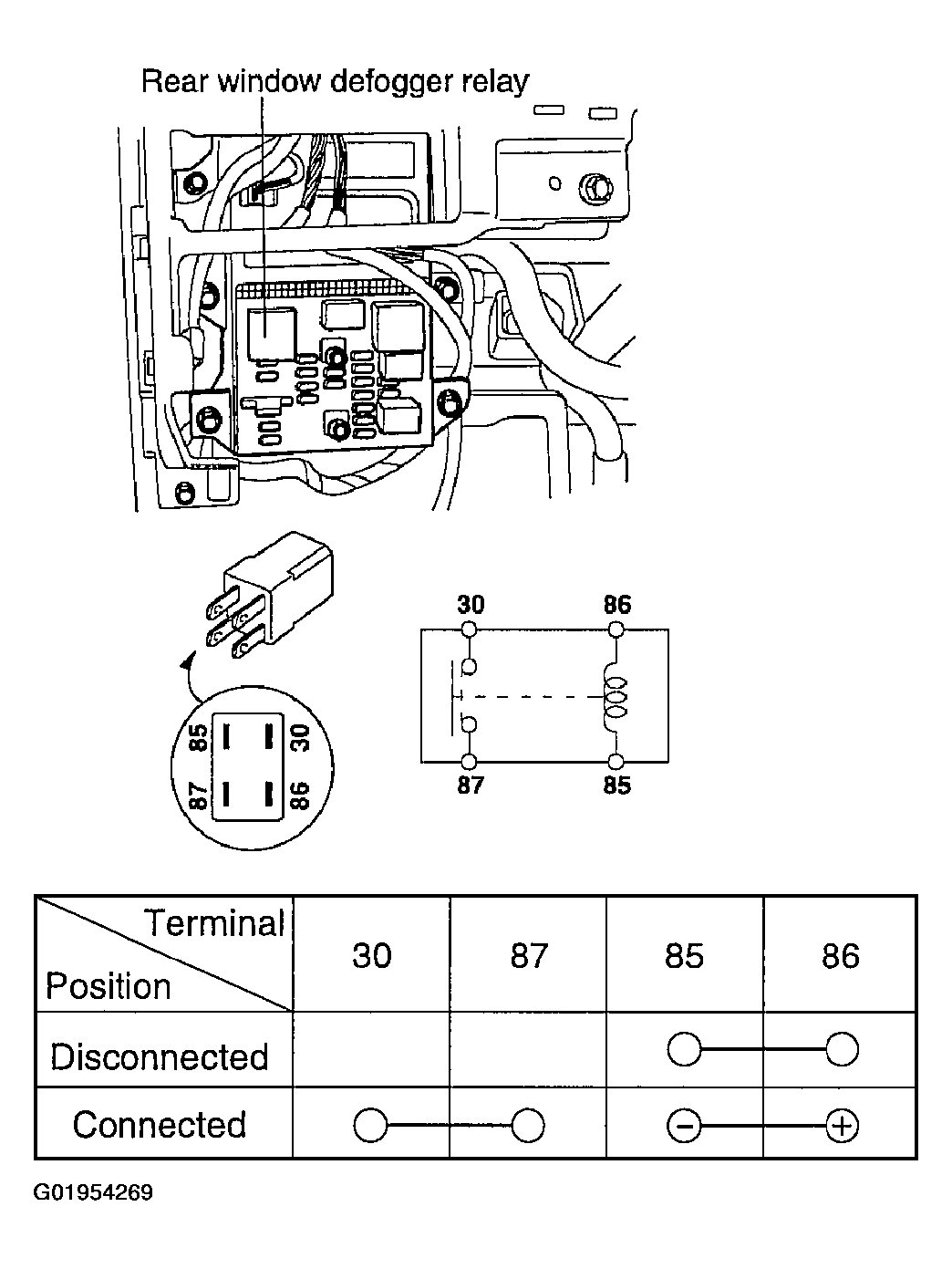

    Fig 1: Testing Rear Window Defogger Relay Continuity
    G01954269Courtesy of KIA MOTORS AMERICA, INC.
