Input-Output Specification

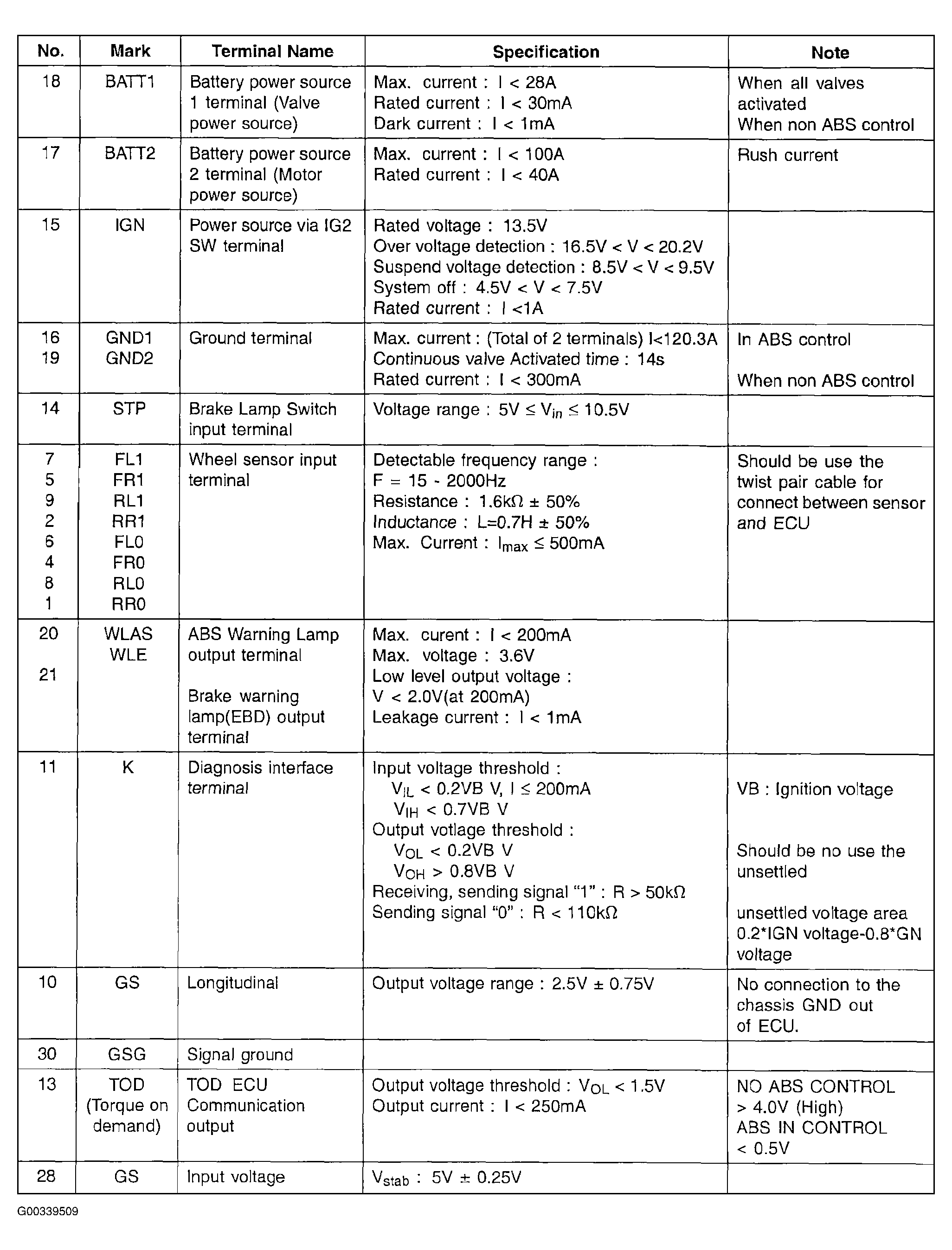

Fig 1: HECU Terminal Pin Input-Output Specifications

G00339509

Courtesy of KIA MOTORS AMERICA, INC.
