Kia
>>
2004
>>
Sorento LX, RWD, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Abs (Anti-Lock Brake System)
>>
Abs (Anti-Lock Brake System)
>>
System Diagram
System Diagram

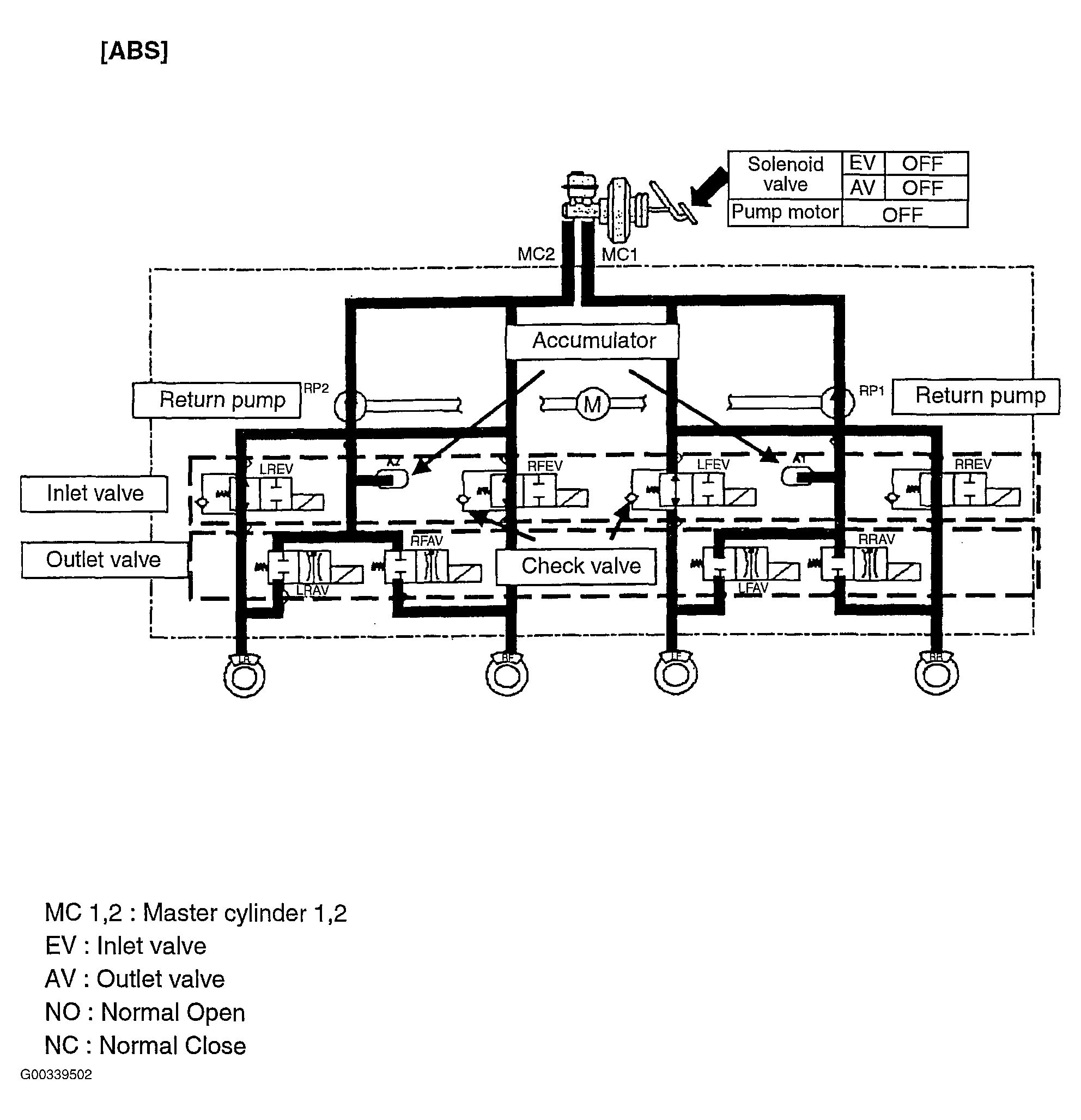

Fig 1: ABS System Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
