Throttle Position Sensor (TPS)
>>
Harness Inspection Procedures
Harness Inspection Procedures

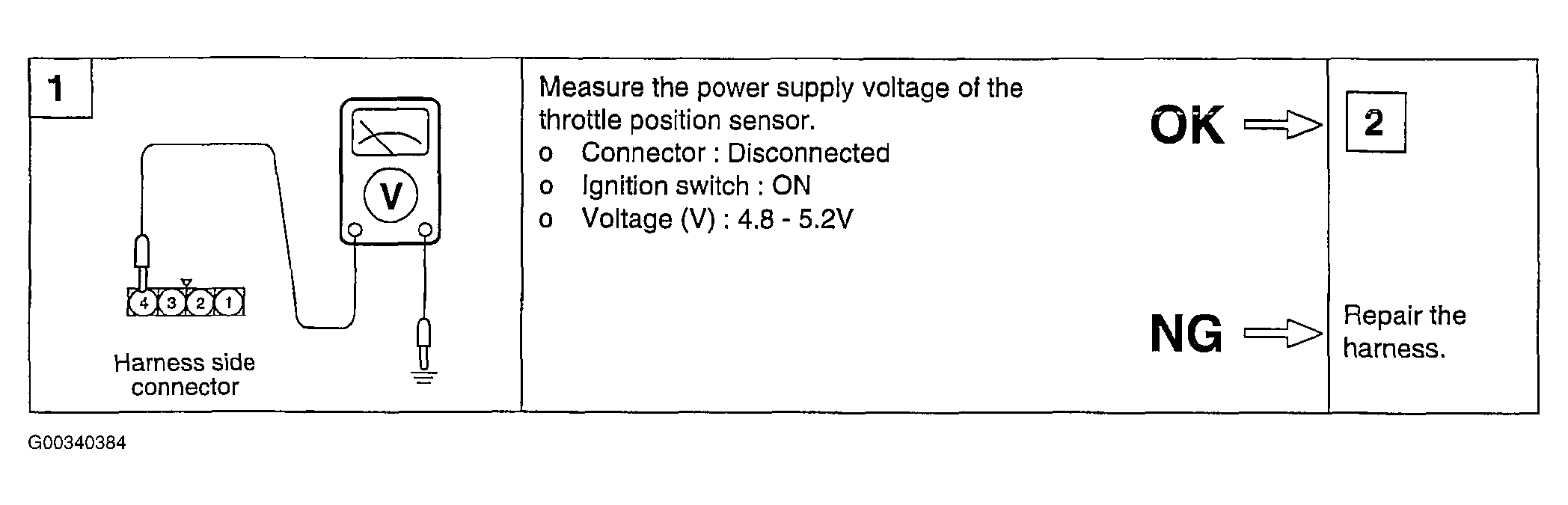

Fig 1: TPS Harness Inspection Procedure No. 1
Courtesy of KIA MOTORS AMERICA, INC.

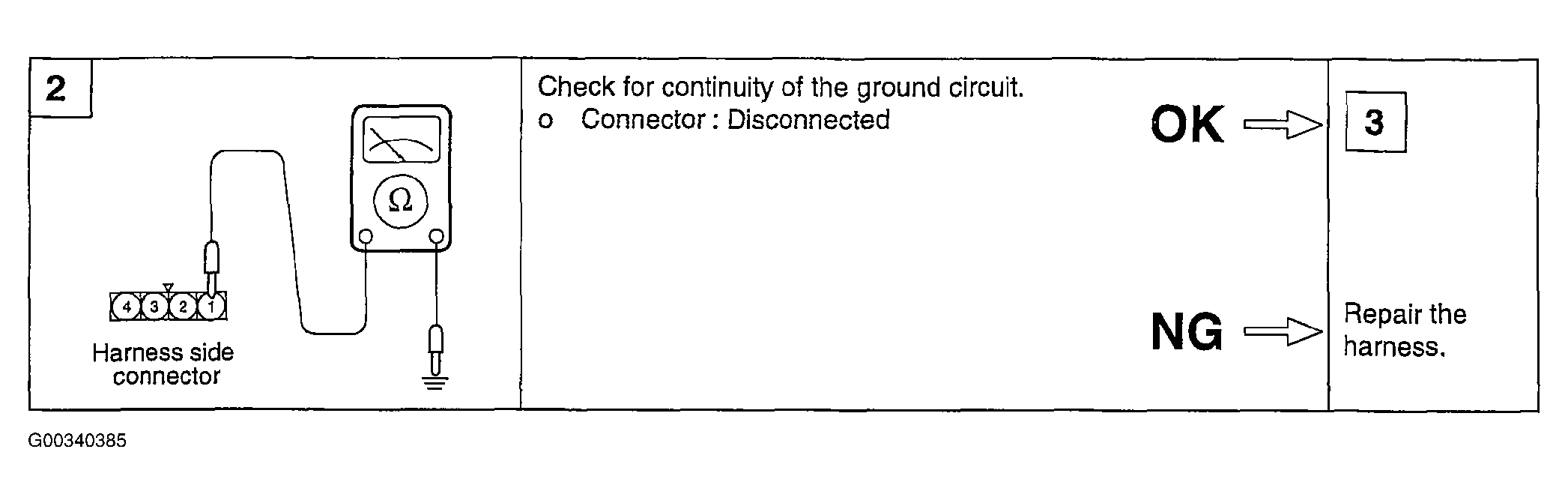

Fig 2: TPS Harness Inspection Procedure No. 2
Courtesy of KIA MOTORS AMERICA, INC.

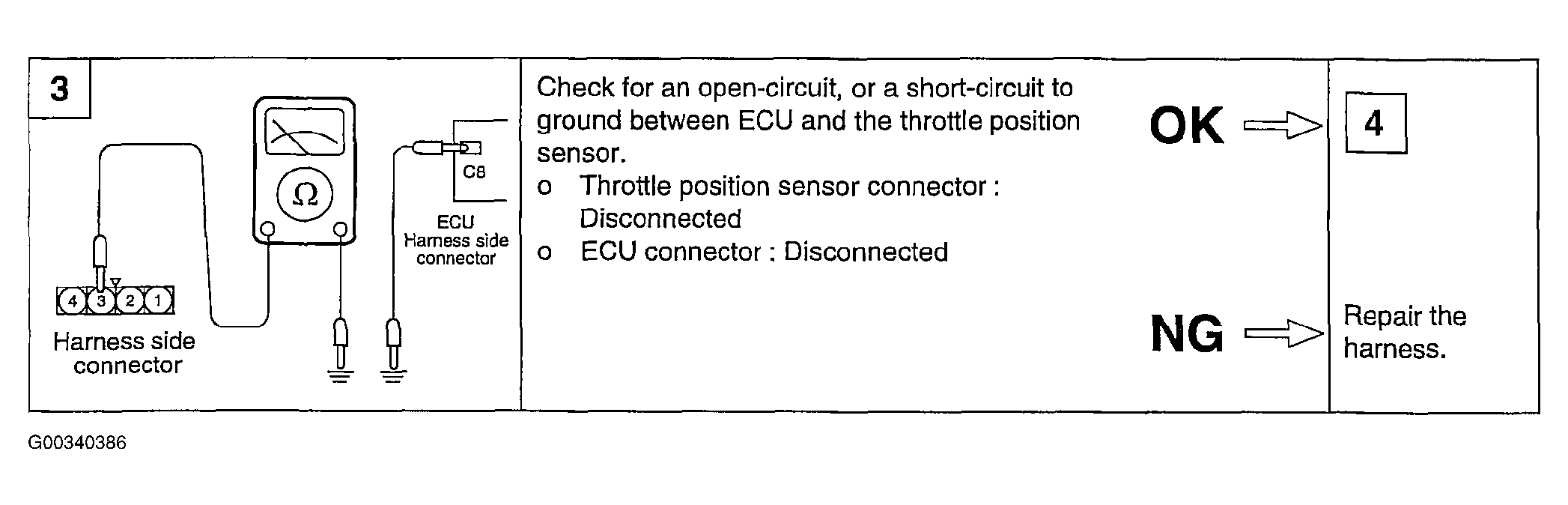

Fig 3: TPS Harness Inspection Procedure No. 3
Courtesy of KIA MOTORS AMERICA, INC.

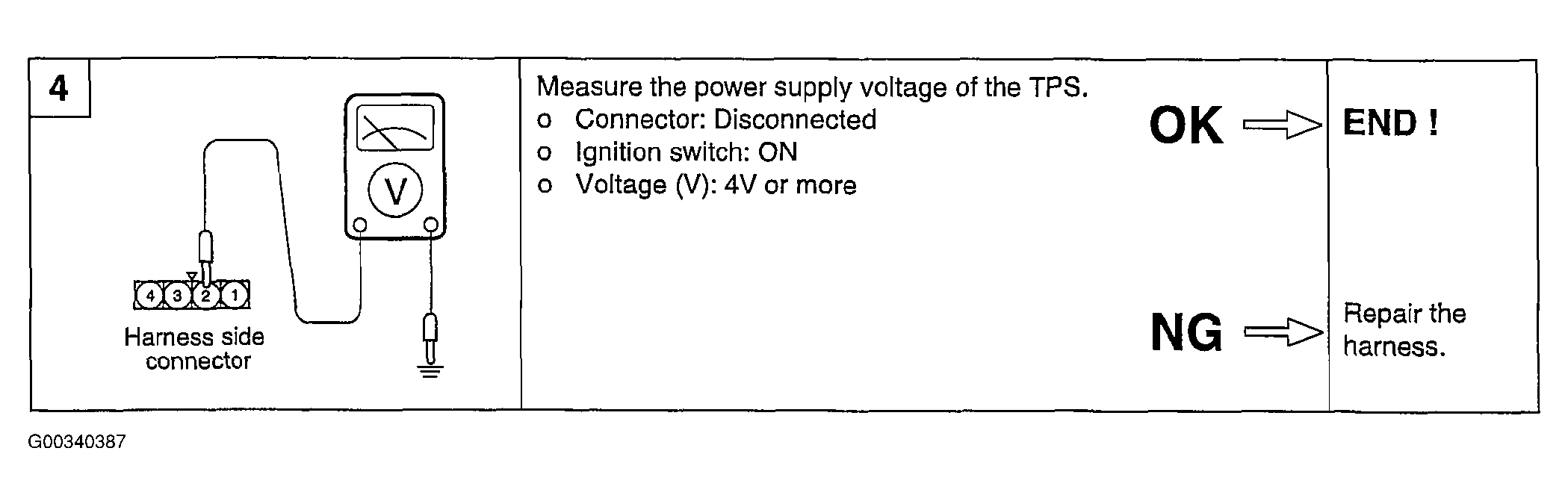

Fig 4: TPS Harness Inspection Procedure No. 4
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
