Harness Inspection Procedure

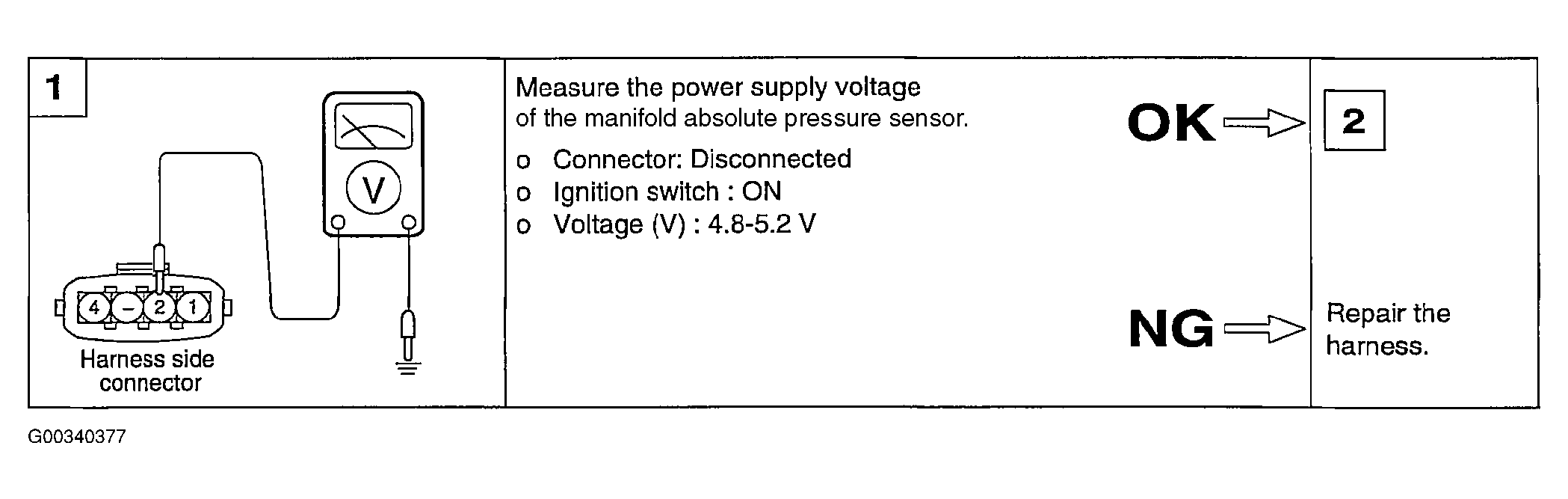

Fig 1: MAP Sensor Harness Inspection Procedure No. 1
G00340377Courtesy of KIA MOTORS AMERICA, INC.

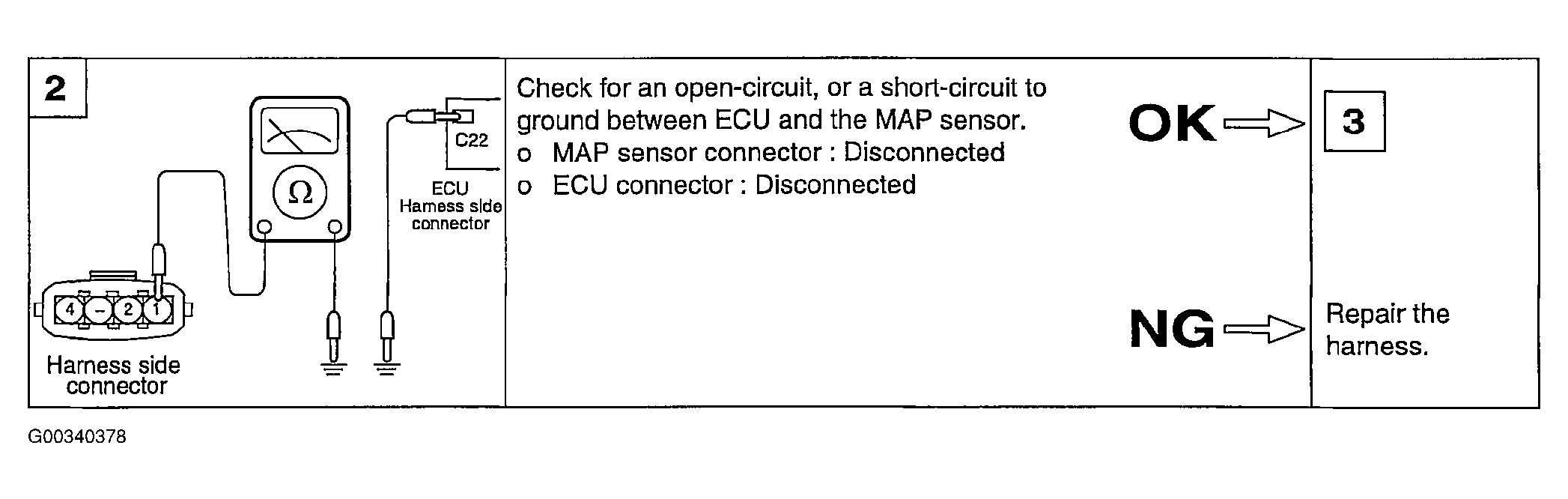

Fig 2: MAP Sensor Harness Inspection Procedure No. 2
G00340378Courtesy of KIA MOTORS AMERICA, INC.

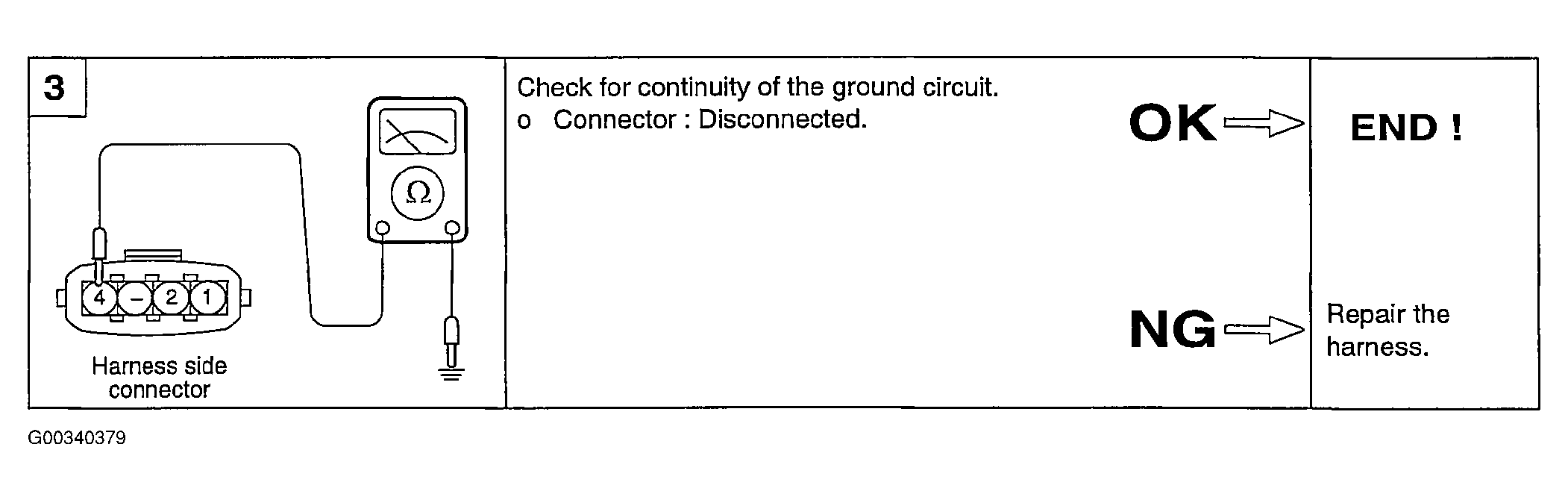

Fig 3: MAP Sensor Harness Inspection Procedure No. 3
G00340379Courtesy of KIA MOTORS AMERICA, INC.
