Location Of MFI Components

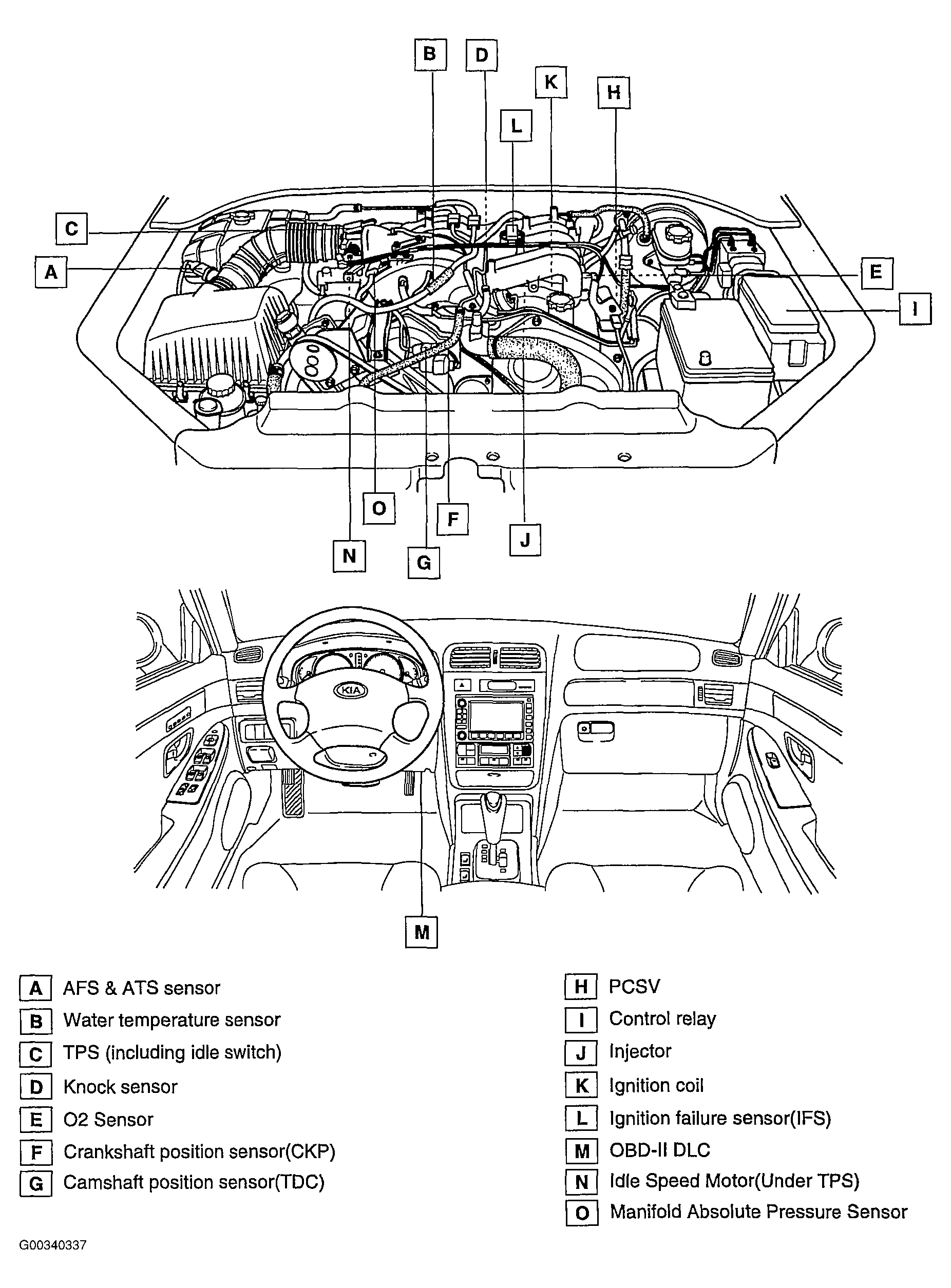

Fig 1: Identifying Location Of Fuel System Components
G00340337Courtesy of KIA MOTORS AMERICA, INC.

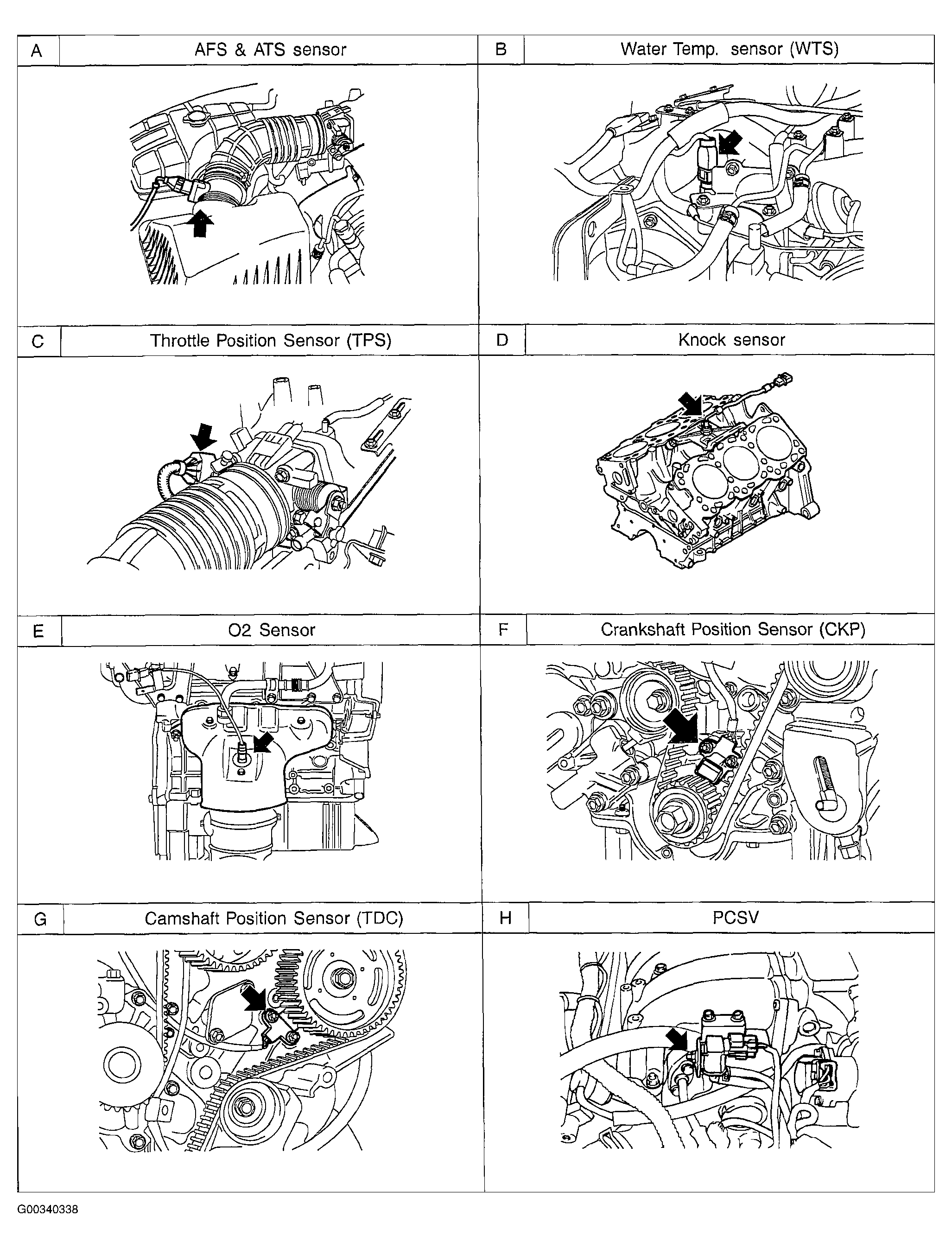

Fig 2: Detailed View Of Fuel System Components (1 Of 2)
G00340338Courtesy of KIA MOTORS AMERICA, INC.

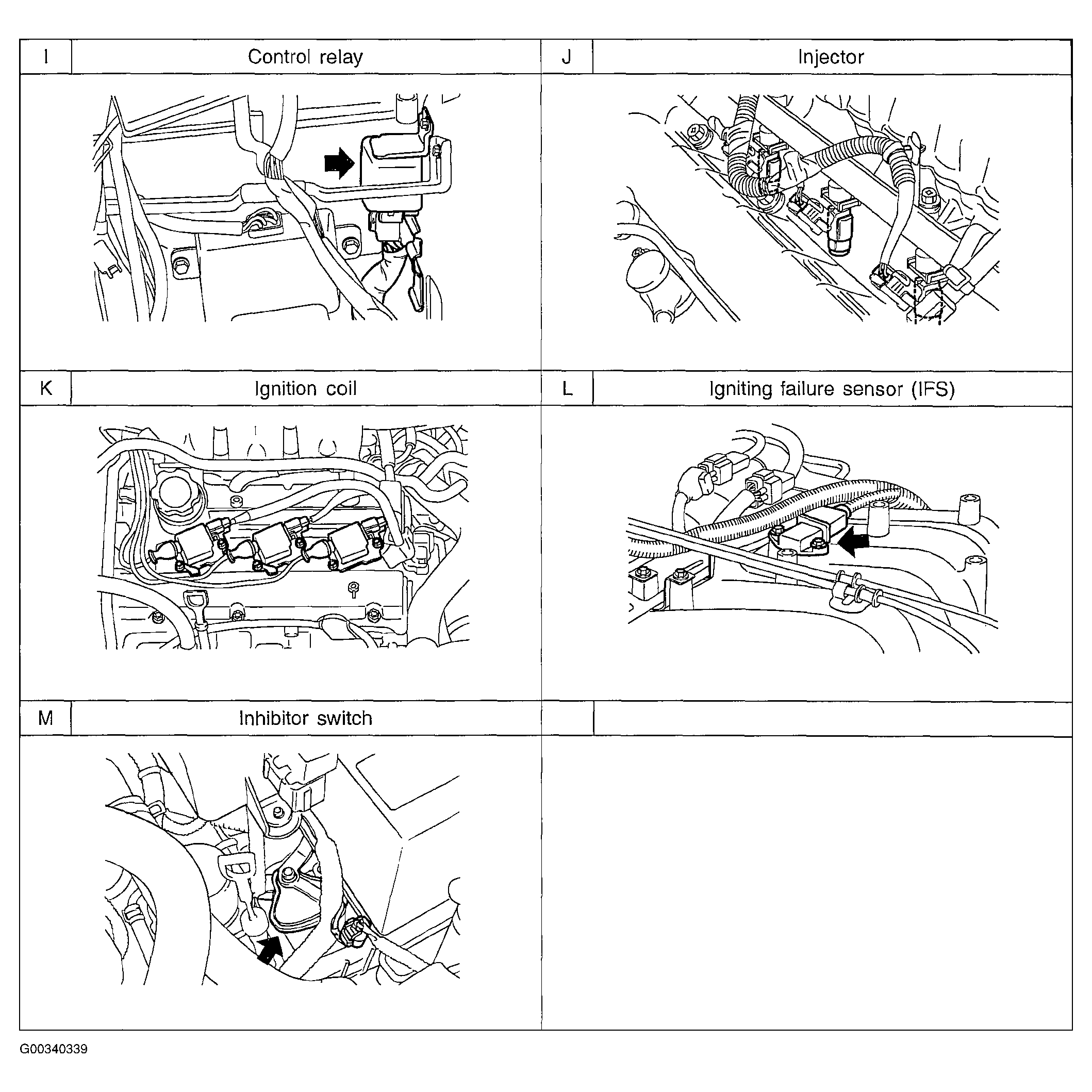

Fig 3: Detailed View Of Fuel System Components (2 Of 2)
G00340339Courtesy of KIA MOTORS AMERICA, INC.
